Sheet Stamping Line Mechanical Erfurt PKZVIV500

Lead Press :

Number of presses : 1,

total force (nominal) : 500 tons,

number of ram actions : 1,

moving bolster : yes,

Number of moving bolsters per press : 2,

frame design : H-frame,

openings in uprights : yes,

Table-size length : 2800 mm,

Table-size width : 1800 mm,

autom. tool clamping device : yes,

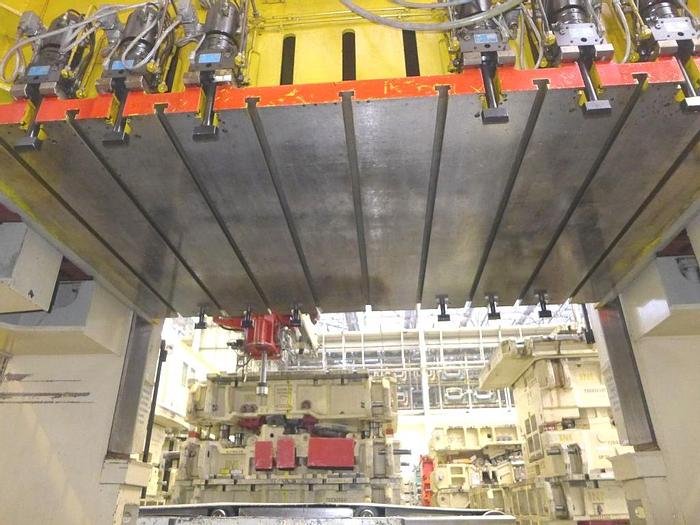

Ram length : 2800 mm,

Ram width : 1800 mm,

Ram stroke : 500 mm,

Number of strokes max : 20/min,

Ram adjustment : 500 mm,

Hydraulic overload protection : yes,

Force of cushion : 100 tons,

stroke : 200 mm,

shut height (stroke down, adjustment up) : 980 mm,

height above floor level : 7400 mm,

Secondary Presses :

Number of presses : 4,

total force (nominal) : 500 tons,

moving bolster : yes,

Number of moving bolsters per press : 2,

Table-size length : 2800 mm,

Table-size width : 1800 mm,

autom. tool clamping device : yes,

ram force : 500 tons,

Ram length : 2800 mm,

Ram width : 1800 mm,

Ram stroke : 500 mm,

Number of strokes max : 20/min,

Ram adjustment : 500 mm,

Hydraulic overload protection : yes,

Force of cushion : 100 tons,

Stroke : 200 mm,

Shut height (stroke down, adjustment up) : 980 mm,

Technical Description :

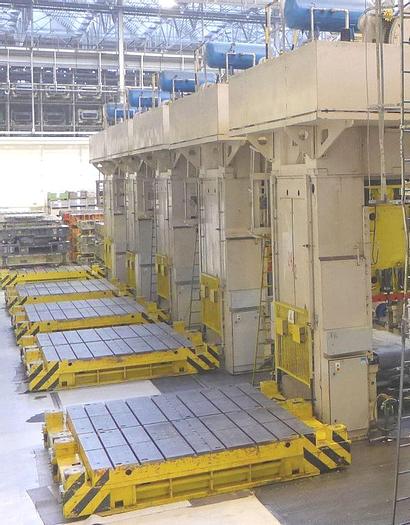

Line of mechanical presses consisting of :

5 (five) units ERFURT PKZV IV 500 TS each having 2 moving bolsters.

All presses are equipped with die cushion and tool clamping device.

PLC Control.

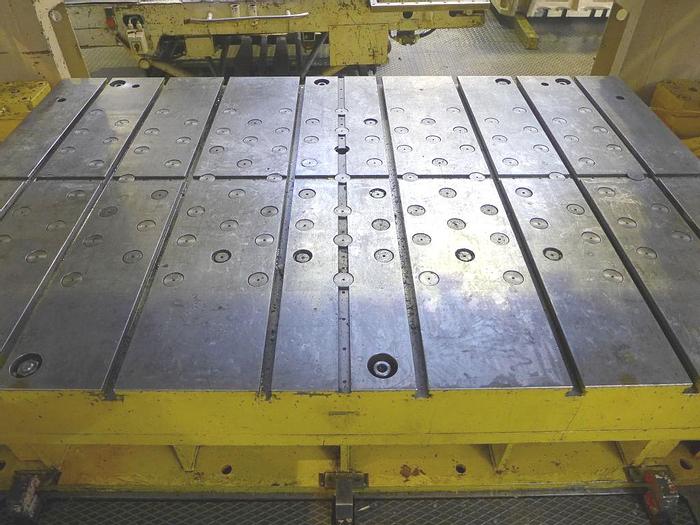

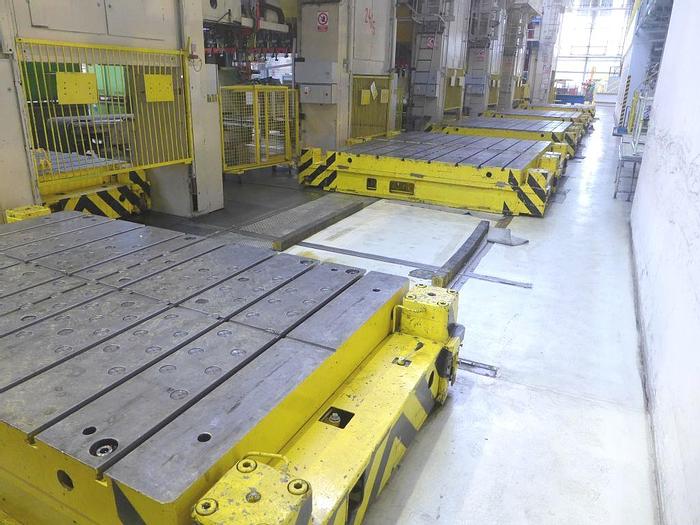

T-Type moving bolster.

Each press has two (2) tables.

Hydraulic overload safety device.

Hydraulic clamping device.

20 (Twenty) strokes per minute.

Slide / Guideways in top condition shortest immediately available.

And can be shipped within shortest time.

Revised: 2005
