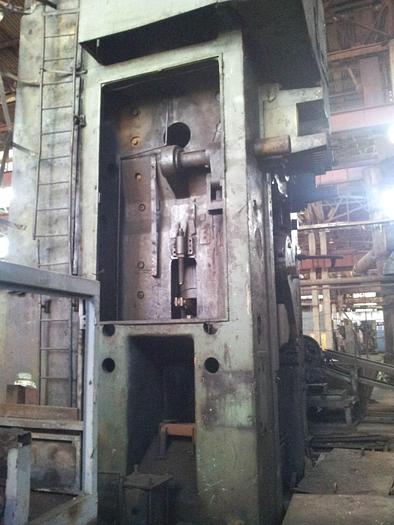

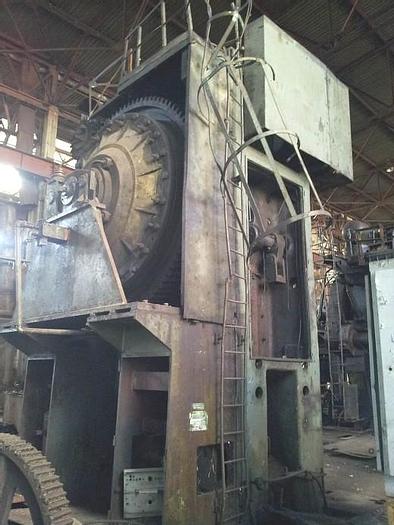

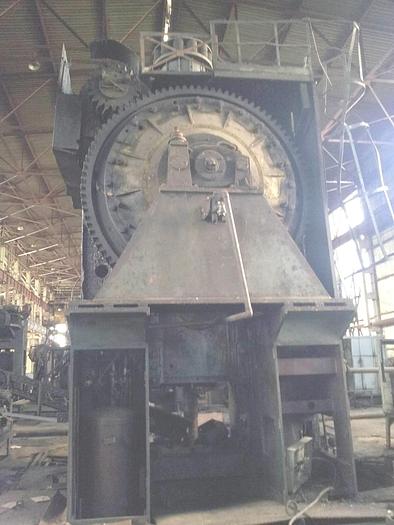

Press Hot Forging LZK4000S

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSmeral,Czech
ModelLZK4000S
Year1974
ConditionUsed
Stock NumberMA0534
Item conditionGood Condition
Capacity tons4000

Description

Capacity : 4000 tons,

Ram stroke : 380 mm,

Number of ram strokes : 60/1 min,

Width between uprights : 1580 mm,

Shut height : 1000 mm,

Ram adjustment : 20 mm,

Table size : 1520 x 1600 mm,

Slide size : 1470 x 1400 mm,

Stroke of upper ejector : 50 mm,

Jecting force of upper ejector : 105 kN,

Stroke of lower ejector : 80 m,,

Ejecting force of lower ejector : 410 kN,

Press height above floor : 8100 mm,

Press dimensions :

Height : 9150 mm,

Width : 4720 mm,

Length : 4640 mm,

Main drive motor output : 200 KW,

Press weight : 250 tons.

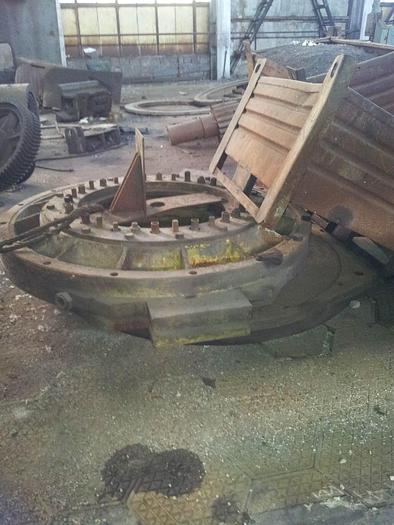

The brake body and discs are absent. But the most important part - brake hub - is available, mounted on a press (please check a photos). Full main motor unit (along with pulley) is absent.
