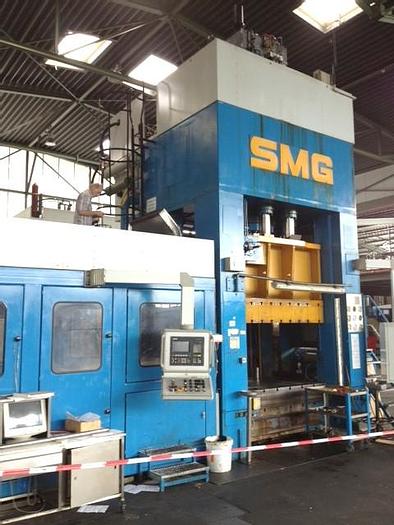

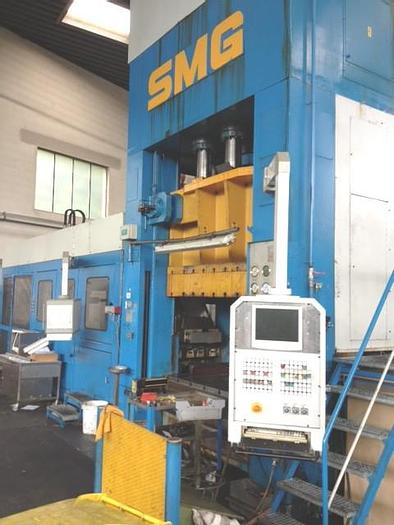

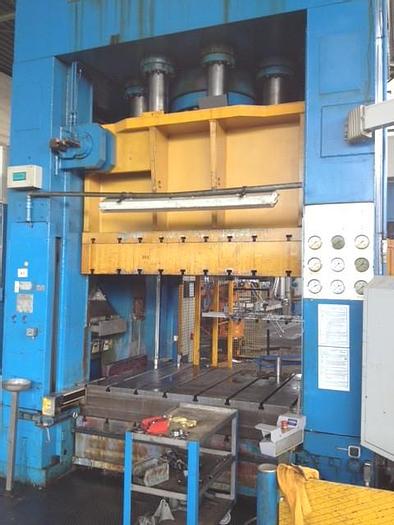

Press Sheet Stamping Hydraulic HZPUI1600/800-2200/1500

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerSMG
ModelHZPUI1600/800-2200/1500
Year1976
ConditionUsed
Stock NumberMA0541
Item conditionGood working condition
Capacity tons1600

Description

Slide Force max. : 1600 tons,

Retraction Force (brutto) approx. : 720 tons,

Cushion force max. : 1000 tons,

Dimensions :

Slide Stroke : 600 mm,

Cushion Stroke : 475 mm,

Distance Bolster – Slide in TDC : 1500 mm,

Bolster above Floor with foundation : 800 mm,

Bolster/Slide width : 2200 mm,

Bolster/Slide depth : 1500 mm,

Cushion width : 1950 mm,

Cushion depth : 850 mm,

Daylight between uprights left/right approx. : 2210 mm,

Daylight between uprights front/back approx. : 1000 mm,

Table : 1500 x 2000 mm,

Total height above floor approx. : 6600 mm,

Electrical Power :

Main Motor capacity approx. : 110 kW,

Velocities :

Fast speed downward max. : 300 mm/s,

Working speed max. approx. : 24 mm/s,

Working speed at nominal force approx. : 6 mm/s,

Fast speed upward max. : 250 mm/s,

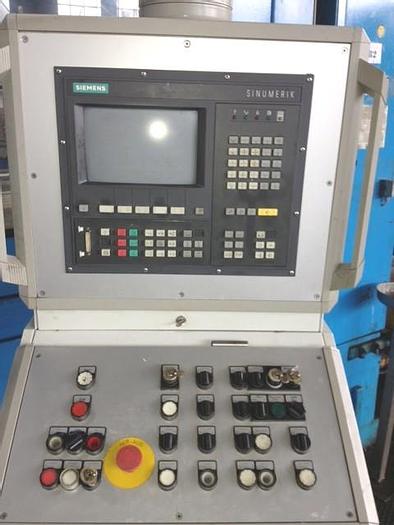

Control SNG Numerik D4,

Loading system.

All details and manuals.

Production year 1976, it was retroffited 1991.
