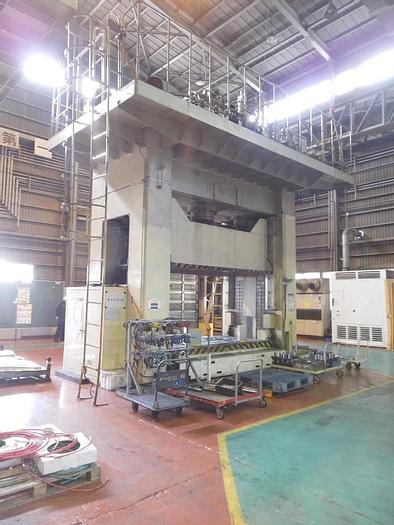

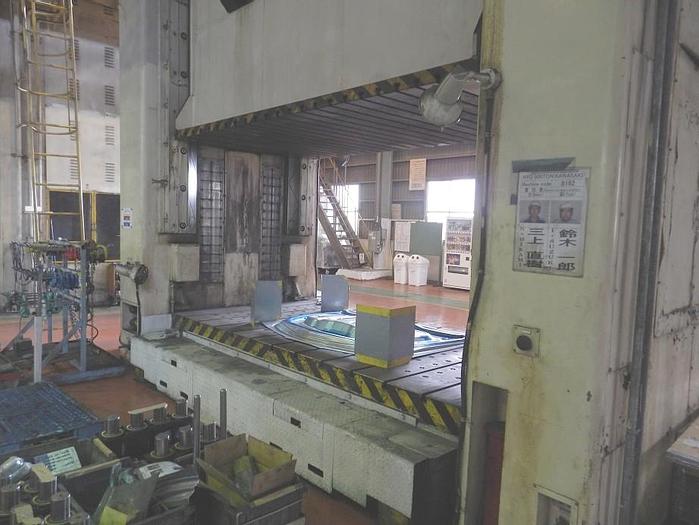

Press Sheet Stamping Hydraulic Kawasaki

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerKawasaki
ConditionUsed
Stock NumberMA0542
Item conditionexcellent working condition
Capacity tons500

Description

Capacity : 500 tons,

Low Speed : 100~500 tons,

High Speed : 40~200 tons,

Automatic : 260~500 tons,

Pressure Adjusting Range : 42.4~212 kg/cm2,

Rising Capacity : 37t / 212 kg/cm2,

Stroke : 1000 mm,

Daylight : 1800 mm,

Shut Height : 800 mm,

Bolster : 3500 X 1800 mm,

Slide : 3500 X 1800 mm,

No Load Decending Speed : 260 mm/s,

-Speed Under Pressure :

High Speed : 80 mm/s (140t)~57 mm/s (200t),

Low Speed : 32 mm/s (350t)~22 mm/s (500t),

Automatic : 22 mm/s,

-Raising Speed :

Main Press only : 260 mm/s,

Up thrust press : 170 mm/s,

-Number of presses :

Main Press : 1 x 300 tons,

Side Press : 2 x 100 tons,

-Balancer Press :

Capacity : 120 tons,

Pressure : 212 tons,

Stroke : 1000 mm,

Cylinders : 2 x 60 ton,

-Cushion Press :

Capacity : 30~150 tons,

Pressure : 41.4~207 kg/cm2,

Stroke : 300 mm,

Cushion Pad : 3000 X 1300 mm,

Quantity : 2 x 75 tons,

-Up Thrust Press :

Capacity : 15 tons,

Pressure : 105 kg/cm2,

Raising Speed : 170 mm/s,

Stroke : 300 mm,

Quantity : 1

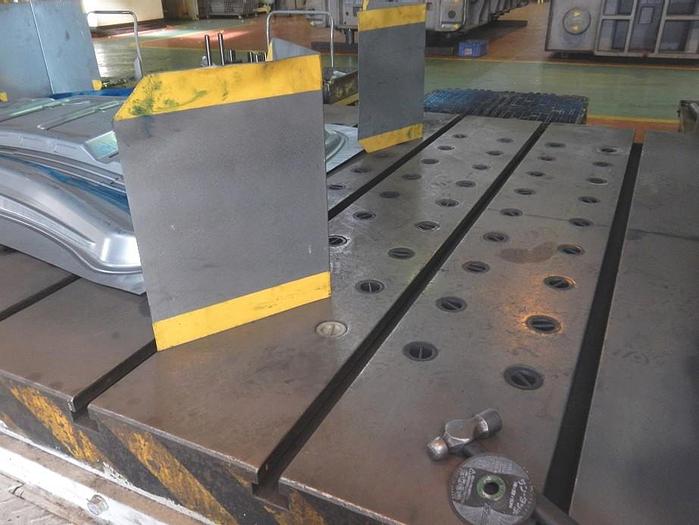

-Moving Bolster :

Pressure : 45kg/cm2,

Bolster Size : 3500 X 1800 mm,

Bolster Traverse Speed : 60 mm/s,

Max Load when moving : 55 tons,

Bolster Stroke : 2100 mm,

Bolster Movement : Front Movement,

Cylinders : 1.

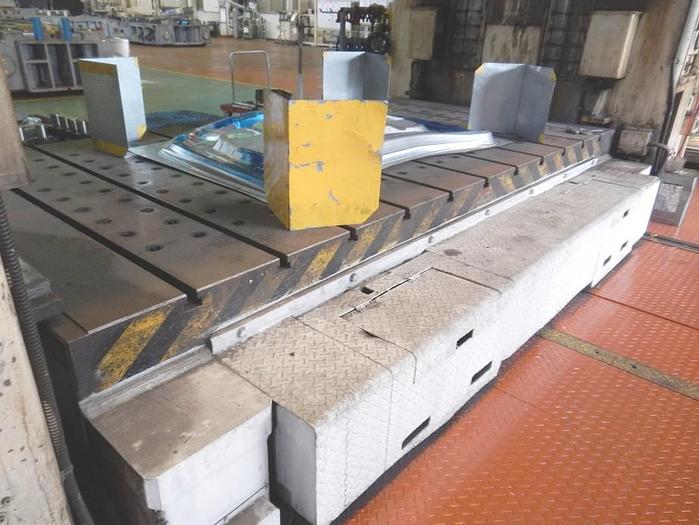

This press has a 3500 x 1800 mm moving bolster and a die cushion.
