Press Die Spotting Hydraulic AMMI

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerAMMI
ConditionUsed
Stock NumberMA0546
Item conditionGood working condition
Capacity tons75

Description

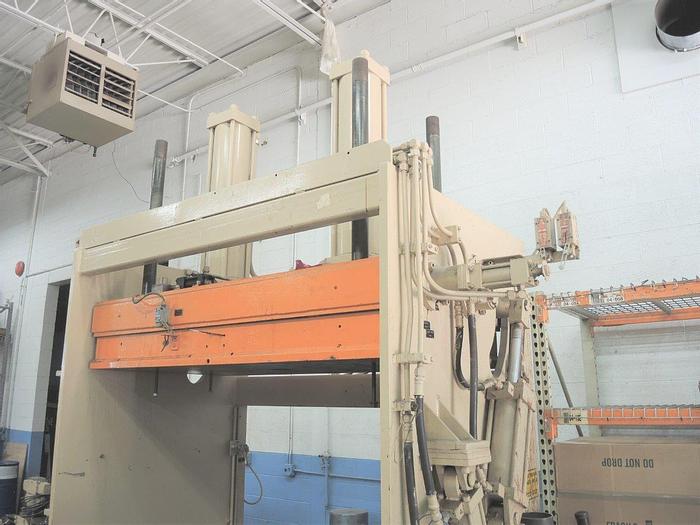

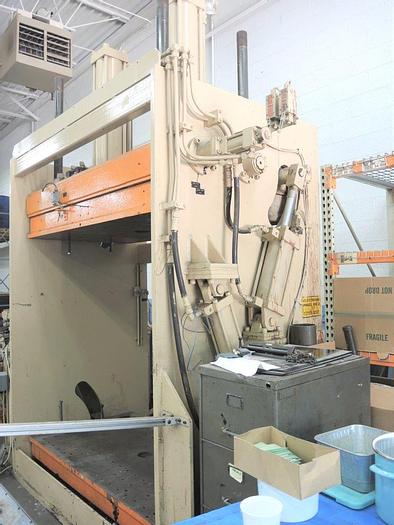

AMMI Hydraulic press with Tilt down Ram & Tilt up Bolster floor standing


Capacity : 75 tons,

Stroke : 850 mm,

Daylight : 1750 mm,

FB Bolster : 2025 LR x 1050 mm,

FB Ram : 2025 LR x 1050 mm,

Opening between sides : 2100 mm,


Equipped with :

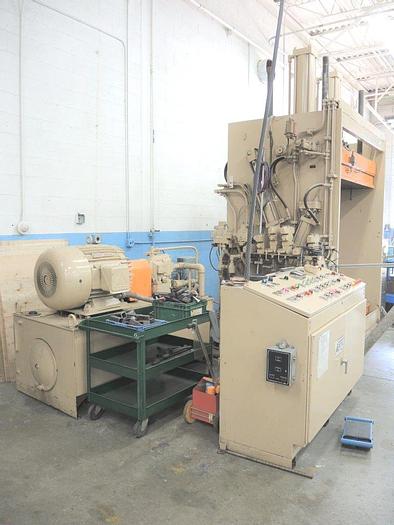

Control Console,

Motor & Electrics,

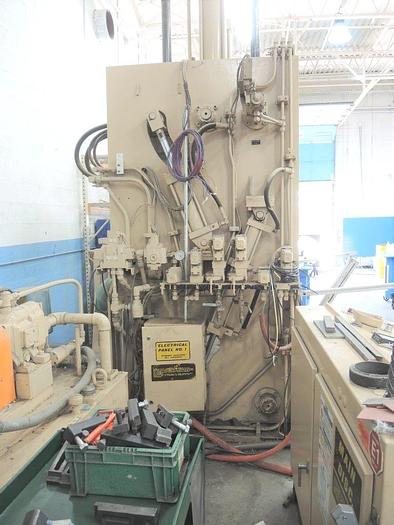

Hydraulic Tank,

Light Curtains,

45 Degree Tilt down Ram,

45 Degree Tilt up Bed,


Approx. Dimensions :

Press (FB X L X H) : 1700 X 3350 X 3775 mm (Est. weight 6.8 tons),

Motor/Hydraulic Unit (W X L X H) : 1025 X 2000 X 1500 mm (Est. weight 1.36 ton),

Control Cabinet (W X L X H) : 750 X 1750 X 1200 mm (Est. weight 0.36 ton).
