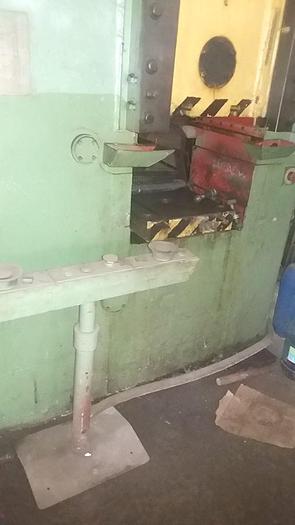

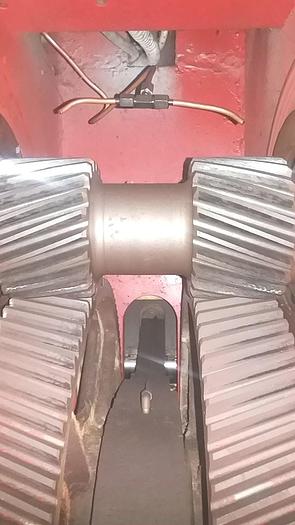

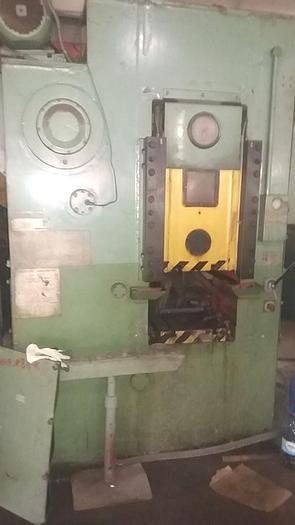

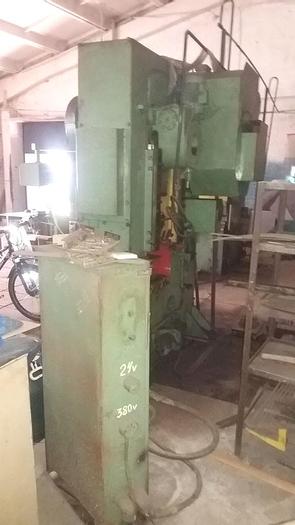

Press Knuckle Joint Coining KB8334

Capacity : 250 tons,

Ram stroke : 120 mm,

No. of strokes : 60 per min.,

Shut height : 300 mm,

Bolster plate-to-ram adjustment stroke : 12 mm,

Bed dimensions : 400 x 400 mm,

Bolster plate thickness : 80 mm,

Lower knockout stroke : 70 mm,

Force : 8 tons,

Upper knockout stroke : 10 mm,

Force : 2.5 ton,

Main drive motor power : 8.5 kW,

Overall dimensions : 1745 x 1150 x 2585 mm,

Weight : 5.5 tons.
