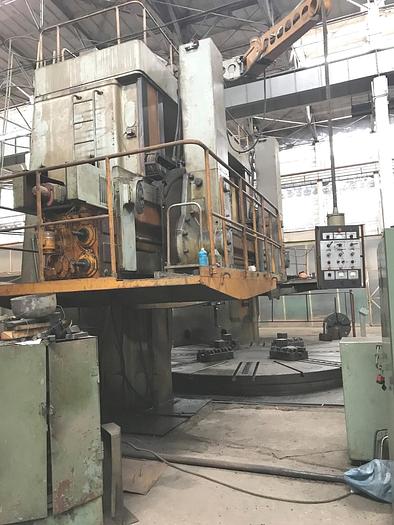

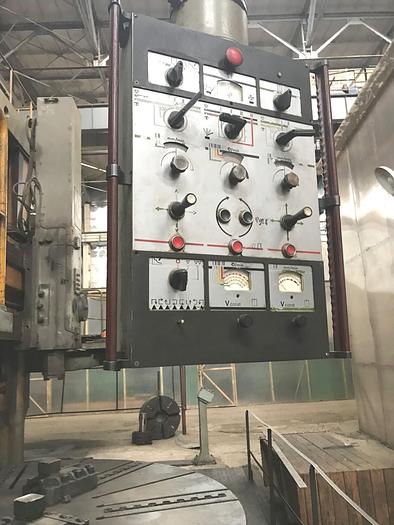

Lathe Vertical Turning 1550F1

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerKolomna Russia
Model1550F1
Year1991
ConditionUsed
Stock NumberMA0554
Item conditionGood Condition
Capacity tons5000

Description

Chuck diameter : 4500 mm,

Max. diameter of work piece : 5000 mm,

Max. height of work piece : 2500 mm,

Max. shift of vertical supports : 1600 mm,

Turn angle of vertical supports : -15 to +40 degrees,

Max weight of work piece : 63 tones,

Max. effort of cutting by two supports : 12500 kN,

Max. moment of cutting at chuck : 20,000 kNm,

Speed of chuck turning : 0.34 - 31.2 turn/minute,

Vertical and horizontal feed : 0.0435 - 352 mm/turn,

Main motor power : 125 kW,

Dimensions :

Height - 8400 mm,

Width - 11400 mm,

Length - 6600 mm,

Weight - 140.5 tons.
