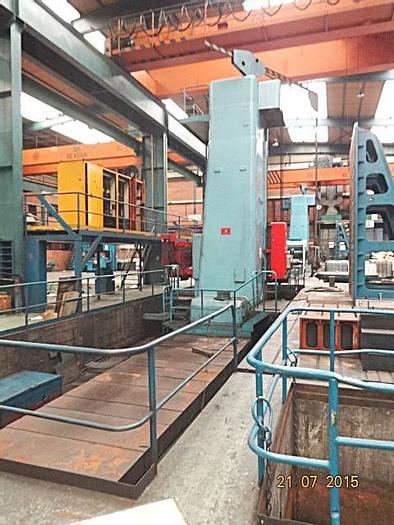

Borer Horizontal Floor Type NC W200HB

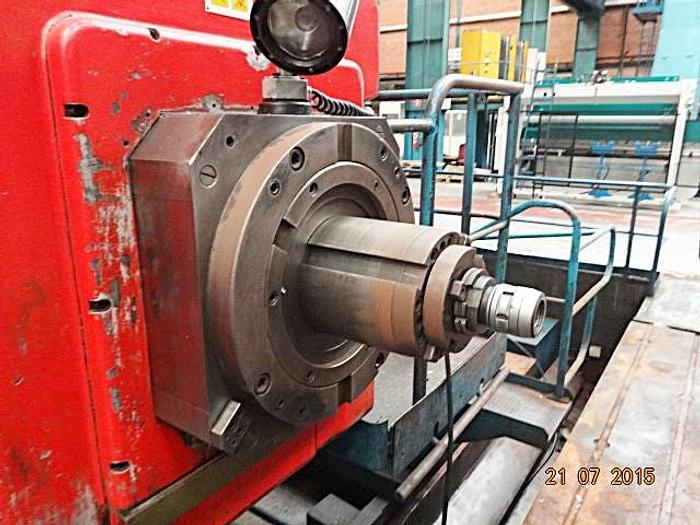

Spindle diameter : 200 mm,

Travel X: 12000 mm,

Travel Y: 4150 mm,

Travel Z: 1200 mm,

Spindle turning speed range : 0,9-914 U/min,

Spindle taper ISO 60/50

Max. torque on the spindle :12000 Nm,

Total power requirements 185 kW,

Dimensions : 2000 x 8000 x 8000 mm,

Weight of the machine : 145 tons.

Accessories:

FIDIA C20 control,

Floor plate 13000 x 4000 mm,

3x angular clamps,

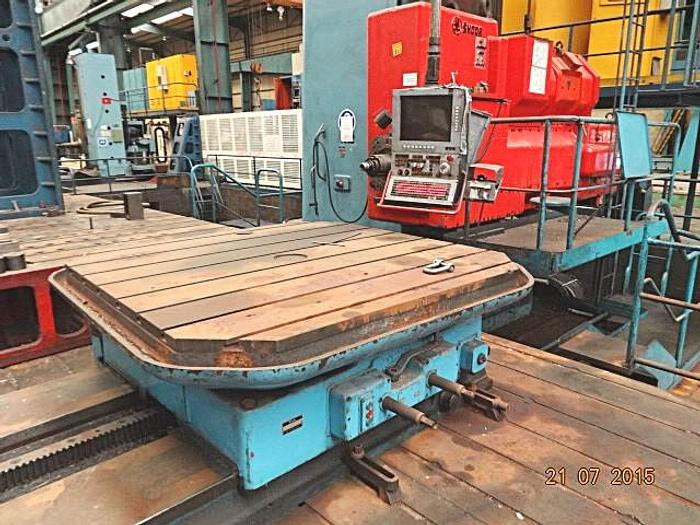

Rotary table SKODA E25, dimensions 2000 x 2000 mm,

Technical manuals Available.
