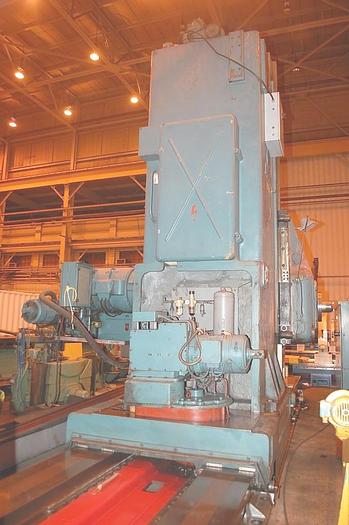

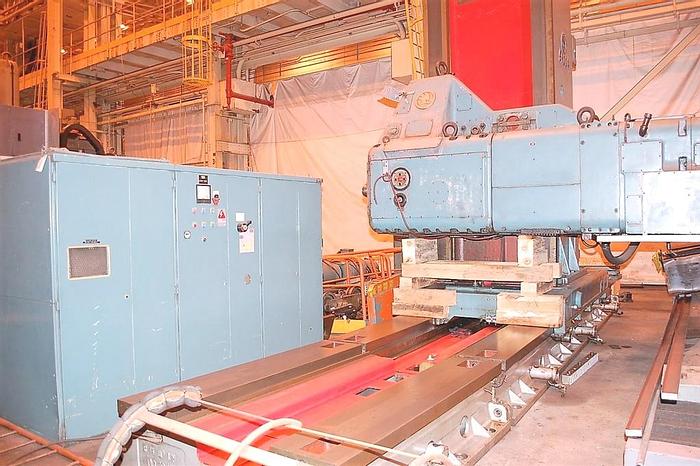

Borer Horizontal Ram Type WD160

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSkoda Czech
ModelWD160
Year1975
ConditionUsed
Stock NumberMA0586
Item conditionGood working condition
Capacity tons160

Description

Capacity :

Spindle Diameter : 160 mm,

Vertical Head Travel, Y-Axis : 2500 mm,

Column Travel, X-Axis : 5000 mm,

Spindle Travel, Z-Axis : 1600 mm,

Ram Travel, Z-2 Axis : 1250 mm,

Ram & Spindle Travel, Combined : 2850 mm,

Ram Cross Section : 450 mm x 450 mm,

Spindle Speeds: 4-Ranges : 2-800 RPM,

Spindle Taper : #50,

Rapid Traverse : 3200 mm/min,

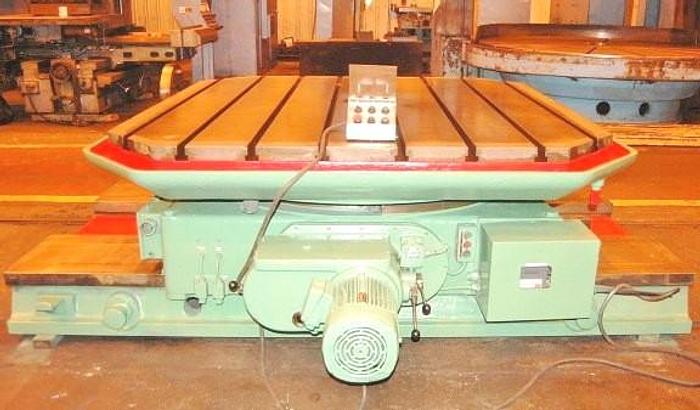

SKODA Infeeding Rotary Table :

Rotary Table Size : 2000 mm x 2000 mm,

Rotary Table Infeed : 1200 mm,

Table Height : 890 mm,

Table Capacity : 20013 KG,

Longidudinal Travel, 3-Speeds : 3 mm / 10 mm,

Rotation, 3-Speeds : 5 mm / 12 mm,


Features :

Ram & Spindle for Combined 2845 mm Z-Travel

1981 mm x 1981 mm Skoda Infeeding Rotary Table

Universal Angle Head

Digital Readouts


Equipped with :

Full Pendant Controls

Digital Readouts

Universal Angle Head

Power Draw Bar

1981 mm x 1981 mm Skoda E-20 Infeeding Rotary Table

Way Covers on X Axes

Chip Conveyor

Work Light

37 KW Spindle Drive 440/3/60


Note :

Floor Plates Not Included
