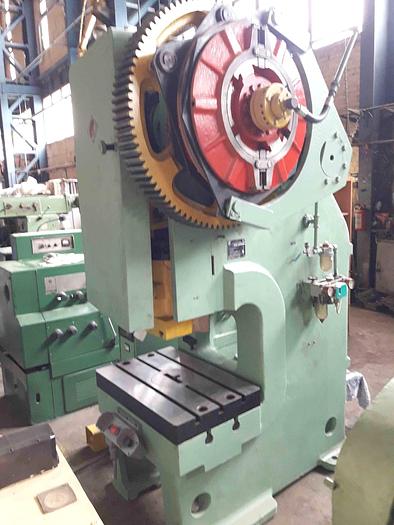

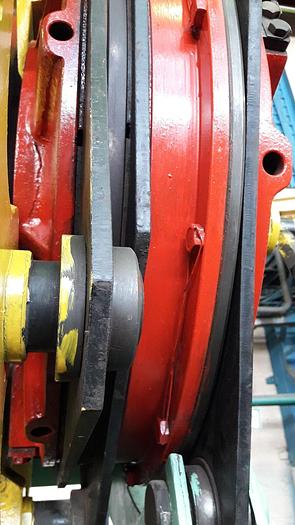

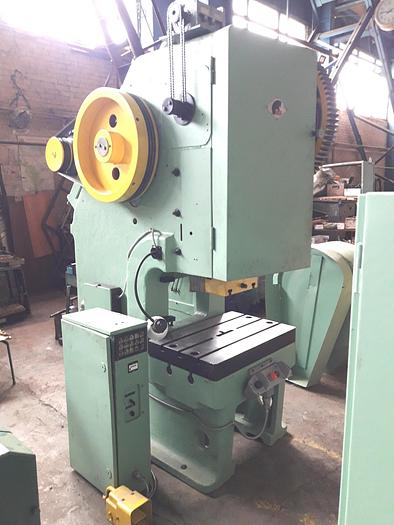

Press Trimming K2130

Sold

Specifications

ManufacturerRussian
ModelK2130
Year1985
ConditionNew
Stock NumberMA0597
Item conditionNew
Capacity tons100

Description

Capacity : 100 tons,

Slider stroke length : 10-130 mm,

Distance between table and slide : 100 mm,

Frequency of slide stroke : 80/min,

Frequency of courses of a slide : 72 rpm,

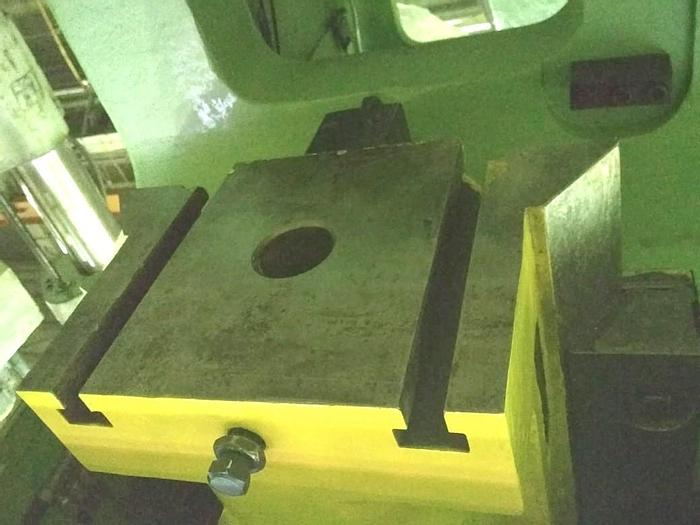

Table : 560 x 850 mm,

Table effective area width : 630 mm,

Technological work : kJ,

Individual course 3,35,

Continuous course 1,6,

Closed forging height : 380 mm,

Height above floor level : 2520 mm,

Press dimension (length width height) : 1555 x 1850 x 2725 mm,

Number of electric motors : 2,

The main drive motor : 11.8 kW (R/min),

Press Weight : 6.8 tons.
