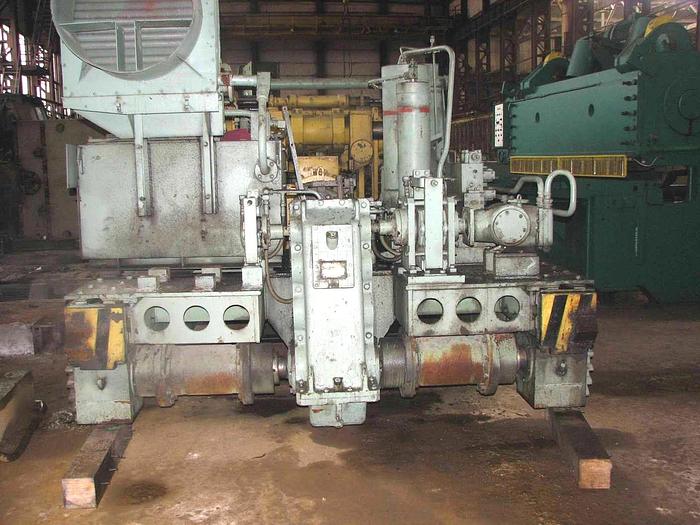

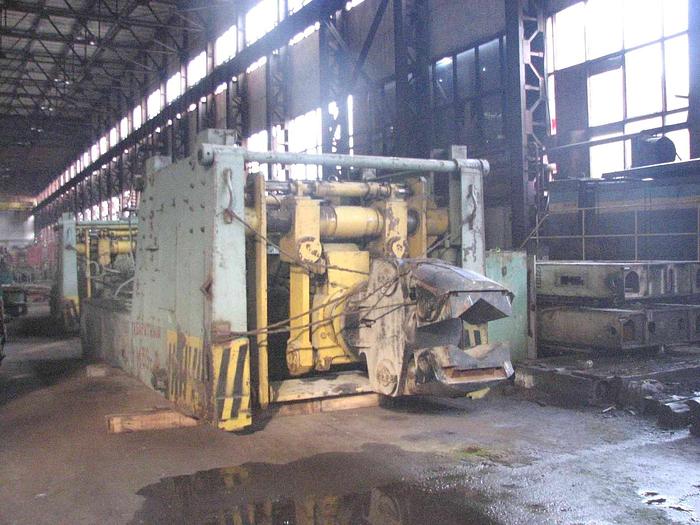

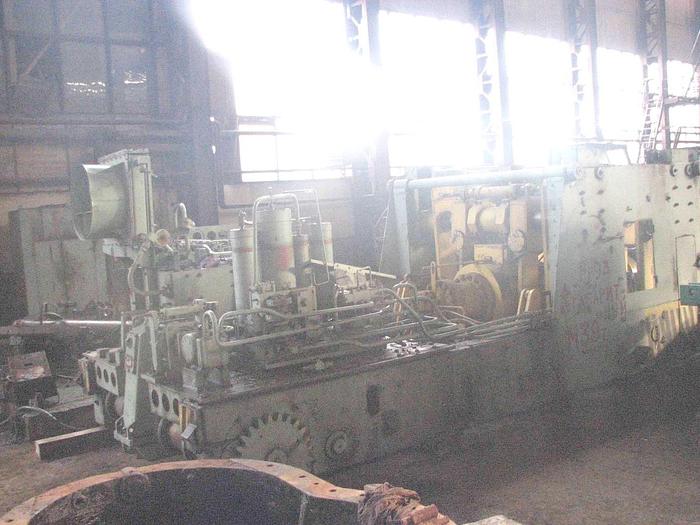

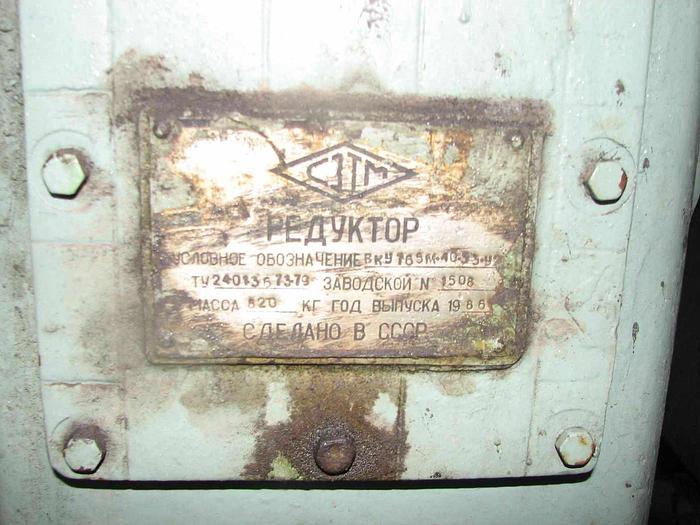

Manipulator MKP5M


Contact us for price

orCall +919920651051


ManufacturerDnepropetrovsk, Russia
Stock NumberMA0602
Item conditionExcellent
Capacity tons5


Capacity : 5 tons,

Load movement : 100 (10) kN.m(t.m),

Max dia of circle turning jaws : 1300 mm,

Max opening of jaws : 750 mm,

Min height of overarm axis from rail head : 800 mm,

Max parallel lift action of overarm : 600 mm,

Distance from face end of jaws to main frame : 1600 mm,

Adjusted rotation speed of jaws : 1-20 t/min,

Adjusted travelling speed of manipulator : 60 m/min,

Conveyance speed of jaws in vertical surface : 5,6 m/min,

Axis shift of jaws under action of powers : axis +_ 160 , side +_50,

side shift of jaws +_ 200 mm,

tilt of jaws , degree : down 6 , up 3,

Height of manipulator : 2500 mm,

Overall Dimensions in plan : 3400 x 8400 mm,

Weight : 39 tons.

The rail bound non-rotatory manipulators are intended to handle elongated pieces during free forging in manual and automatic modes of operation in hydraulic presses.

Suspension system of the machines makes it possible to perform the next motions of peel shaft:

-Parallel lifting and lowering;

-tilting upwards and downwards;

-side shift;


-axial travel relative to the carriage and return into central position.

The manipulators may be controlled in three modes of operation : manual, semi-automatic, automatic.

They are delivered to customers with ordinary or prolonged peels to be used either as components of plants with integrate control or without a plant to interact with presses from 5 to 31.5 MN and to be controlled from individual control desk.
