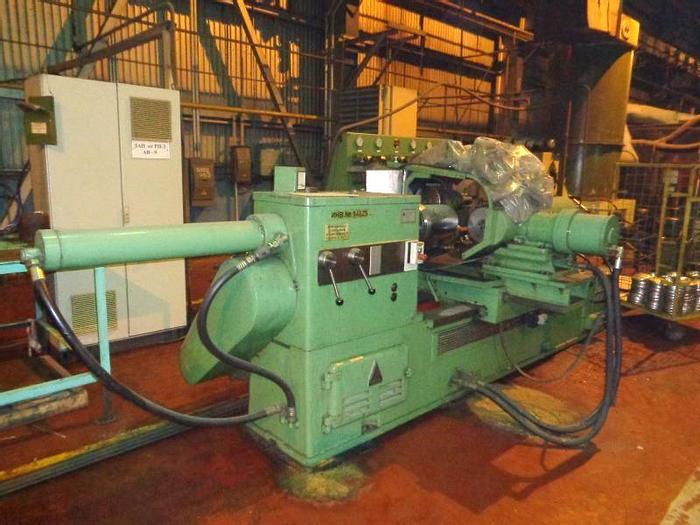

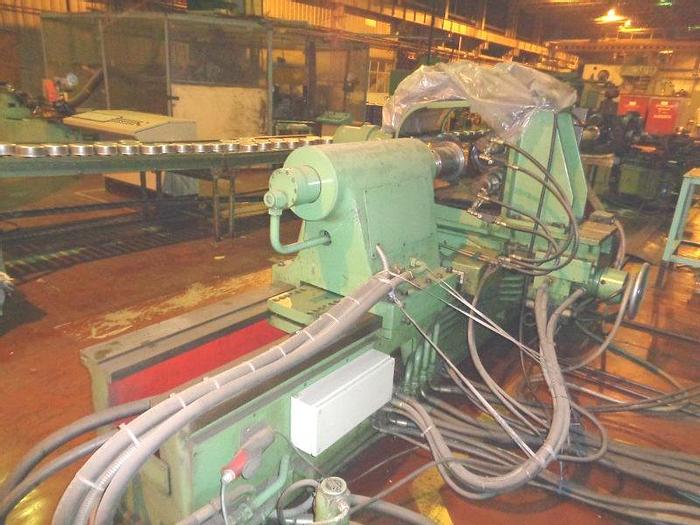

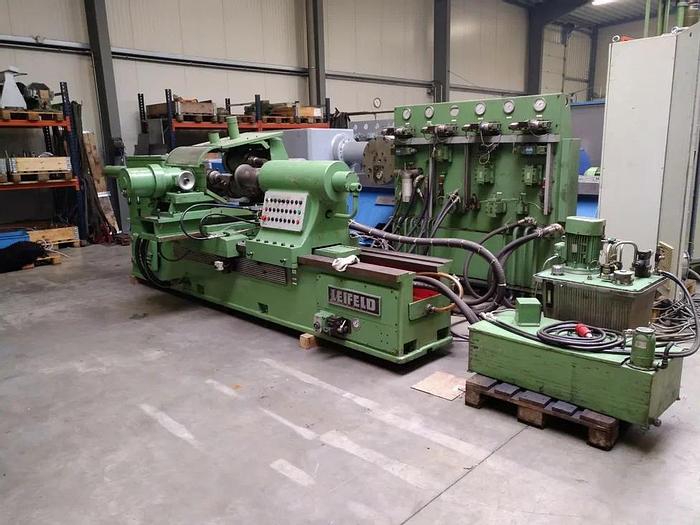

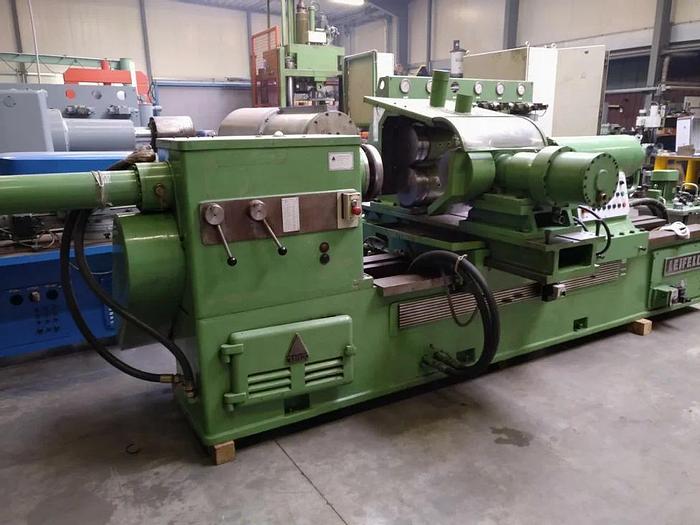

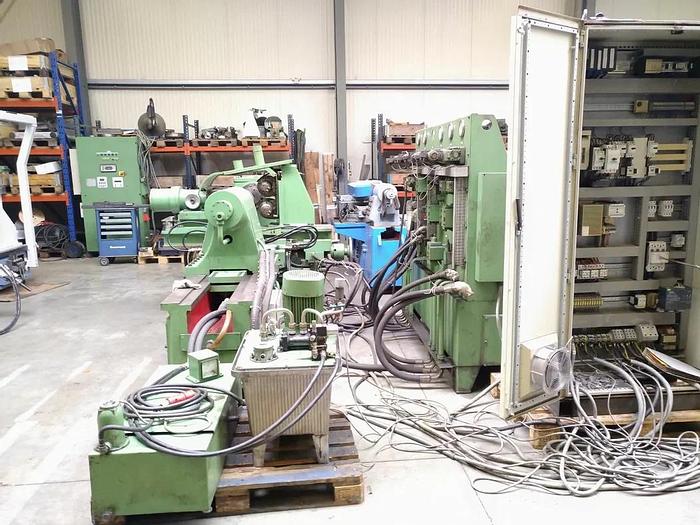

Flow Forming Machine ST500HS

Price

Contact us for price

orCall +91 9920651051

Specifications

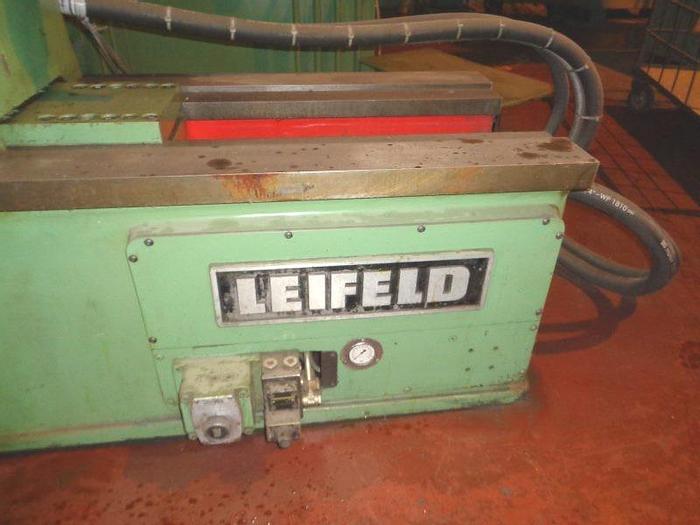

ManufacturerLeifeld Germany
ModelST500HS
Year1974
ConditionUsed
Serial NumberA0892
Stock NumberMA0613
Item conditionVery good condition

Description

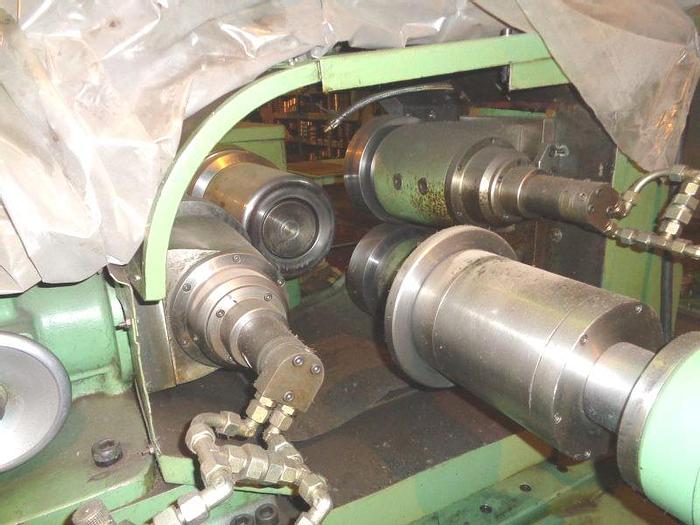

3-Roller Metal Spinning Machine

Max. workpiece lenght :

Normal : 720 mm,

By adjustable tailstock : 1250 mm,

-Min / Max. diameter of workspiece : 100 / 550 mm,

Max. round blank : 650 mm,

Support length way : 800 mm,

Feed force length : 25000 kp,

-Support speed length :

forward stroke : 1100 mm/min,

express turn stroke : 6000 mm/min,

Stroke of over support : 60 mm,

Capacity of over support : 13000 kp,

Stroke of holding device continuously till : 6,56 mm,

-Speed range :

grade : 9 (36-635) rtm,

gradeless : 36-635 rtm,

Main motor : 18,5 kW,

Hydrauliс : 18,5 kW,

Power demand : 50 KVA,

-Tailstock :

pressure force : 4500 kP,

tailstock quill stroke : 750 mm,

-Speed:

forward stroke : 13500 mm/min,

turn stroke : 27000 mm/min,

-Ejector :

Capacity : 400 kP,

Stroke : 800 mm,

-Speed:

forward stroke : 14500 mm/min,

turn stroke : 16500 mm/min,

-Tool holder (DIN 55022) : 11

Refrigerating fluid volume : 60 l/min,

Weight : 9 tons,

-Max. forming ( 70% wall thickness reduction):

-Rround blank :

St.14 : 6 mm,

Al 99,5 : 12 mm,

Al.reg : 9 mm,

-Feature :

St.14 : 7 mm,

Al 99,5 : 16 mm,

Al.reg : 12 mm,

NIRO 18,8 : 6 mm,

E-Cu : 9 mm,

Wolfram : 6 mm.
