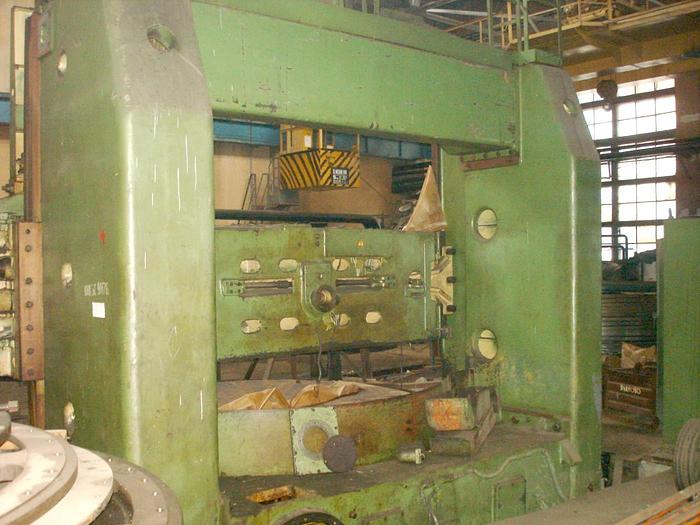

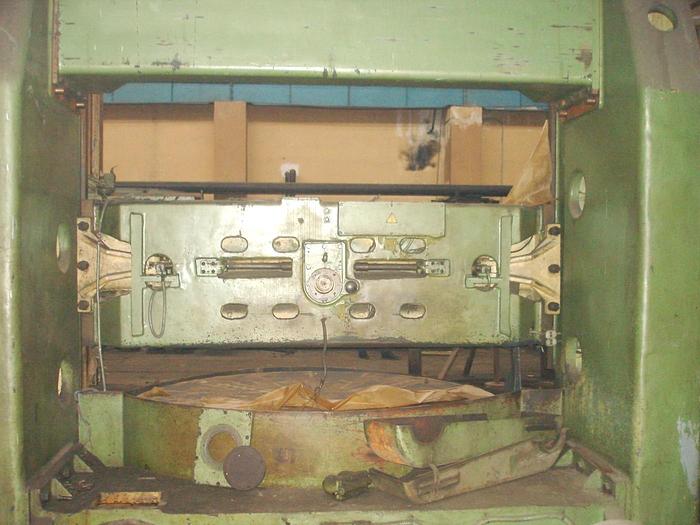

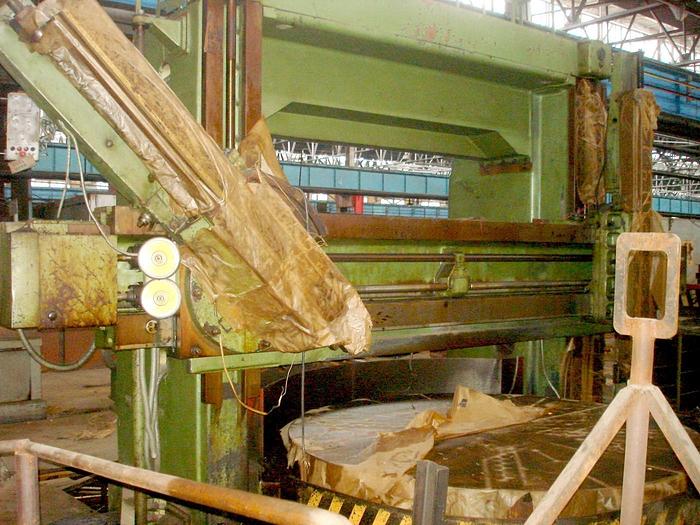

Lathe Vertical Turning 1532

Turning diameter : 3200 mm,

Faceplate diameter : 2800 mm,

Turning height : 1600 mm,

Workpiece weight : 16000 kg,

Number of tool slides : 2

Horizontal stroke of tool slide : 1720 mm,

Vertical stroke of tool slide : 1200 mm,

Tool slide positioning speed up to : 1780 mm/min,

Crossrail travel : 1240 mm,

Faceplate speed : 0.25-63 rpm,

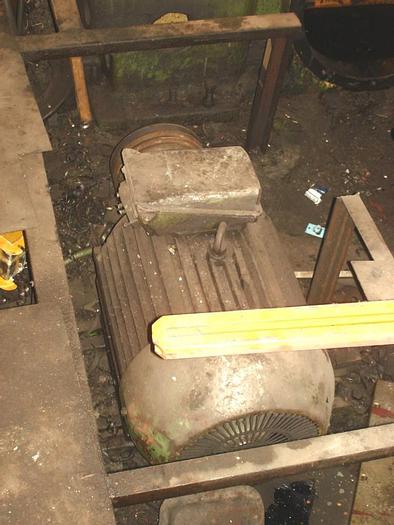

Main drive power : 55 kw,

Overall dimensions : 5640 x 7150 x 4900 mm,

Machine weight : 43 ton.
