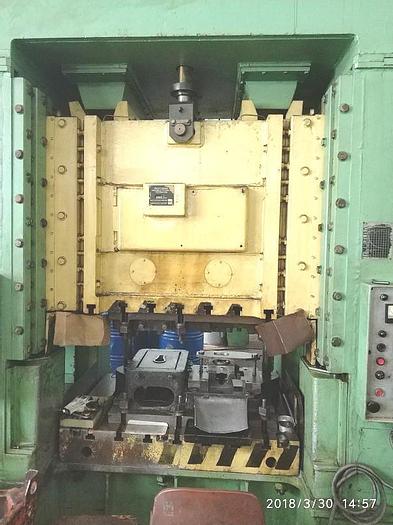

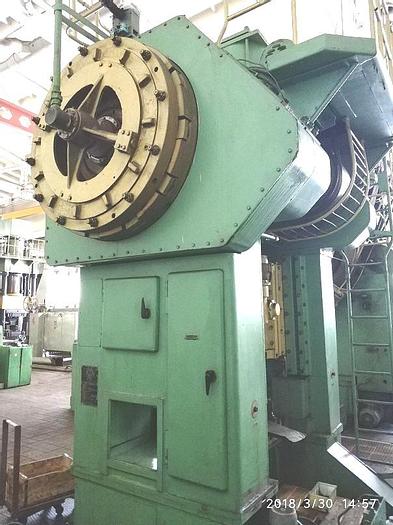

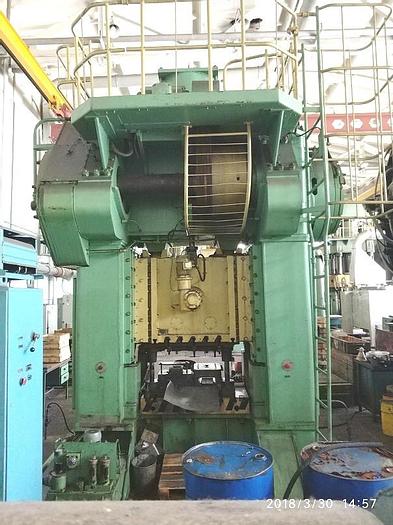

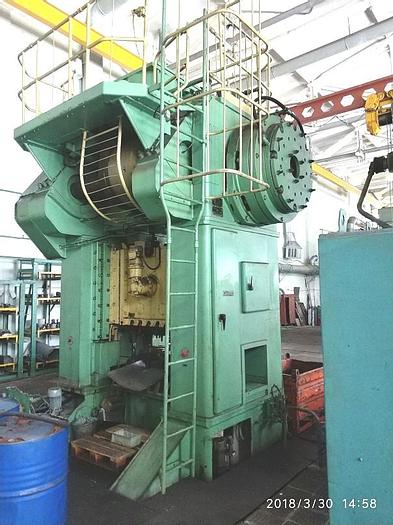

Press Trimming KA9033

Capacity : 200 tons,

Ram stroke : 200 mm,

Number of ram strokes per min : 50,

Shut height : 450 mm,

Bolster plate to ram adjustment stroke : 20 mm,

Bed dimension : 1,250 x 900 mm,

Ram dimension : 1250 x 800 mm,

Bolster plate thickness : 180 mm,

Main drive motor power : 22 kw,

Overall dimensions : Floor space : 4010 x 2960 mm,

Height above floor level : 4885,

Mass t approx : 41 ton.
