Borer Horizontal Ram Type B254

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSchiess Froriep
ModelB254
Year1972
ConditionUsed
Stock NumberMA0628
Item conditionExcellent
Capacity tons150

Description

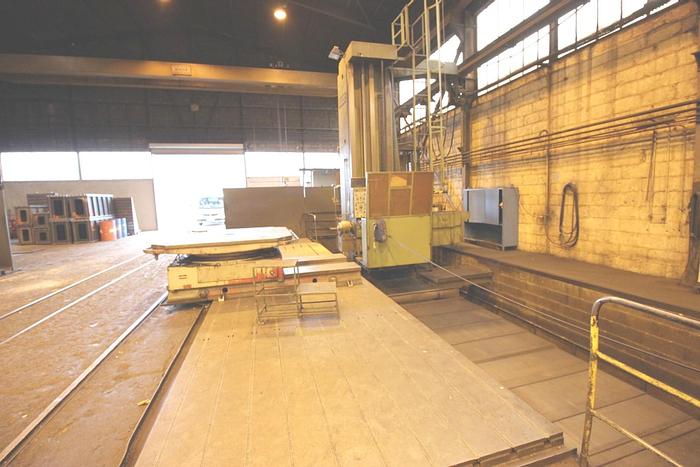

Ram type Floor boring Machine (7000 mm)

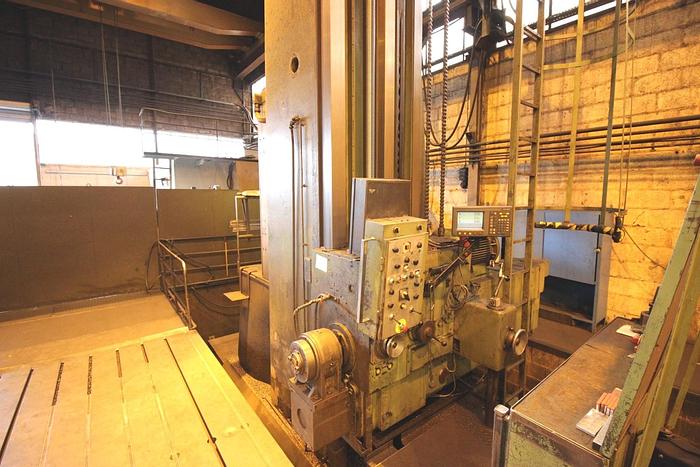

Control : Conventional,

Spindle diameter : 150 mm,

X-travel : 7000 mm,

Y-travel (Vertical) : 3700 mm,

W-axis (spindle longitudinal) : 1400 mm,


Separate Ram Below spindle

Ram Size: 230 x 230 mm

Spindle taper : ISO 50

Variable spindle speed : 2 - 1120 rpm

Rapid movement :

The spindle motor : 46 kW,


Machine size:


Weight of the bare machine : 37 tons,

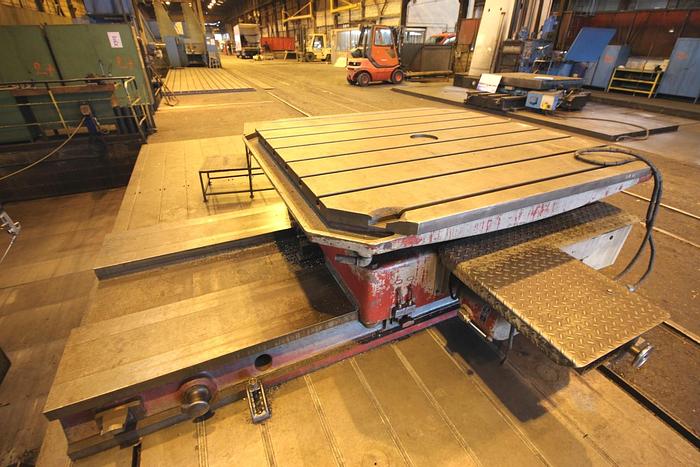

Rotary table :Skoda type E25

Rotary Table size :2000 x 2000 mm,

Rotary table weight capacity : 25 tons

Rotary table travel : 1200 mm

Rotary table weight : 9750 kg

Floor plates :Not along

Floor plate weight (each) "ca. 8 tons,


Angular milling head :Yes - Huron


Other information

- Complete with all accessories

- With complete documentation

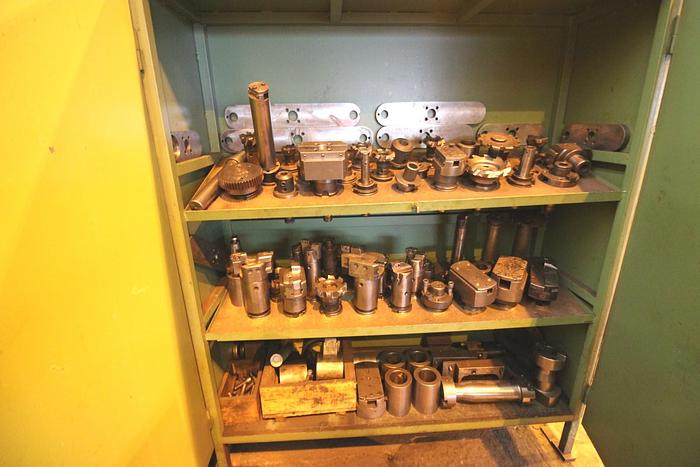

- With Vertical milling head & some tools

- With complete with floor plates + rotary table & documentation

- More technical details over request.
