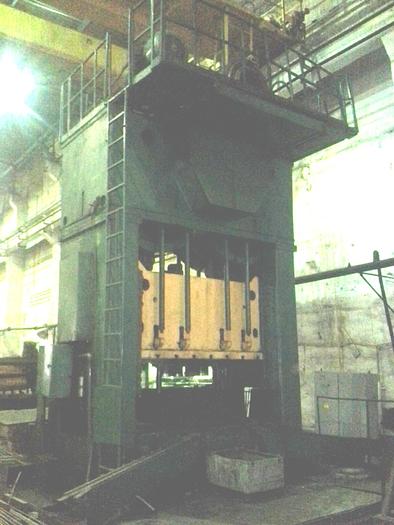

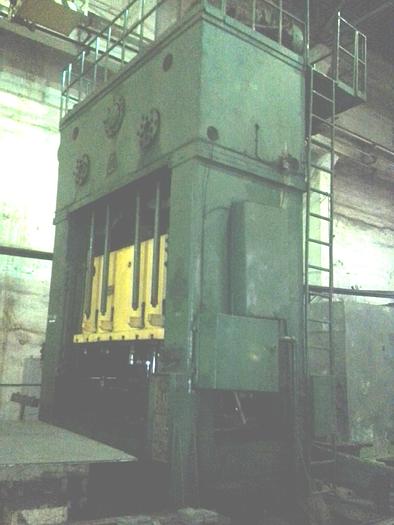

Press Sheet Stamping Mechanical KA3539A

H - Frame

Capacity : 800 tons,

Ram stroke : 320 mm,

Number of ram strokes : 20 min.–1,

Bed-to bolster plate adjustment : 320 mm,

Shut height : 900 mm,

Size of bed : 2500 x 1600 mm,

Size of ram : 1400 mm,

ZThickness of stamping plate : 250 mm,

Capacity of upper ejector : 40 tons,

All capacity of all pneum. cushions : 80 tons,

Works stroke of all cushions : 100 tons,

Press dimensions :

- from left to right : 4600 mm,

- from front to back : 3280 mm,

Height of press above floor level : 6325 mm,

Main drive motor power : 76.8 kW

Weight, approx. : 86 tons.
