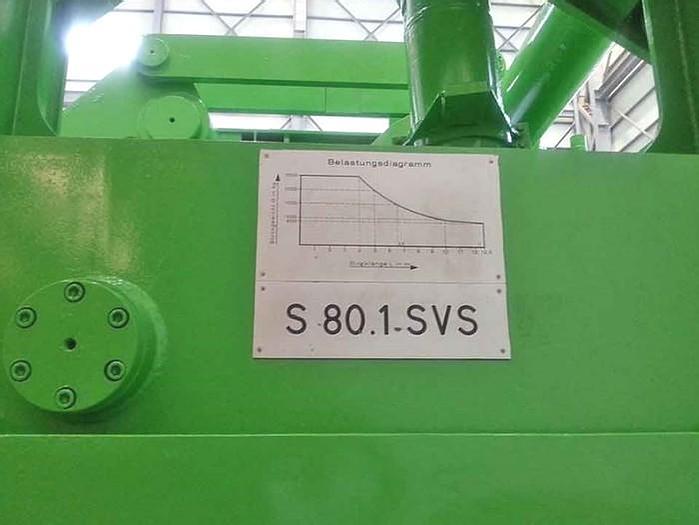

Manipulator S80.1 SVS

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerDango & Dienenthal
ModelS80.1 SVS
ConditionUsed
Stock NumberMA0641
Item conditionGood Condition
Capacity tons25

Description

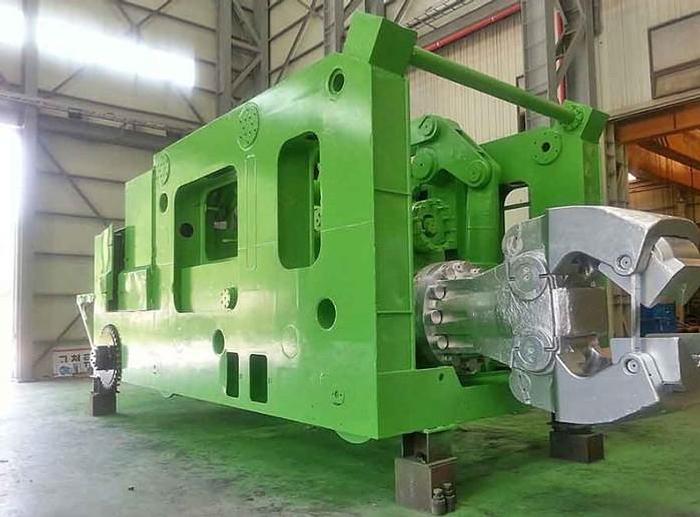

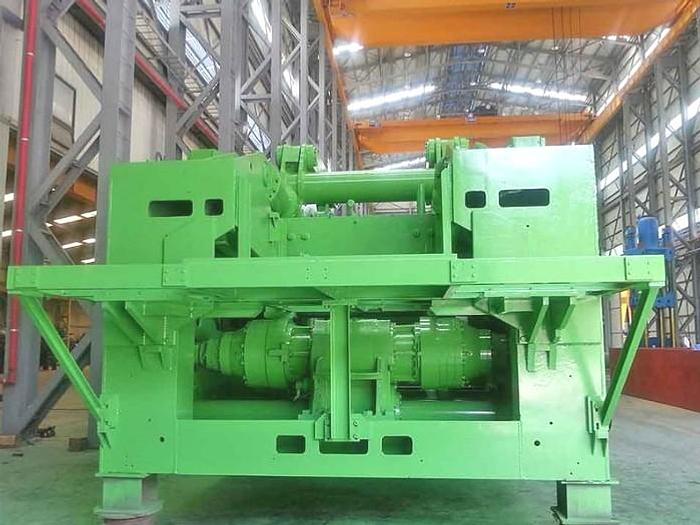

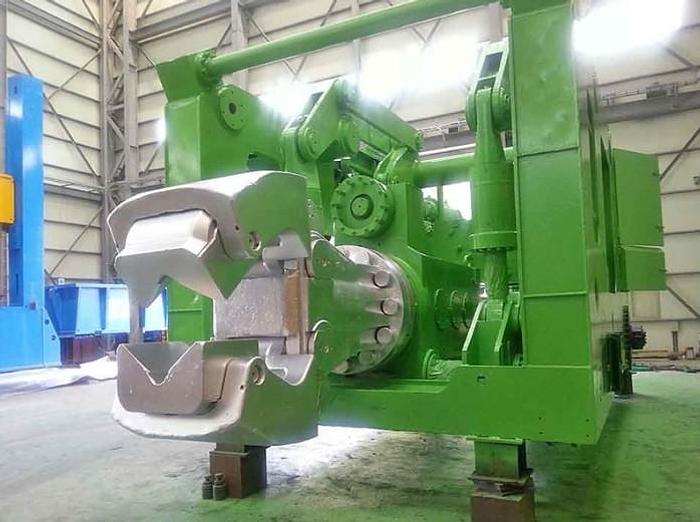

Heavy Rail Bound Forging Manipulator

Capacity : 25 tons,

Max Rds : 1100 mm,

Min Rds : 160 mm,

Max Sqr : 1000 mm,

Side Shift : 200 mm,

Clamping (Tongs) Moment

Max Parallel horiz position of tongs center above : 1850 mm,

Vertical tilt of tongs - Up : 6.5º,

Vertical tilt of tongs - down : 10º

Vertical stroke of tongs Parallel to Floor : 850 mm,

Clamping of Tongs complete stroke :170 mm/sec,

Max travel speed forwards/backwards when Forging : 30 mm/sec,

Max travel speed forwards/backwards when Transporting : 50 mm/sec,

Peel rotation speed : 0 - 30 rpm,

Peel Lifting and Lowering Speed : 170 mm/sec,

Vertical tilt speed (up and down) : 170 mm/sec,

Lifting and Lowering of Tongs complete stroke : 170 mm/sec,

Parallel Side Shift Speed : 170 mm/sec,

Total electrical power installed : 273 kW,

Total delivery of Main Pumps : 750 Lit/min,

Total capacity of Accumulator : 150 L,

Usable capacity of Accumulator : 50 L,

Overall Length : 8961 mm,

Overall Width : 4278 mm,

Overall Height : 3755 mm,

Net weight : 180000 kgs,

Full Rebuilt.
