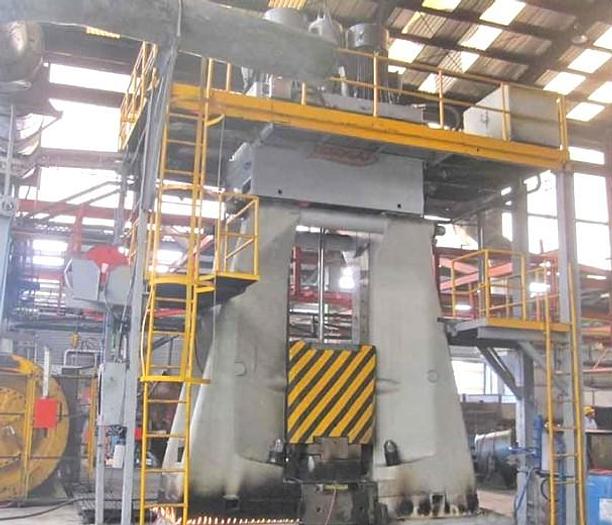

Hammer Forging Hydraulic KGK1600

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerLasco
ModelKGK1600
Year1980
ConditionUsed
Stock NumberMA0642
Item conditionVery good working condition
Capacity tons12

Description

Double Acting Electro-Hydraulic Drop Hammer Forging

Capacity : 12 tons,

Rated Size : 12000 kgs

Ram Stroke : 1100 mm,

Ram L-to-R : 1100 mm,

Ram F-to-B : 1200 mm,

Anvil L-to-R : 1200 mm,

Anvil F-to-B : 1100 mm

Max Blows per Minute : 70,

Max Weight of Ram : 12000 kgs,

Weight of Lower Anvil : 192000 kgs,

Weight of each side Frame : 25,000 kgs,

Hammer Height above the Floor : 8,000 mm,

Total Hammer weight : 287,000 kgs.


A new Anvil was installed in 2006

New Side Columns installed in 2013 were made of weldable alloy according to ISO TR 10809-2 standards

Hammer total height is 10,600mm

Die Max weight is 2,500kg

Blow capacity is 16,000 mkg

The Hammer comes with spares including an extra anvil, ram, and various additional parts.
