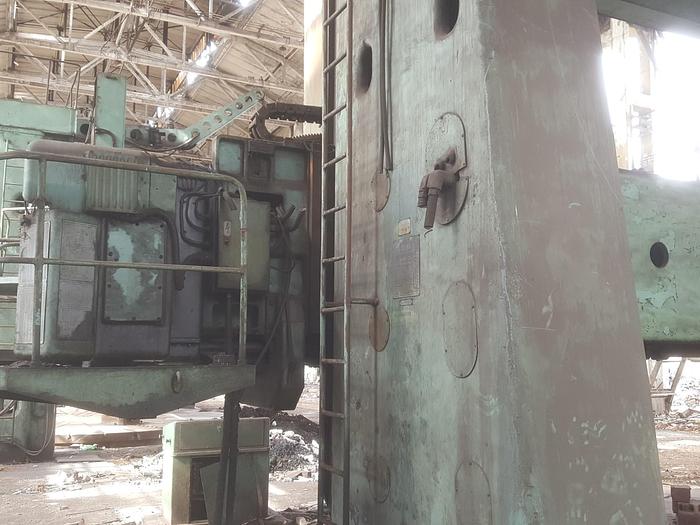

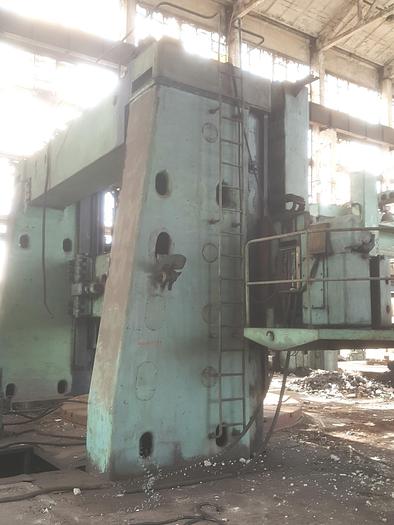

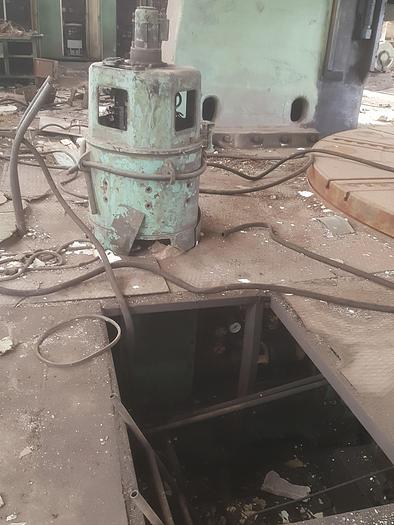

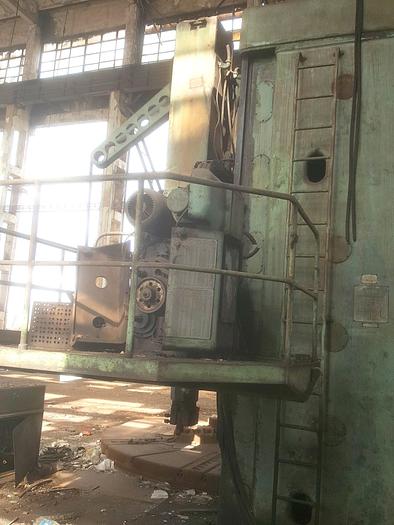

Lathe Vertical Turning 1550

Price

₹120,000 FCA Russia

€120,000 FCA Russia | £1,141.32 FCA Russia | ¥217,827 FCA Russia | ₹120,000 FCA Russia | $1,438.92 FCA Russia

Sold

Specifications

ManufacturerAbe Seiki,Japan
Model1550
Year1979
ConditionUsed
Stock NumberMA0658
Item conditionGood Condition
Capacity tons5000

Description

Max. diameter of work piece : 5000 mm,

Max. height of work piece : 2500 mm,

Chuck diameter : 4500 mm,

Max. shift of vertical supports : 1600 mm,

Turn angle of vertical supports : -15 to +40 degrees,

Max weight of work piece : 63 tones,

Max. effort of cutting by two supports : 12500 kN,

Max. moment of cutting at chuck : 20 000 kNm,

Speed of chuck turning : 0.34 - 31.2 turn/minute,

Vertical and horizontal feed : 0.0435 - 352 mm/turn,

Main motor power: 125 kW,

Dimensions :

Height : 8400 mm;

Width : 11400 mm;

Length : 6600 mm,

Weight : 140 tons.
