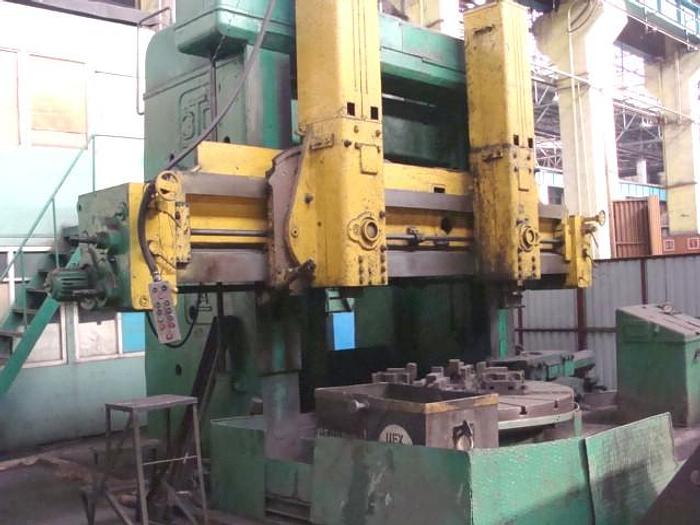

Lathe Vertical Turning 1556

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerKolomna Russia
Model1556
Year1970
ConditionUsed
Stock NumberMA0681
Item conditionGood Condition
Capacity tons2700

Description

Turning diameter : 2700 mm,

The largest diameter of processing side caliper : 2500 mm,

Turning height : 1600 mm,

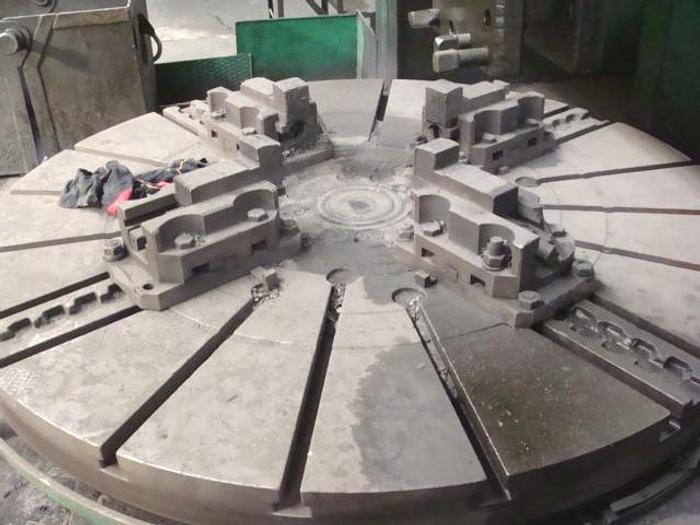

Faceplate's capacity : 14 tons,

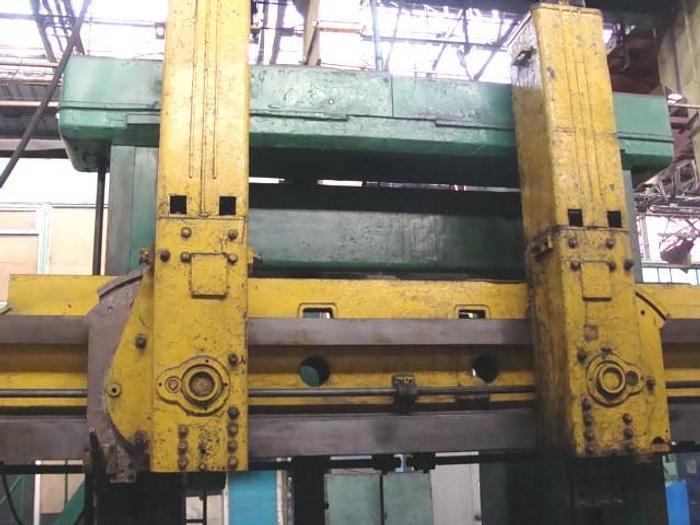

The longest stroke of the left vertical caliper from the center : 1630 mm,

The greatest length of the stroke of the right vertical caliper from the center : 1630 mm,

The greatest movement of the sled left vertical caliper : 1200 mm,

The greatest movement of the slide of the right vertical slide : 760 mm,

The maximum tilt angle of vertical calipers + 45o

The diameter of the tool holder holders turret : 50 x 50 mm,

The maximum movement of the side slide in the vertical direction : 1500 mm,

The greatest length of the movement of the cross : 1500 mm,

Total Installed Power : 40 kW,

Dimensions : 3600 x 6900 x 5600 mm,

Weight : 45.3 tons.
