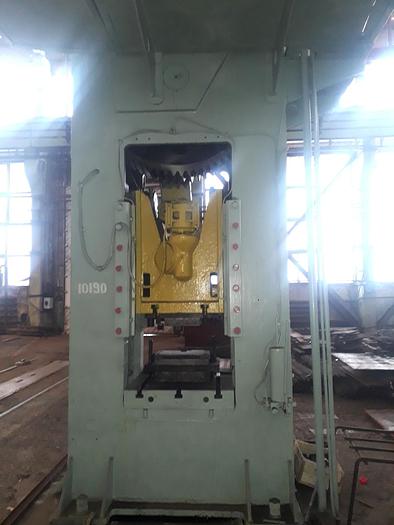

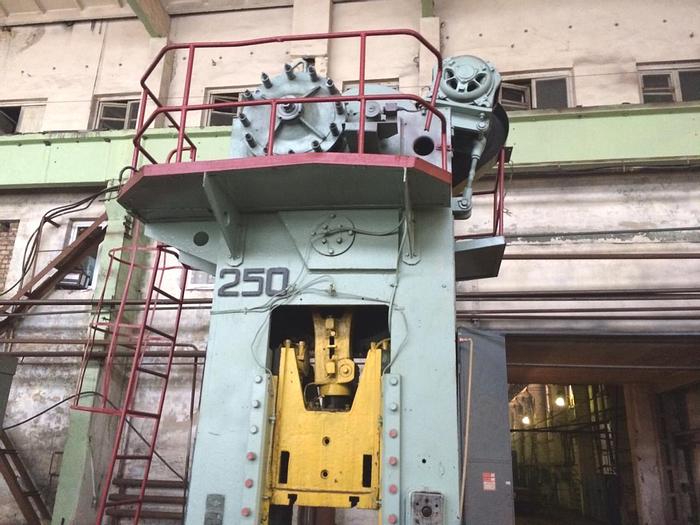

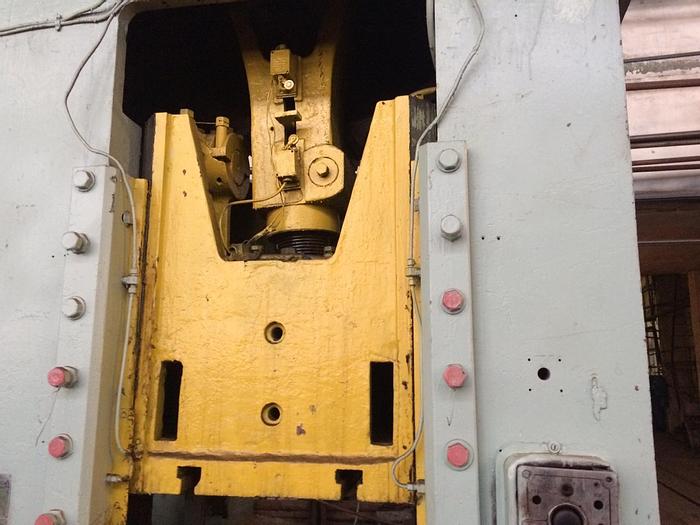

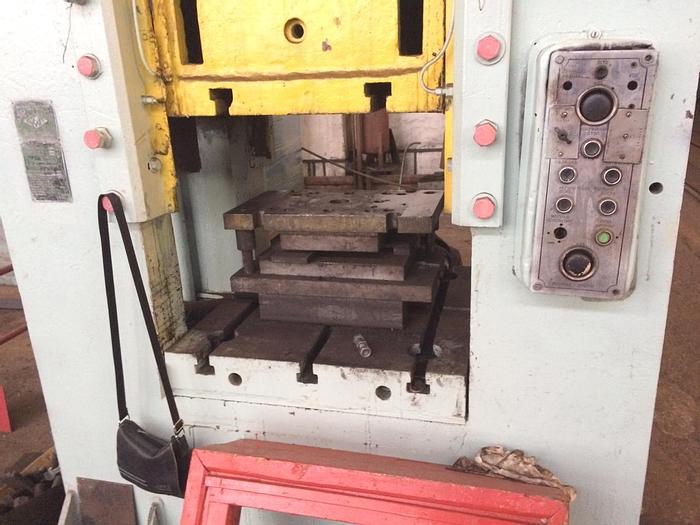

Press Trimming K9534

Capacity : 250 tons,

Ram stroke : 320 mm,

Stroke per minutes : 32,

Shut height : 390 mm,

Bolster plate-to-ram adjustment stroke : 140 mm,

Bed dimensions : 800 x 800 mm,

Bed opening dimensions : 500 x 500 mm,

Ram dimensions : 650 x 650 mm,

Bolster plate thickness : 140 mm,

Main drive motor power : 27 kW,

Overall dimensions: floor space : 3260 x 2970 mm,

Height above floor level: 5180 mm,

Mass approx : 23.3 tons.
