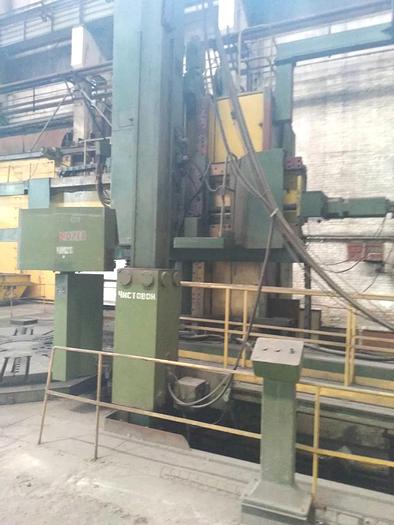

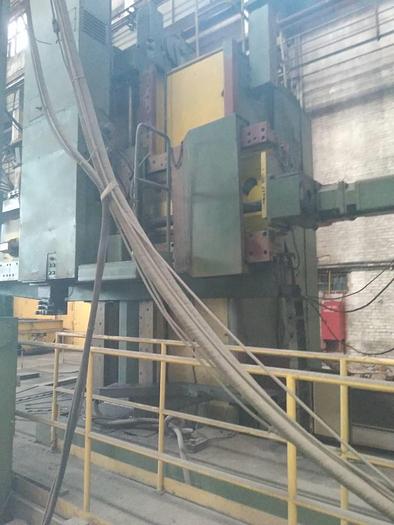

Lathe Vertical Turning CNC 1K540F4

Sold

Specifications

ManufacturerAbe Seiki,Japan
Model1K540F4
ConditionUsed
Stock NumberMA0750
Item conditionGood Condition
Capacity tons8000

Description

Single Column VTL CNC

The diameter of the workpiece (max) : 8000

The height of the workpiece (max) : 2500; 3200; 4000 mm

Mass of workpiece (max), : 125 - 200 tons

Diameter of table faceplate : 4000 mm


Diameter range of products processed by vertical caliper :

- in the front position of the rack : 0 ... 4000 mm,

- in rear position of the rack : 4000 ... 8000 mm,


Diameter of the diameters of products processed by the side caliper :


- in front position of the rack : 1500 ... 4000 mm,

- in the rear position of the rack : 5500 ... 8000 mm,


Overall dimensions of the machine :

Length : 13000 mm,

Width : 7300 mm,

Height : 9600; 11000; 13000 mm,

Height above the floor level of 7500; 9000; 11000 mm,

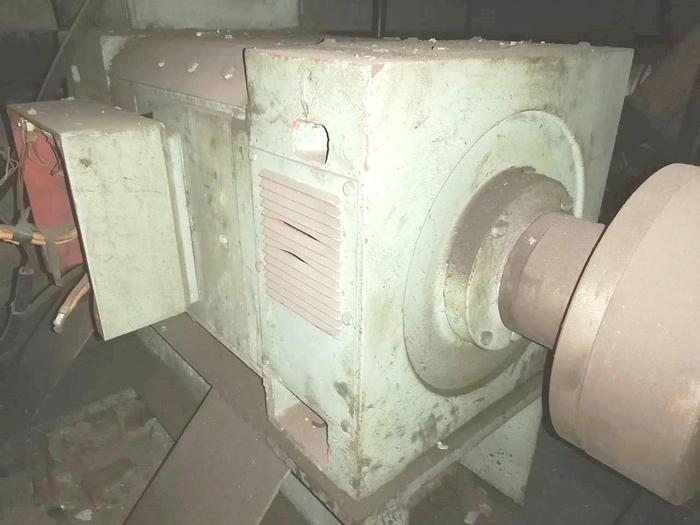

Main drive power (not less) : 110 kW.
