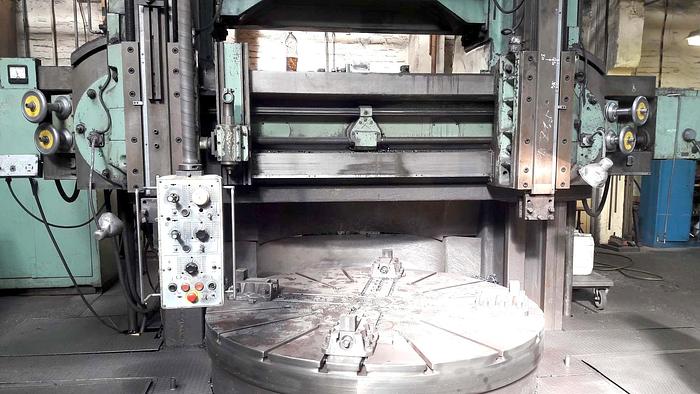

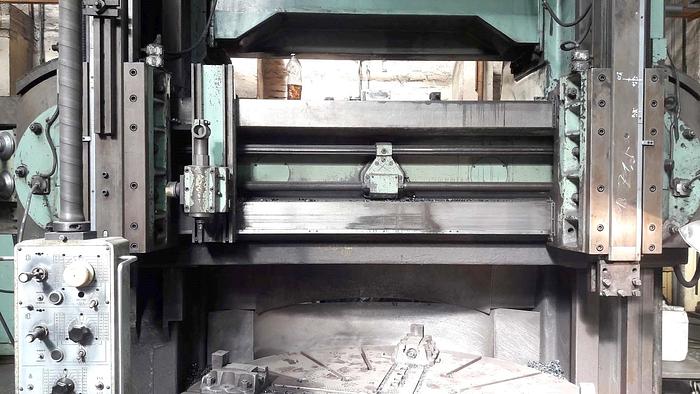

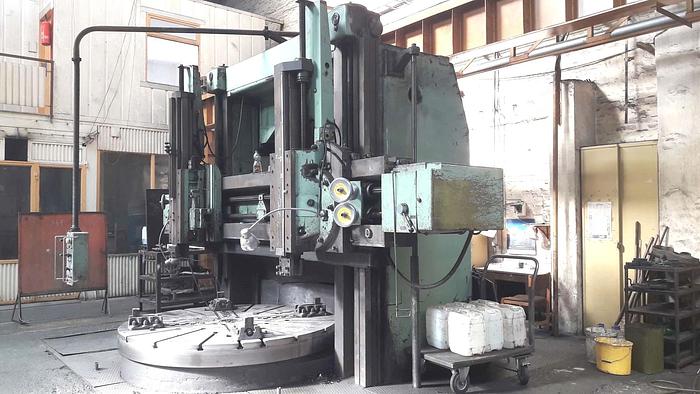

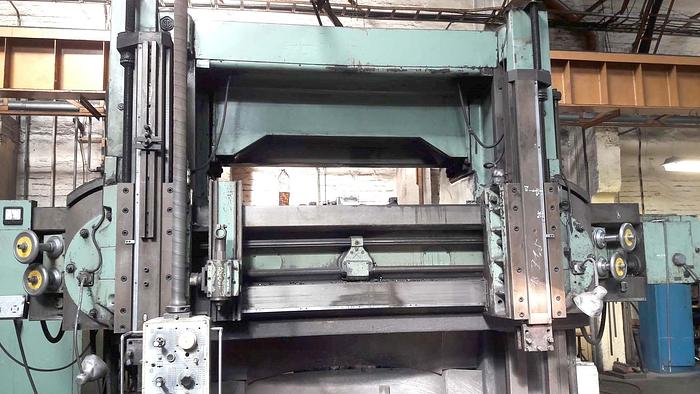

Lathe Vertical Turning 1525

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSedin Russia
Model1525
ConditionUsed
Stock NumberMA0762
Item conditionGood Condition
Capacity tons2250

Description

Max. work piece diameter : 2500 mm,

Table diameter : 2250 mm,

Max. work piece height : 1600 mm,

Max. work piece weight : 16000 kg,

Table speed range: 1,6...80 rpm

Supports : pcs 2

Movement of vertical support, mm:

Vertical : 1200 mm,

Horizontal : 1390 mm,

Movement speed of vertical support : 5...1800 mm/min,

Max. swivel angle of support's slider : 30 degrees,

Main motor power : 45 kW,

Machine weight : 35.5 tons.
