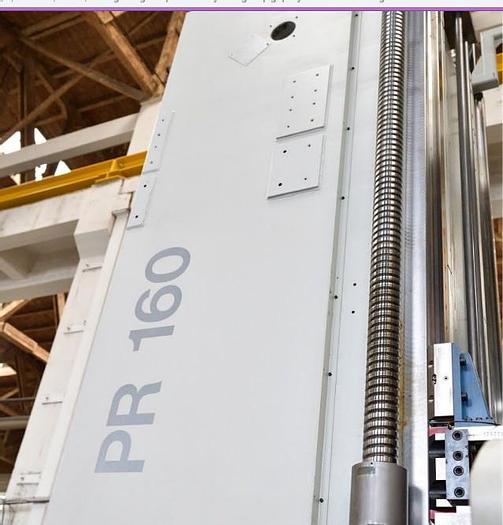

Borer Horizontal Table Type CNC PR160

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelPR160
Year2009
ConditionUsed
Stock NumberMA0767
Item conditionGood Condition
Capacity tons162

Description

Spindle dia : 162 mm,

Travel the axis X : 9000 mm,

Travel the axis Y : 3000 mm,

Travel the axis Z : 1000 mm,

Travel the axis W : 700 mm,


Speed range

I. Gearbox : 5 - 758 rpm,

II. Gearbox : 759 - 2800 rpm,

Main motor output (S1) : 60 kW,

Max.spindle torque (S1) : 2868 Nm,

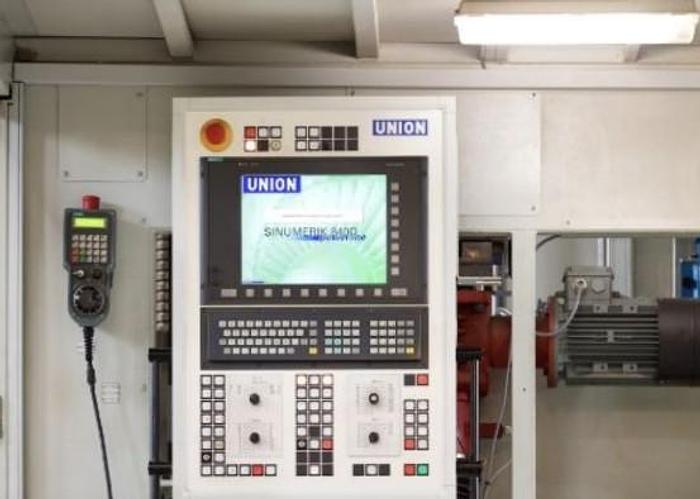

CNC System Siemens Sinumerik 840D


With the rotary table SACEM TP30 - 2000 x 2500 mm,


Rotary table TP30 - 2000 x 2500 (Option)

Table capacity : 30.000 kg,

Clamping plate size : 2000 x 2500 mm,

Size of T grooves : 28 mm,

Distance of T grooves : 190 mm,

Travel of the axis V : 2000 mm,

Speed of the travel : 8000 mm/min,

Revolution speed : 2 RPM,

Position measurement of the axis B absolute angular,

Position measurement of the axis V absolute linear.

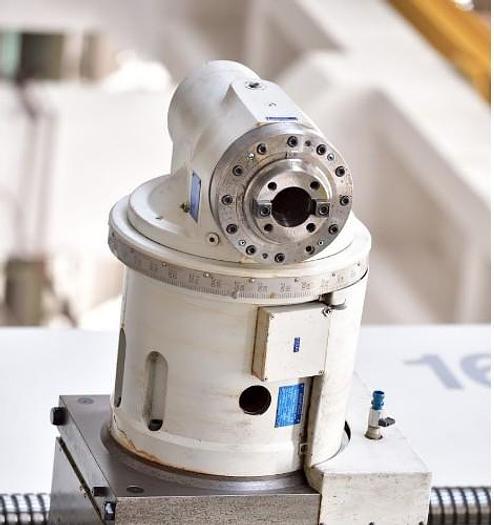

Including the milling head KFDR/90
