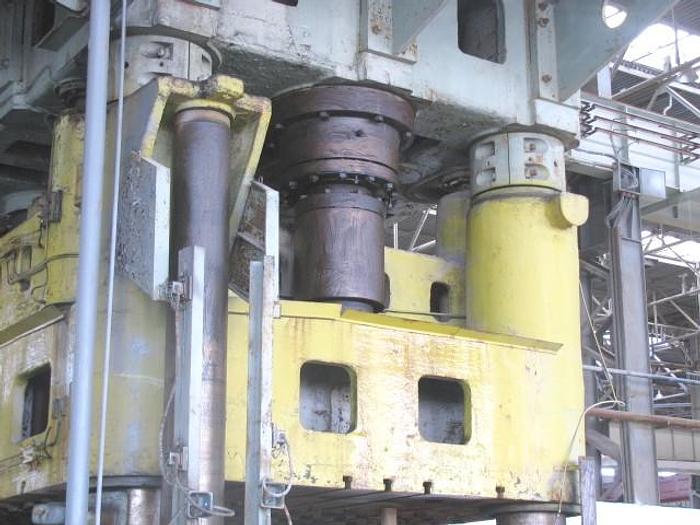

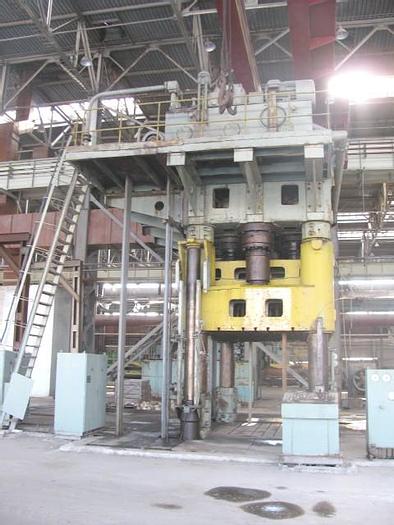

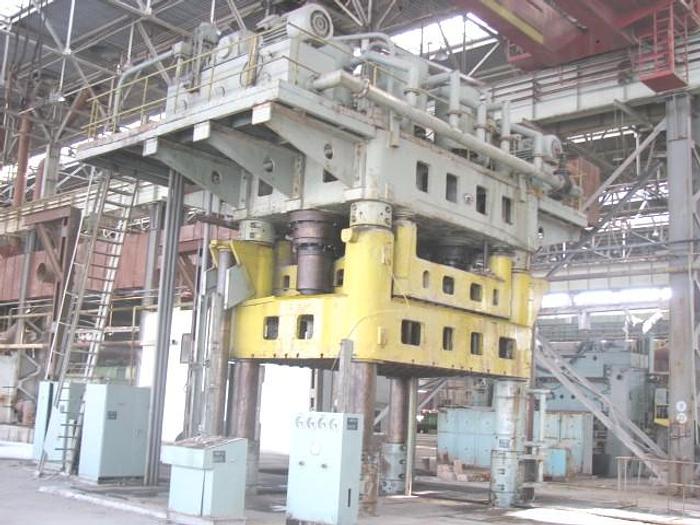

Press Sheet Stamping Hydraulic P236

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerRussian
ModelP236
ConditionUsed
Stock NumberMA0785
Item conditionGood Condition
Capacity tons1600

Description

Capacity : 1600 tons

Rated force : 16000 kN ,

Slider stroke : 1400 mm,

Nominal press force in the simple action : 26000 kN,

Nominal force of return stroke cylinders : 3200 kN,

Distance between table and slider : 2500 mm,

Table size width / length : 3550/3550 mm,

Distance in light between the limiters :

left-right : 2130 mm,

front-back : 3730 mm,

Nominal force of movement of the table : 630 kN,

Table stroke : 3550 mm,

Nominal force of hydraulic booster (Central ejector) : 5000 mm,

Stroke of the hydraulic cushion (Central ejector) above the table : 900 mm,

Nominal fore of side pusher : 630 kN,

Stroke of side ejector above the table : 900 mm,

Maximum permissible eccentricity of load application :

Simple action : 125 mm,

Double action : 200 mm,

Maximum permissible load per pin : 400 kN,

Speed of movable traverse under double action :

Idling : 200 mm/s,

Stroke : 24,4 mm/s,

Return Stroke : 125 mm/s,

The speed of the movable traverse with a simple action :

Idling : 200 mm/s,

Stroke : 14,6 mm/s,

Return Stroke : 125 mm/s,

Table movement speed : 425 mm/s,

Speed of hydraulic booster (Central ejector) :

Up :72,5 mm/s,

Down : 200 mm/s,

Lateral ejector speed :

Up : 212 mm/s,

Down : 295 mm/s,

Working fluid pressure : 20 MPa,

Total capacity of main pumps : 1320 1/min,

Dimensions of the machine (Length x Width x Height) : 18750 x 10560 x 8500 mm,

Height above floor level : 8500 mm,

Main motor power : 132 kW,

Weight : 594.4 tons,

Weight with Foundation : 600.7 tons,

Hydraulic system capacity : 12 m3,

Water consumption for oil cooling : 4-8 m3/h.
