Lathe Vertical Turning KU514F1

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerKolomna Russia
ModelKU514F1
Year1986
ConditionUsed
Stock NumberMA0810
Item conditionGood Condition
Capacity tons4000

Description

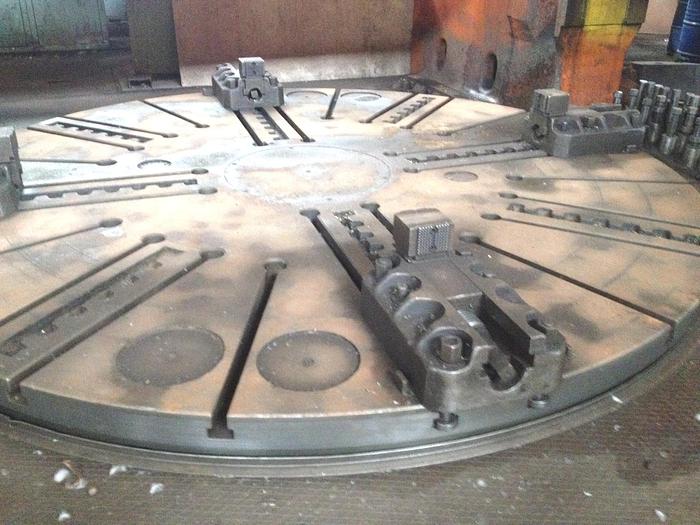

Faceplate dia : 4000 mm,

Max work piece size : diameter 4000 mm,

Height : 2500 mm,

Max work piece weight : 100 tons,

Max Upper left ram vertical stroke : 1600 mm,

Max Upper right ram vertical stroke : 1600 mm,

Faceplate speed range : 0,37-34 rpm (stepless),

Range of work feeds of support on each axis : 0,043-352 mm/rev. (stepless),

Power of main motor: 118 kW,

Overall dimensions : 6100(L) x 10400(W) x 6920(H above floor)mm,

Machine weight : 134.2 kg.
