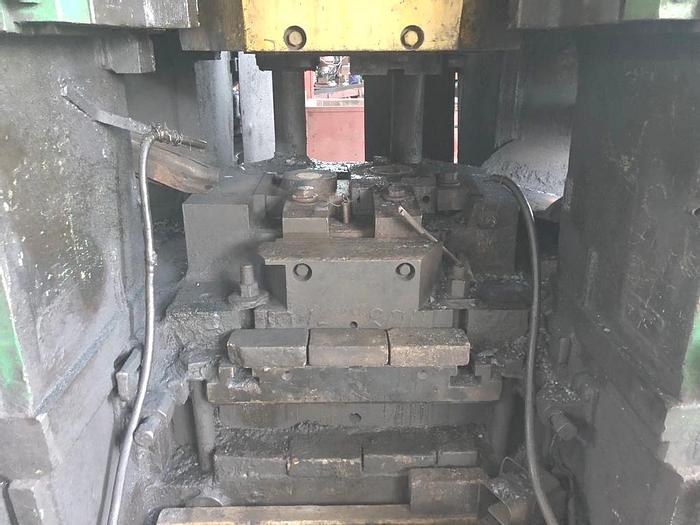

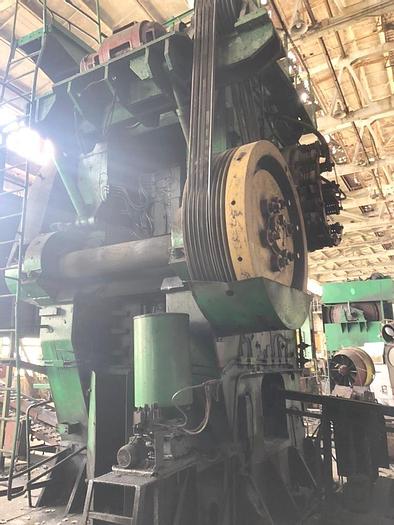

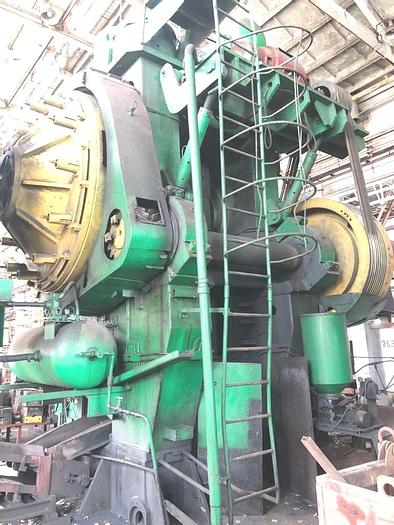

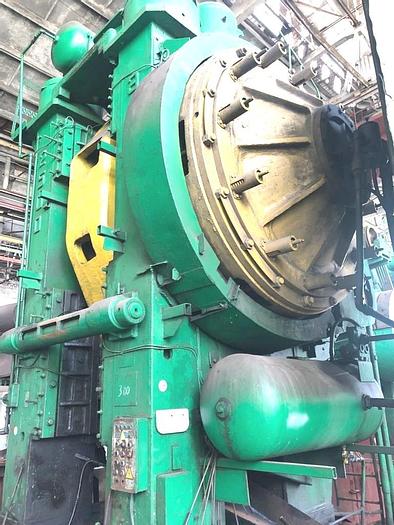

Press Hot Forging K8544

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerVoronezh
ModelK8544
Year1971
ConditionUsed
Stock NumberMA0817
Item conditionGood working condition
Capacity tons2500

Description

Capacity : 2500 tons,

Slide stroke : 350 mm,

Slide strokes per minute (continuous) : 70,

Shut height : 890 mm,

Adjustable distance between table and slide : 10 mm,

Dimensions of openings in L. H. press side wall :

-Height : 1000 mm,

-Width : 720 mm,

Table working surface :

-L-to-R : 1200 mm,

-F-to-B : 1400 mm,

Slide dimensions :

-L-to-R : 1070 mm,

-F-to-B : 1120 mm,

Number of pitmen : 2,

Number of drive stages : 2,

Top ejector mechanism :

-Stroke : 50 mm,

-Capacity : 63 kN,

Bottom ejector mechanism :

-Stroke : 50 mm,

-Capacity : 100 kN,

Main drive motor power : 90 kW,

Overall dimensions :

-L-to-R : 5585 mm,

-F-to-B : 3750 mm,

-Height above floor level : 6800 mm,

Mass (approximately) : 183-5 tons.

NEW spare parts

Backshaft 2500t + new Cranckshaft,

Gear big + small,

Axle boxes,

Hub,

Disks.
