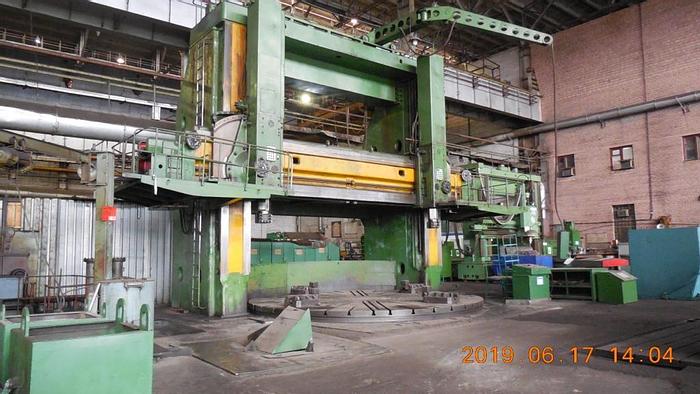

Lathe Vertical Turning KU64

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerKolomna Russia
ModelKU64
Year1974
ConditionUsed
Stock NumberMA0821
Item conditionGood working condition
Capacity tons6300

Description

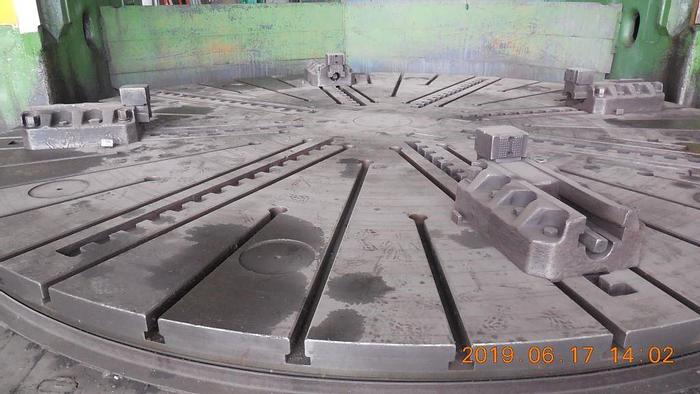

Table Diameter : 6300 mm,

Column to Column : 6300 mm,

Height from table to cross rail : 3690 mm,

Height from table to tool holder : 3550 mm,

Machine Weight : 223 Tons.

Max work load : 125 Tons,

Max work Height : 4000 mm,

Max work diameter : 6300 mm,

Ram Stroke : 2000 mm,

Min work hole diameter : 400 mm,

Ram size : 310 mm X 350 mm,

Ram angle [inner/outer] : 30/15 deg,

Table rotation speed : 4 X stepless 0.3 TO 25 RPM,

Cutting feed speed [X-axis] : stepless : 0.04 TO 285 mm/min,

Cutting feed speed [Z-axis] : stepless : 0.04 TO 285 mm/min,

High speed feeder [X-axis] : 2400 mm/min,

High speed feeder [Z-axis] : 2400 mm/min,

Machine Size : 14200 X 8200 X 9800 mm,

Machine gross wight : 223 tons.
