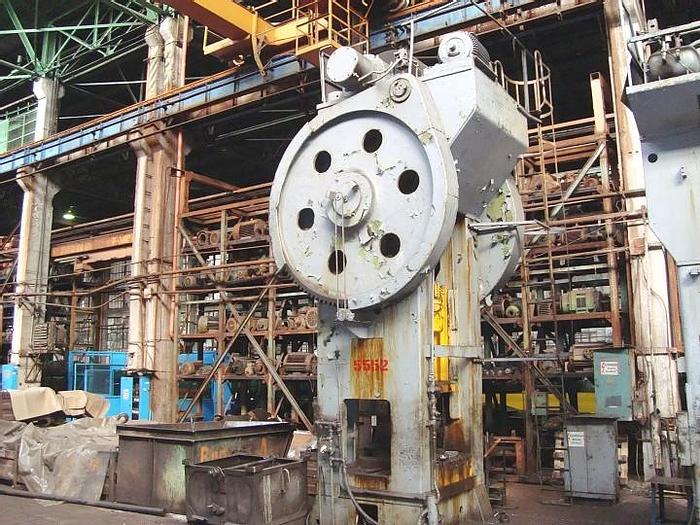

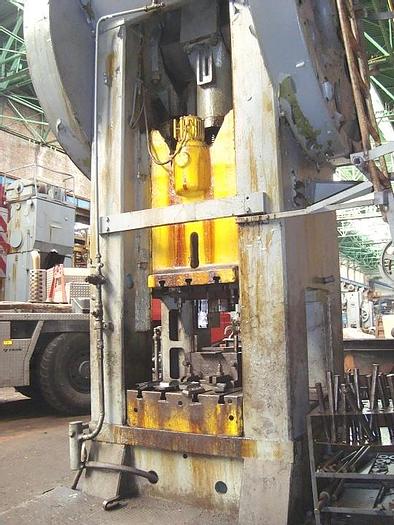

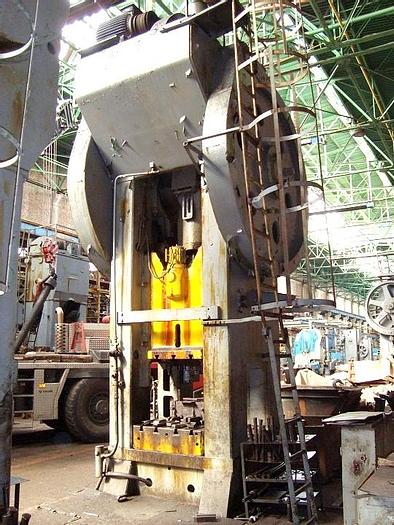

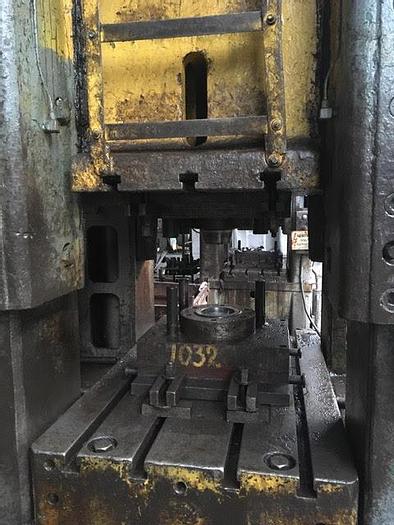

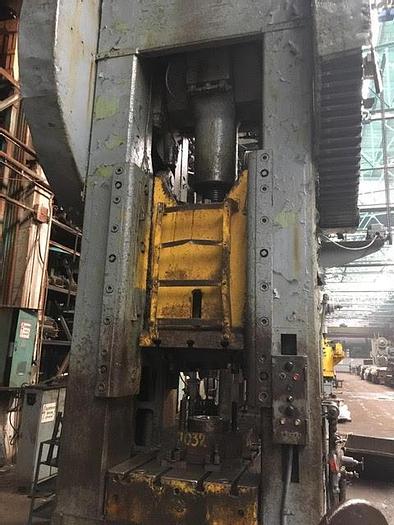

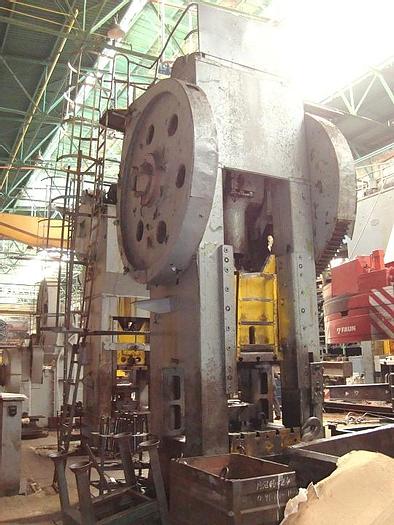

Press Trimming DS630
Specifications
| Manufacturer | Pels Erfurt |
| Model | DS630 |
| Year | 1967 |
| Condition | Used |
| Stock Number | MA0873 |
| Item condition | Good working condition |
| Capacity tons | 630 |
Description
H-frame single crank trimming/stamping press
Capacity : 630 tons,
Stroke of ram : 395 mm,
Ram adjustment : 130 mm,
No. of strokes : 12 per min,
Table size : 1060 x 1520 mm,
Ram size : 800 x 1000 mm,
Size of window on side column : 670 x 880 mm,
Shut height : 850 mm,
Overall dimensions:
-floor space : 2450 x 2280 mm
-height above floor level : 5980 mm
Main motor : 45 kW,
Total power requirement : 48 kW,
Weight of machine : 50 tons.
Technical manuals available.
