Press High Speed Blanking

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerArisa Spain
ConditionUsed
Stock NumberMA0888
Item conditionUnder power
Capacity tons630

Description

Capacity : 630 tons,

FORCE POINT : 7 mm,


Force measurement

Free space between columns (frontal) : 4930 mm

Holes of Uprights : 2200 X 2085 mm,

HEIGHT PRESS FROM GROUND : 730 m,

PRESS WEIGHT : 260.000 Kg,

T measurements pcs : 12

Dampers pcs : 4


SLIDE


OVERLOAD stroke : 25 mm,

Space between upright front and back : 4500 mm,

Surface of the bed : 4500 X 2200 mm,

Nrs ofhydraulic clamps bolster : 12


UPPER DIE FIXTURE (SLIDE CLAMPS) : HYLMA MOTORIZADO 250 (CAN BE EXPANDED

Stroke : 350 mm,

       : 1500 mm,


SLIDE REGULATION : 480 mm,

MAX DIMENSIONS OF UPPER DIE : 4500 X 2000 mm,

MAX. UPPER DIE WEIGHT : 20.400 Kg,


GUIDE OF SLIDE : Roller bearings

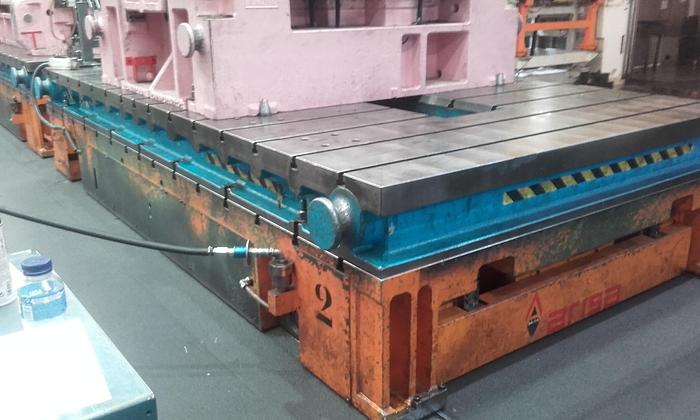

MOVING BOLSTER

SURFACE OF BOLSTER AREA : 4500 X 2400 mm,

Height bolster plate : 550 mm

MAX LOAD IN MOVING BOLSTER : 30.000,00 Kg,


DRIVERS

Stroke/min: 15-60 spm,

Clutch/brake : 59-67 bar,

Flywheel : 400 rpm,

Power motor : 160 kw,

Power sliding regulation : 550 kw,



Technical data

Power voltage/frequency : 400-50 V-Hz

Control voltage

Cable section power cable : 3 x 150+70 Mm2

Bar 6

PH

S 0,241

Db(A) 77

Db(A) 99
