Press Hot Forging KG4048C

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerTMP Voronezh Russia
ModelKG4048C
ConditionNew
Stock NumberMA0908
Item conditionBrand New
Capacity tons6500

Description

Capacity: 6500 tons

Limit of capacity : 700 mm,

Ram Stroke : 460 mm,

Stroke per minutes :

Continuous : 40

Single : 14

Shut height: 1400 mm,

Shut height adjustment*2 : 13 mm,

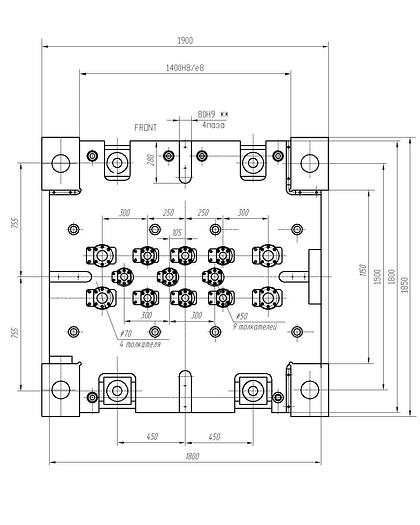

Ram size :

Left to right : 1900 mm,

Front to back : 1850 mm,

Table size :

Left to right : 2100 mm,

Front to back : 1950 mm,

Top ejector*3 :

Force : 150 kN,

Run : 40 mm,

Bottom ejector*3 :

Force : 300 kN

Run :0...50 mm,

Size of windows in uprights

Width : 1120 mm,

Height : 1550 mm,

Overall dimensions of press:

Left to right : 8680 mm,

Front to back : 6450 mm,

Height of press above floor level : 9100 mm,

Power of the main motor : 355 kW,

Weight of press kg : 560 tons.
