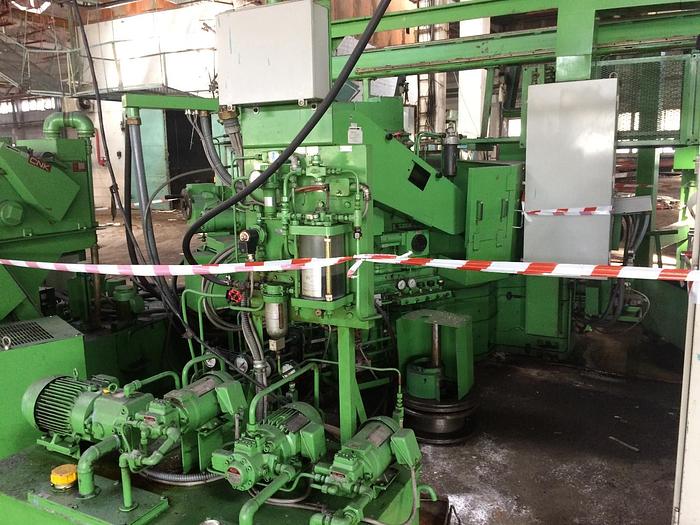

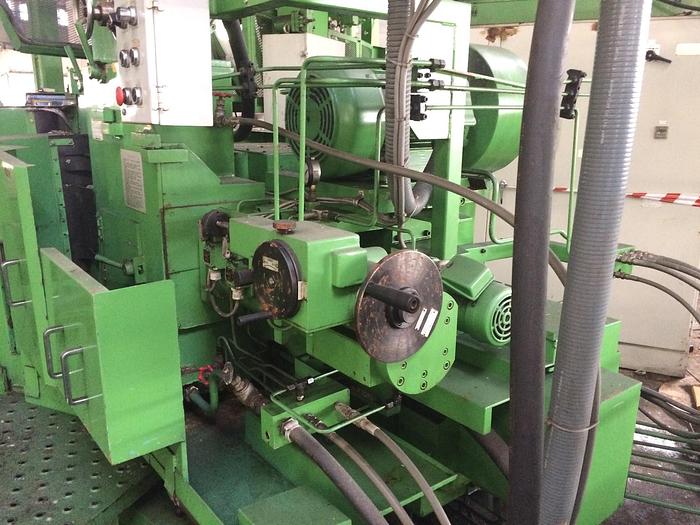

Grinder Cylindrical 45M

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerToyoda,Japan
Model45M
Year1990
ConditionUsed
Stock NumberMA0947
Item conditionGood Condition
Capacity tons0

Description

Control Allen Bradley Panel View 600,

Wheel OD 24.00 in 609.6 mm,

Wheel ID 12.00 in 304.8 mm,

Wheel Width Maximum 5.90 in 149.86 mm,

Wheel Head Angle Fixed Angle - 30 Degrees From Workhead Rotational Axis,

Distance Between Centers 39.37 in 1000 mm,

Swing Over Table 12.60 in 320.04 mm,

Maximum Workpiece Weight 550 lbs 249.48 kg,

Maximum Grinding Diameter 9.06 in 230.12 mm,

X Axis Wheel Head Travel 13.78 in 350.01 mm,

Z Axis Saddle Travel 39.37 in 1000 mm,

Wheel Spindle Power 20.00 HP 14.91 kW,

Wheel Spindle Speed 8850.00 ft/min 2697.48 m/min,

Wheel Dresser Servo-Driven Single-Point Dresser,

Work Head Spindle Taper #4 Morse Taper,

Work Head Spindle Speed 30 - 360 RPM Infinitely Variable,

Foot Stock Quill Taper #4 Morse Taper,

Foot Stock Quill Travel 2.36 in 59.94 mm,

Quantity No. : 2
