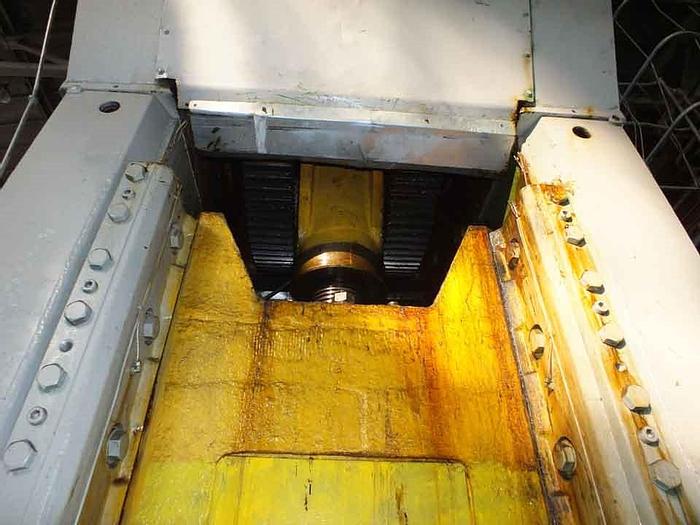

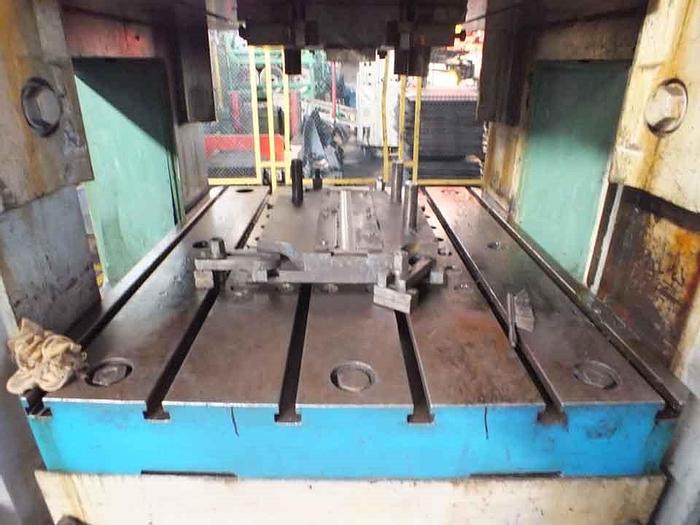

Press Trimming PKZE1250

Capacity : 1250 tons,

Slide stroke : 500 mm,

Slide adjustment : 215 mm ,

Maximum shut height between bolster plate and slide (stroke down, adjustment up) : 860 mm ,

Bed area (width x depth) : 1600 x 1850 mm,

Slide area (width x depth) : 1300 x 1400 mm ,

Opening in the bed (width x depth) : 1100 x 1100 mm ,

Main motor rating : 90 kW ,

Min number of no-load stroke 8,

Cushion force in the bolster : 2000 kN ,

Cushion stroke : 200 mm ,

Height above floor : 7900 mm ,

Press weight : 130 tons.
