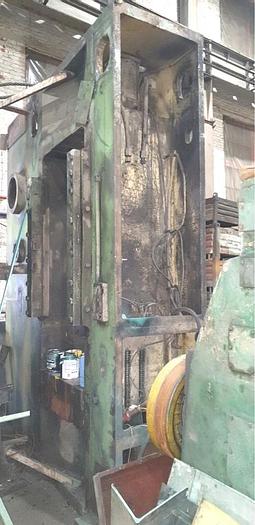

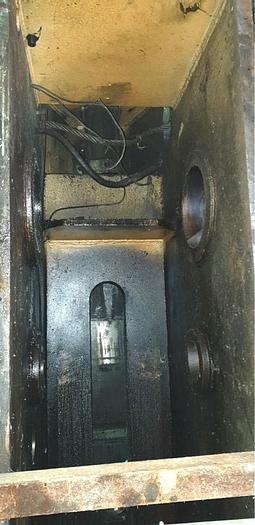

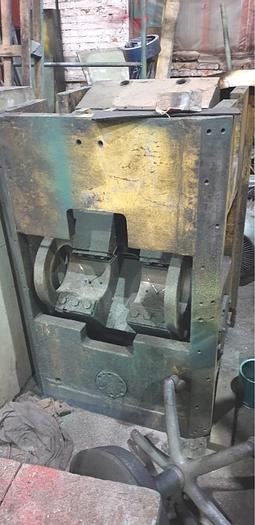

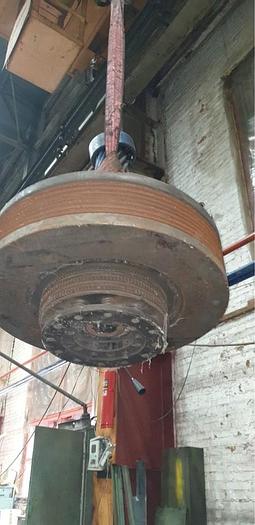

Press Knuckle Joint Coining KB8340
![Used Press Knuckle Joint Coining KB8340](https://i.machineryhost.com/89c8d124605c55fb610b26e7acde2622/large-NA30668_KB8340_1.jpg)
Specifications
Manufacturer | Barnaul, Russia |
Model | KB8340 |
Condition | Used |
Stock Number | MA1016 |
Item condition | Good condition |
Capacity tons | 1000 |
Description
Capacity : 1000 tons,
Slide stroke : 170 mm,
Strokes per 1 min : 32,
Shut height : 470 mm,
Bolster plate-to-ram adjustable stroke : 16,
Table size : 800 x 800 mm,
Bolster plate thickness : 140 mm,
Lower knockout :
Stroke : 110 mm,
Force : 320 kN,
Upper knockout :
Stroke : 10 mm,
Force : 100 kN,
Main motor power : 40 kW, 380 V,
Overall dimensions : 2950 x 1950 x 4090 mm,
Weight : 26 tons.
