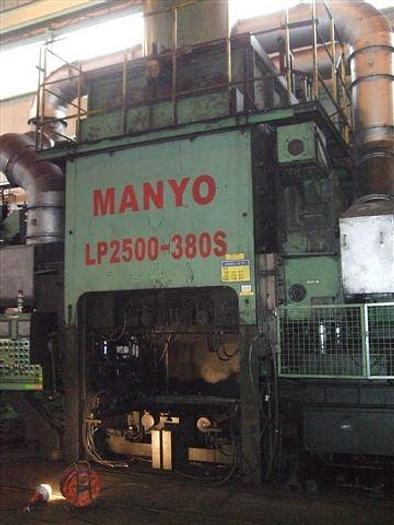

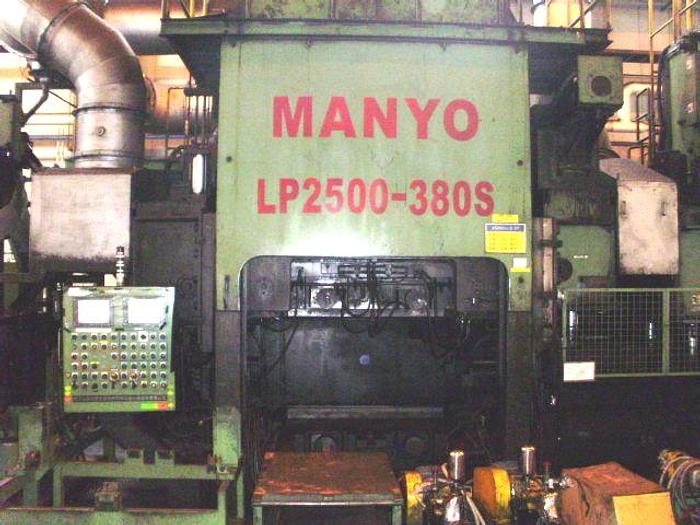

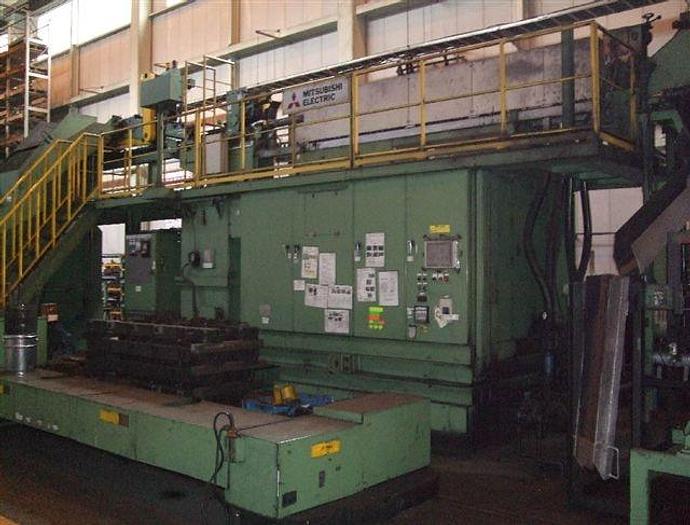

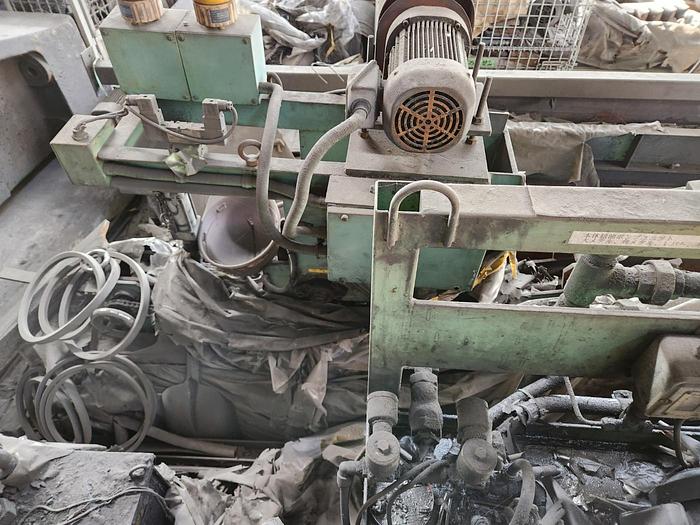

Press Hot Forging Manyo LP2500-380S

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerManyo
ModelLP2500-380S
Year2006
ConditionUsed
Stock NumberMA1021

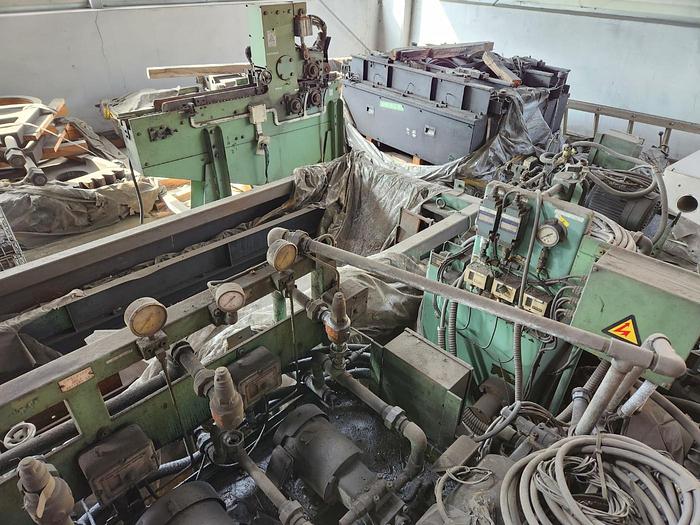

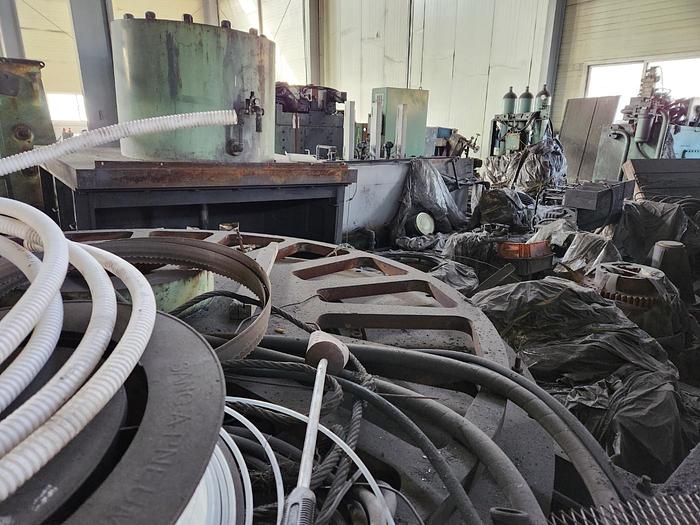

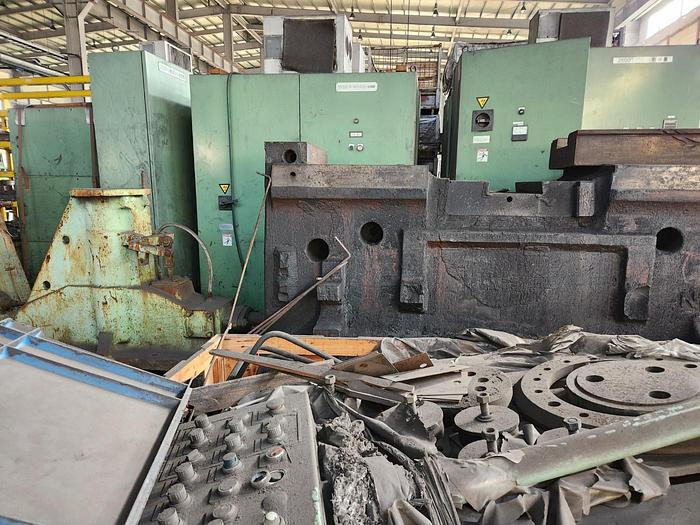

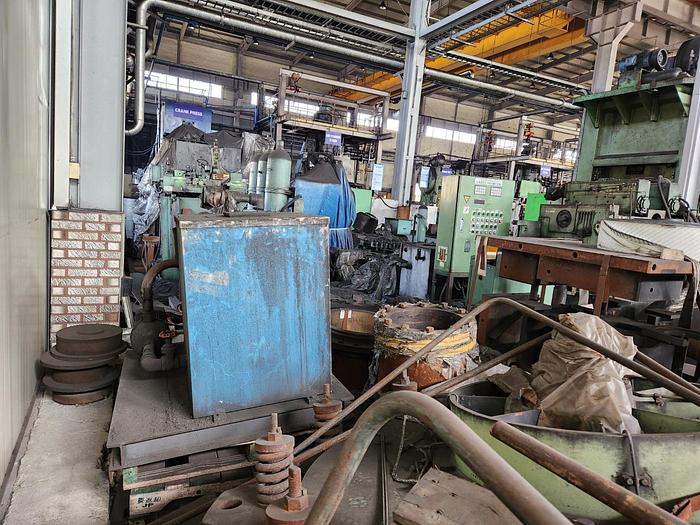

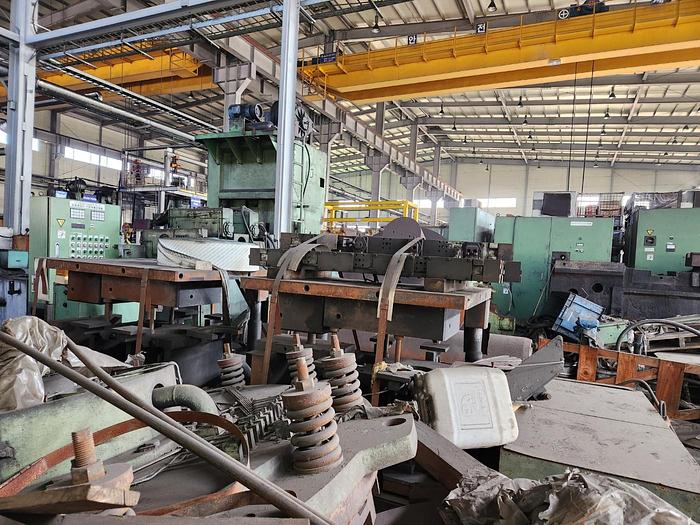

Item conditionGood condition, dismantled
Capacity tons2500

Description

Capacity : 2500 tons,

Stroke length: 380 mm,

No. of stroke per minutes: 40 spm,

Shut-height: 1200 mm,

Die-height: 630 mm,

Slide Adjust: 20 mm,

Die-pitch: 350 mm、

Slide area(W x D ): 1860 x 900 x 250 mm wear-plate,

Bolster area (W x D x T): 2580 x 1260 x 280 mm,

Span of front Columns: 1940 mm,

Hydraulic upper ejector:4 stages, 20 ton, St: 50 mm,

Hydraulic lower ejector: 4 stages, 1 st 15 ton, 2 nd 30 ton, 3 rd 30ton, 4 th 15 ton, all St:110 mm,

Main motor: 200 kW, AC 3,300 V,

Slide adjust: 11 kW 220 V,

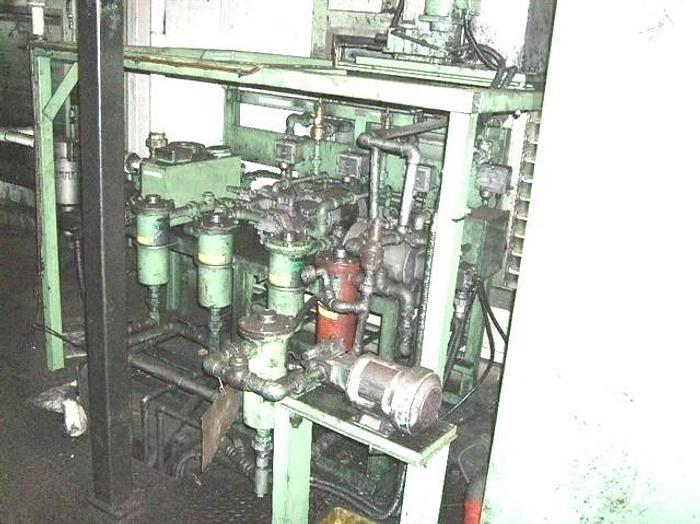

Pump unit motor: 45 kW 220 V.

MT-300:5-axis servo-motor drive Transfer system: ↑Working beam driving unit :

(AC servo-motor 7kWx4 units, 8kWx1 unit、Lifting: 10~200mm, Clamping:10~160mm)

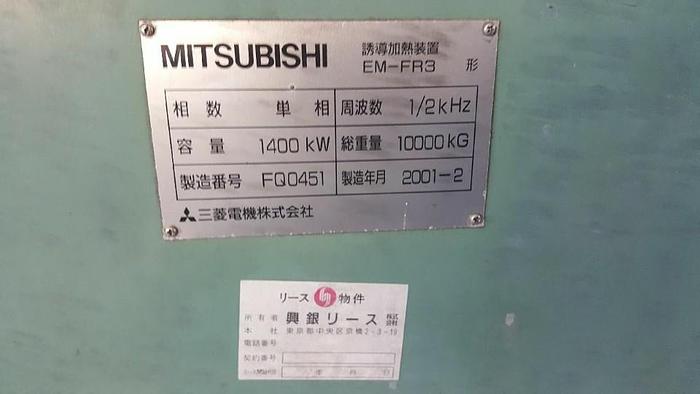

With Mitsubishi , 1400Kw ) with Accessories , New 2001.

Technical manuals available.
