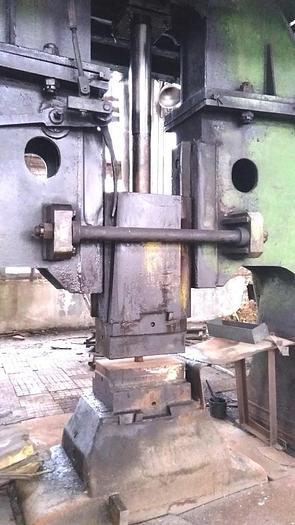

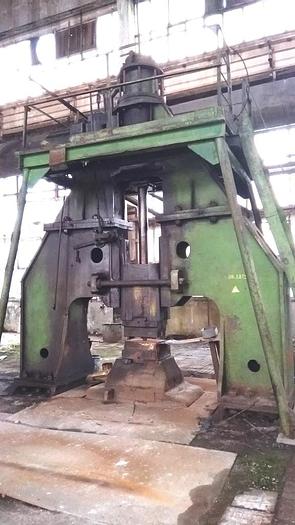

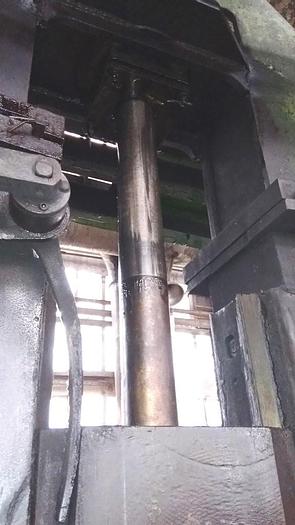

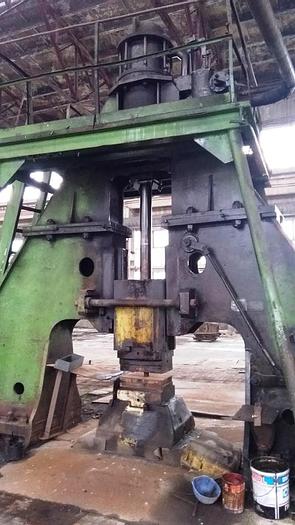

Hammer Drop Forging Open Die M1343A

Capacity : 2 tons,

Impact energy: 50 kj,

Max number of blows per 1 minute: 56,

Distance clear between columns: 2360 mm,

Working zone daylight: 530 mm,

Bottom die impression to floor distance: 750 mm,

Die impression size: 530 x 300 mm,

Steam pressure: 0,7-0.9 MPa,

Compressed air pressure: 0.6-0.8 MPA,

Overall dimensions: 4900 x 1930 x 5000 mm,

Mass (less anvil block): 20.1 tons,

Mass of anvil block: 30 tons.
