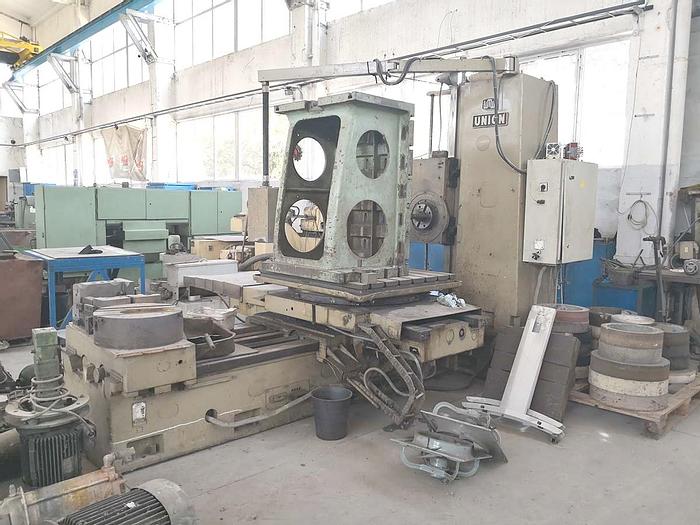

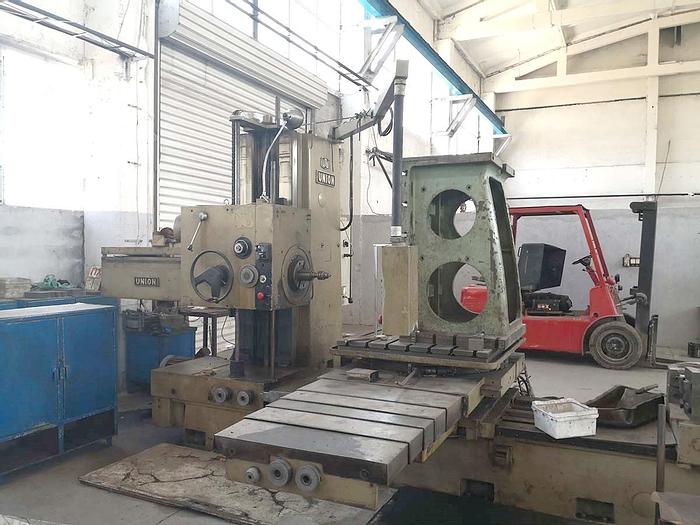

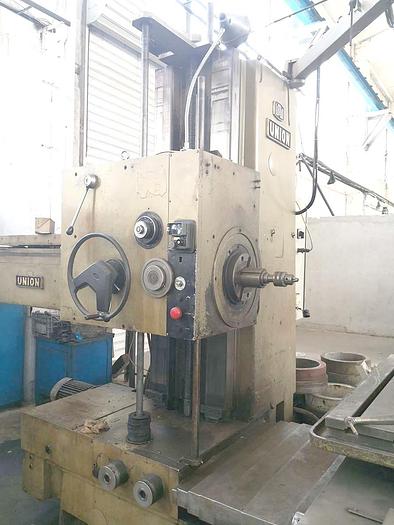

Borer Horizontal Table Type BFT90/3

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerWMW Union ,Germany
ModelBFT90/3
Year1978
ConditionUsed
Stock NumberMA1037
Item conditionGood working condition
Capacity tons90

Description

Spindle diameter : 90 mm,

Tool taper : ISO 50 DIN 2048,

Spindle speeds range : 8-1600 rpm,

Table dimensions : 1000×1120 mm,

Table rotation : 360 °,

Maximum table load : 2500 kg,

Table cross travel (X) : 1000 mm,

Table longitudinal travel (Z): 1600 mm,

Headstock vertical travel (Y) : 1000 mm,

Spindle travel (W) : 710 mm,

Feed range : 1 - 2500 mm/min,

Total motor power : 11 kW,

Weight of the machine : 9310 kg,

Facing chuck & taistock,

Angular/cubic table.
