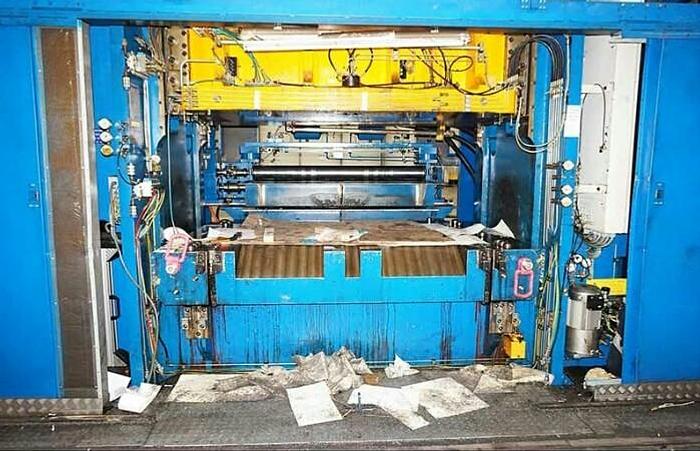

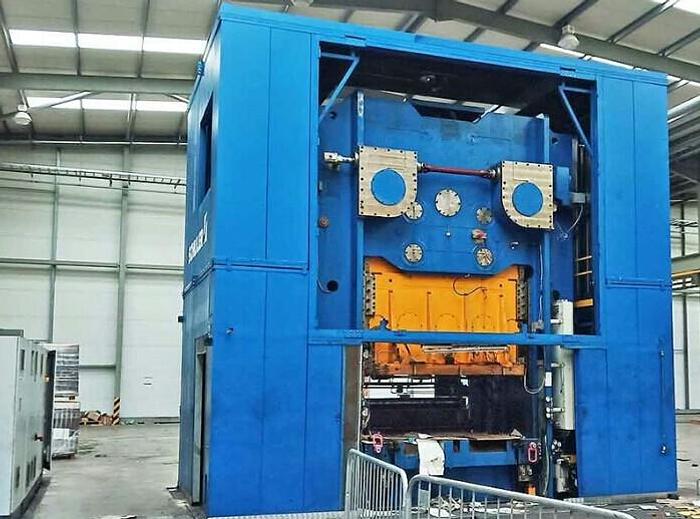

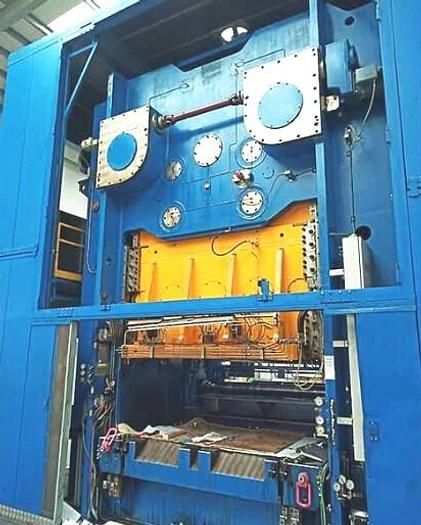

Press Sheet Stamping Mechanical Schuler German

H-Frame Knuckle Joint Press

Capacity : 1500 tons,

Stroke : 80 mm,

Bed L-R : 2500 mm,

Bed F-B : 1600 mm,

Max Operating Pressure : 400 Bar,

Strokes per minute : 20 to 70,

Max. Rotational speed of fly wheel : 362 rpm,

Tool Holder adjustment : 10 mm,

Feeder - strip width : 440 - 1850 mm,

Max. Tool dimensions : 2000 x 1600 x 800 mm,

Max. Tool weight : 15000 kg (33,000 lbs),

Operational pressure min/max for compressed air : 6.0 bar,

Clutch/brake : 5.5-6.0 bar,

Approx. Weight of machine :110,000 Kg,

Approx. Shipping weight : 120,000 Kg,

Electrical books are available.
