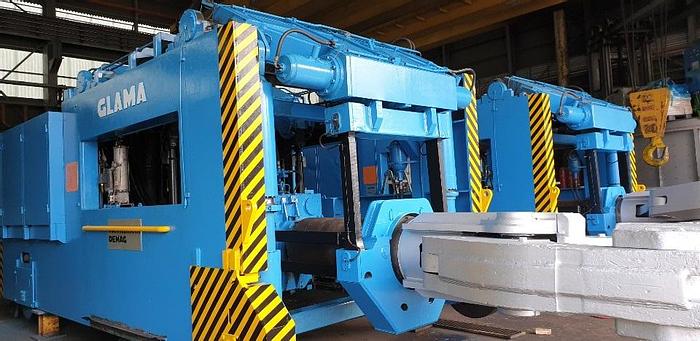

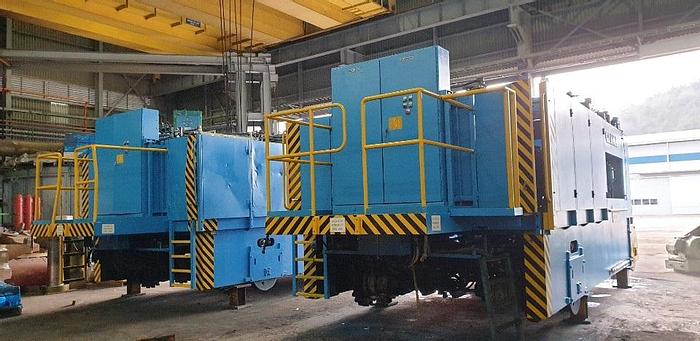

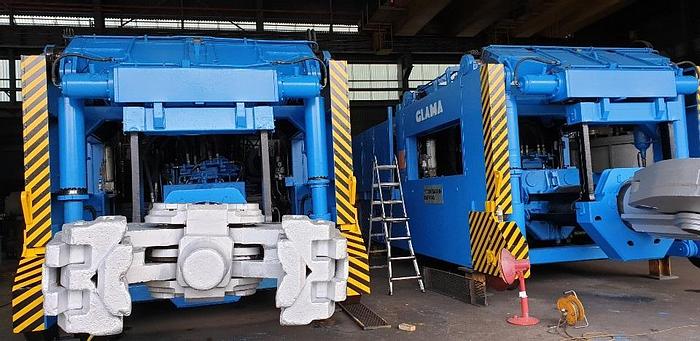

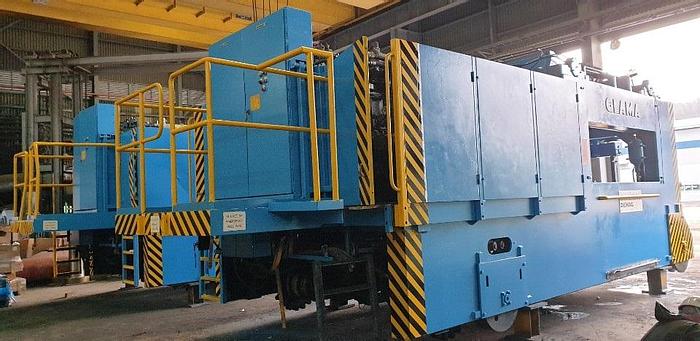

Manipulator Glama

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerGlama
Year1991
ConditionUsed
Stock NumberMA1054
Item conditionGood working condition
Capacity tons12

Description

Capacity : 12 tons,

Carrying Capacity : 120 KN,

Clamping moment : 250 kNm,

Load moment/related to center of front wheels : 480 kNm,

Peel rotating torque : 25 kNm,

Traction force : 100 kN,


Parallel Horizontal Position of tongs center above floor :

Min : 1050 mm,

Max : 1950 mm,

Parallel vertical stroke : 900 mm,


Vertical tilt of tongs :

Up 6 inch,

down : to floor,

Parallel side shift : +- 200 mm,

Angular side shift :+- 4 inch,

Rail gauge : 3200 mm,


Tongs opening range for rounds:

Max : 1397 mm,

Min : 330 mm,

Tongs opening range for squares :

Max : 1219 mm,

Min : 330 mm,

Tongs opening range for rounds w/inserts :

Max : 787 mm,

Min : 152 mm,

Tongs opening range for squares w/inserts :

Max : 660 mm,

Min : 152 mm,

Max turning circle of fully opened tongs : 2260 mm,

Wheel loads without ingot :

each front wheel : 13 tons,

each rear wheel : 12 tons

wheel loads with ingot :

each front wheel : 24 tons,

each rear wheel 7 tons,


Infinitely adjustable travel speed forwards & backwards:

forging : zero to 600 mm/sec,

transporting : zero to 833 mm/sec,

Peel rotation speed 0-23 rpm,

peel lifting and lowering speed : 140 mm/sec,

Vertical tilt speed both up and down : 3 degree / sec,

Parallel side shift speed : 100 mm/sec,

Tongs opening or closing time : 7/sec

Electric capacity installed:

Oil heaters : 24.2 kW,

electric motors (2) : 75 kW ea,

electric motor for grease pump : 0.37 kW,

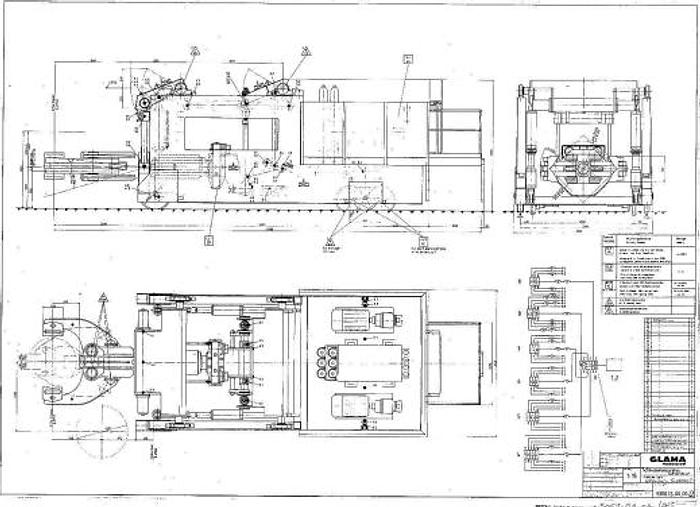

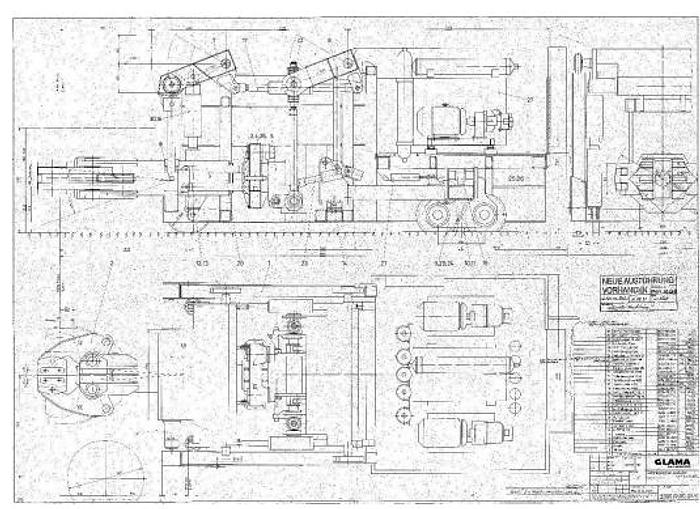

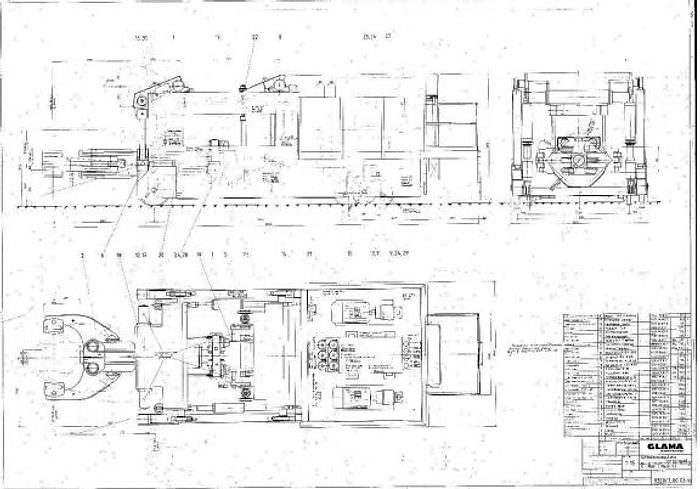

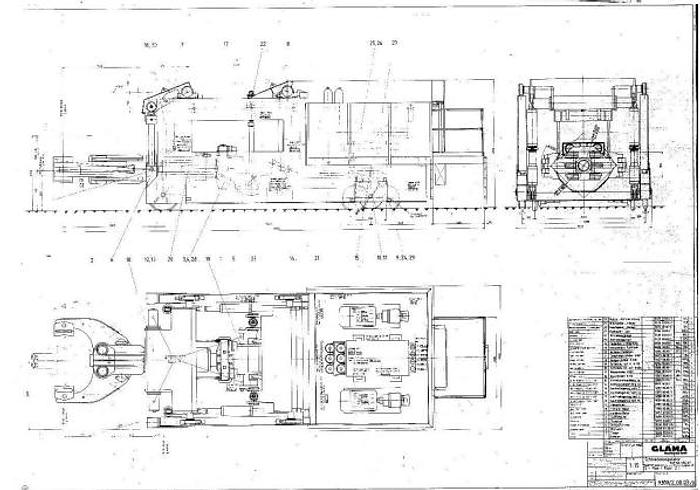

Dimensions:

overall length : 11,260 mm,

overall width : 3720 mm,

overall height : 3300 mm,

Net weight of each manipulator : 62.16 tons


Complete with:

Hydraulic System

Lubrication system

Electrical system and controls

An Extensive assortment of spare parts

Fully refurbished by Korean Company.

With Spare Parts , new painting, PLC control panel & HMI.

Refurbished in 2020
