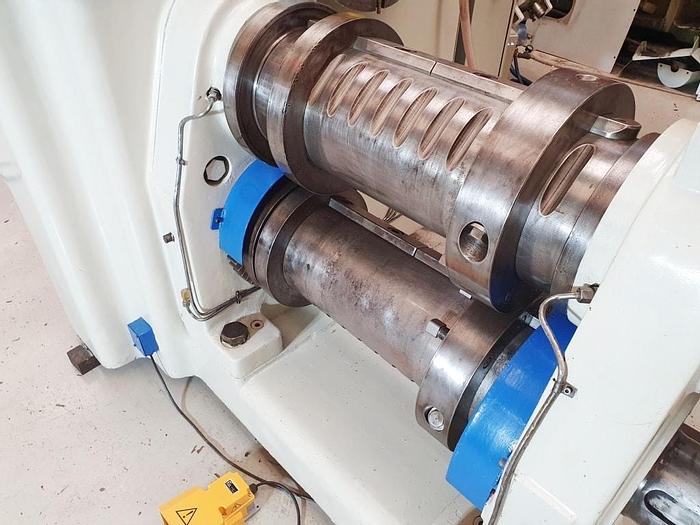

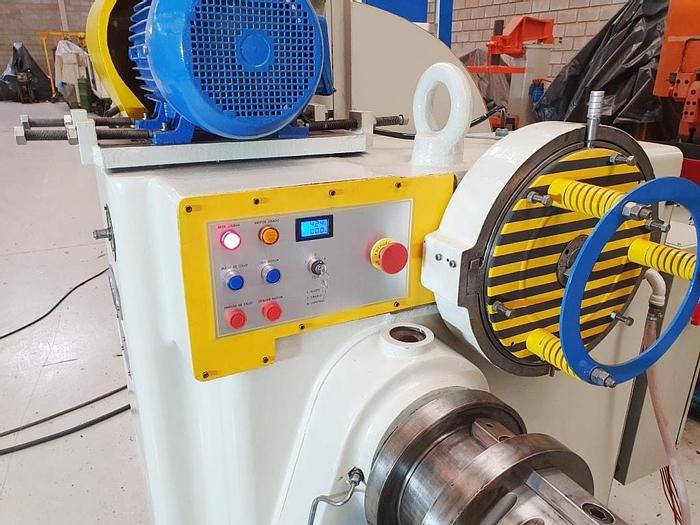

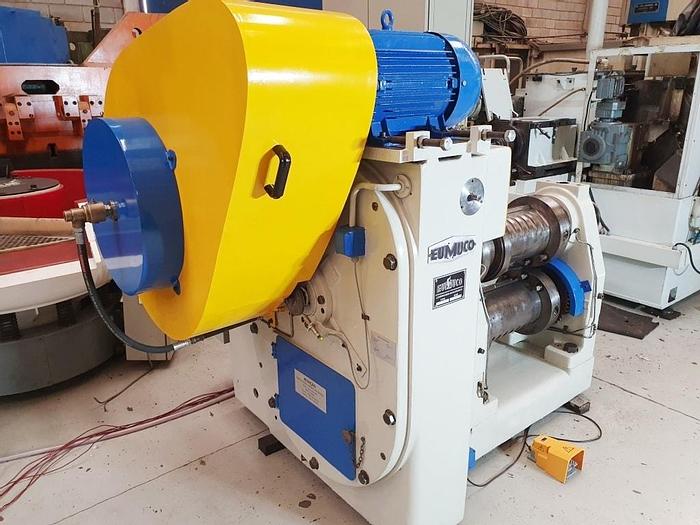

Reduce Forging Roll RW1

Max. Dia of Workpiece : 55 mm,

Diameter of Rolling Segment : 370 mm,

Usable width of middle roll : 500 mm,

Usable width of outer roll : 160 mm,

Max length of working piece-middle : 570 mm,

Max length of working piece-outside : 890 mm,

Roll revolutions (1/min RPM) : 80 min~1,

Roll Adjustment : 15 mm,

Drive Power : 25 HP,

Electrics : 440v/3/60,

Dimensions (W x L x H) : 2400 mm x 1350 mm x 2100 mm,

Total weight : approx 5.4 tons.

Retrofit
