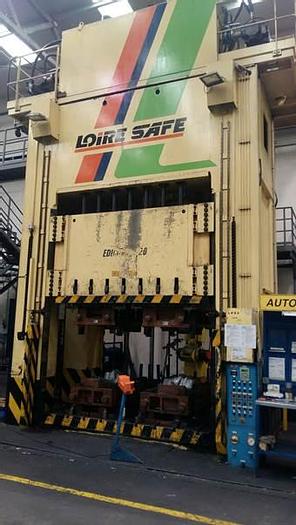

Press Sheet Stamping Hydraulic Loire Safe

Capacity : 800 tons,

Stroke : 1600 mm,

Table : 2500 X 1700 mm,

Speed Max Approx : 400 mm/s,

Adjustable maximum force : 80 x 800 mm,

Return force : 81 tons,

Route of the mobile plate : 1600 mm,

Maximum opening between fixed table and moving plate : 1900 mm,

Dimension of the table : 2800 x 2000 mm,

Slots in t : 28,

Front passage between mounts : 2850 mm,

Moving plate guiding height : 1400 mm,

Guide plate width : 100 mm,

Table height above level zero : 800 mm,

Maximum table height above zero level : 7.785 mm,

Side passage between mounts : 1000 mm,

Speeds

Quick approach : 400 mm/seg,

Work : 526 tons, cosntant : 42,7 mm/seg,

From 536 to 800 tons , variable auto adjustable 42,7 mm/seg,

Limitation of the maximum speed by proportional valve and potentiometer,

With 2 pumps : 47,2 to 21 mm/seg,

With 1 pump : 21 to 5 mm/seg,

Return : 420 mm/seg,

Down time : 180 ms

Safety distance 288 mm.

Maximum strength of adjustable cushion : 32 to 320 tons,

Cushion table dimensions : front 2500 mm, bottom 1700 mm,

Cushion depth : 400 mm,

Ascent and descent speed : 150 mm/seg,

Candle diameter : 50 mm,

Hole diameter in the table for the sail passage : 52 mm,

Canceling the force of the cushion at the end of work to allow to use the full force of the filler in the final stamping

Weight : 100 tons,

Cooling water flow at : 20º c 154 l/min,

Ambient temperature down at : 40º

Relative humidity less than 85 %

Tools

Maximun dimensions :

Front : 2800 mm,

Bottom : 1800 mm,

High : 1500 mm,

Maximum weight :

Mobile part : 15 tons,

Total : 40 tons,

Electric connection

Power : 246 kw,

Weight : 85 tons.

Complete documentation available.
