Sheet Stamping Line Mechanical

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerKomatsu
Year2007
ConditionUsed
Stock NumberMA1105
Item conditionGood Condition
Capacity tons1500

Description

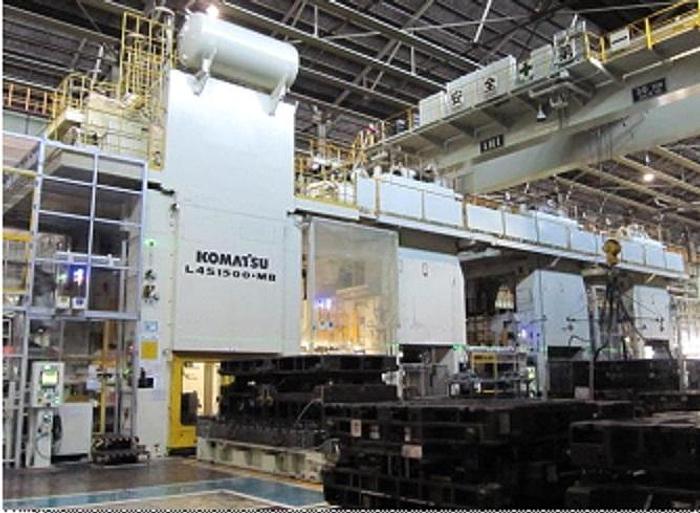

Sheet Stamping Mechanical Tandem Line


Capacity : 1500 tons,

Stroke : 900 mm,

Stroke per min : 18,

Die Height : 1250 mm,

Adjust : 400 mm,

Bolster : 3400 x 2000 mm,

Slide : 3400 x 2000 mm,

Die Cushion : 300 tons,

Cushion Stroke : 300 mm,

Cushion Pad : 2930 x 1510 mm.


Capacity : 800 tons,

Stroke : 750 mm,

Stroke per min : 15,

Die Height : 1620 mm,

Adjust : 400 mm,

Bolster : 3400 x 2000 mm,

Slide : 3400 x 2000 mm,

Die Cushion : 120 tons,

Cushion Stroke : 300 mm,

Cushion Pad : 2830 x 1310 mm.


Capacity : 800 tons,

Stroke : 750 mm,

Stroke per min : 15,

Die Height : 1620 mm,

Adjust : 400 mm,

Bolster : 3400 x 2000 mm,

Slide : 3400 x 2000 mm.


Capacity : 600 tons,

Stroke : 750 mm,

Stroke per min : 15,

Die Height : 1620 mm,

Adjust : 400 mm,

Bolster : 3400 x 2000 mm,

Slide : 3400 x 2000 mm.


This tandem line consisting of 1 x 1500 ton, 2 x 800 ton and 1 x 600 ton press.


The 1500 ton and one of the 800 ton presses have die cushions.

The other two presses don’t have die cushions.
