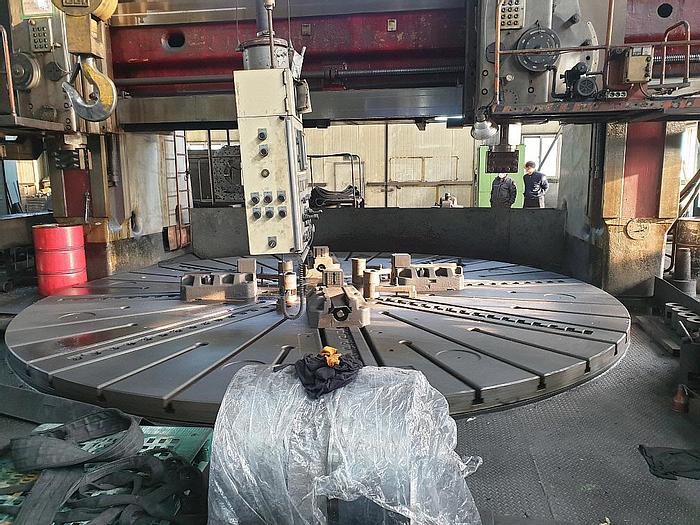

Lathe Vertical Turning CNC 1563

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerKolomna Russia
Model1563
Year1983
ConditionUsed
Stock NumberMA1107
Item conditionexcellent working condition
Capacity tons6300

Description

Table diameter : 6300 mm,

Swing : 6300 mm,

Height of workpiece : 3200 mm,

Course of vertical supports sliders : 2000 mm,

Corner of supports turn : - 15 and +30,

Weight of the product workpiece on a faceplate : 160 tons,

Effort of cutting to a right support : 100 kH,

Effort of cutting to the left support : 80 kH,

Max. total effort of cutting by two supports : 160 kH,

Limits of vertical and horizontal feeding : 0,0352 - 285 mm/min

Table speed : 0,28 - 25,5 rpm,

Total weight of Machine : Approx 223 tons,

Remark :

1. Right Tool head – Controlled by CNC Fanuc 0 T.

2. Left Tool head – Controlled by Conventional Type.

1983 Retrofit 2012
