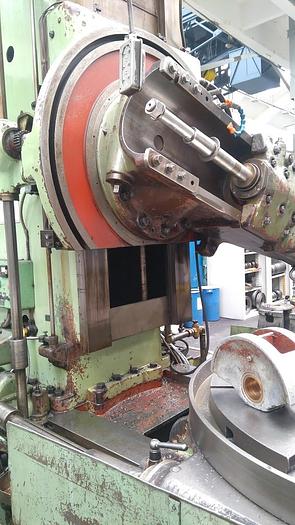

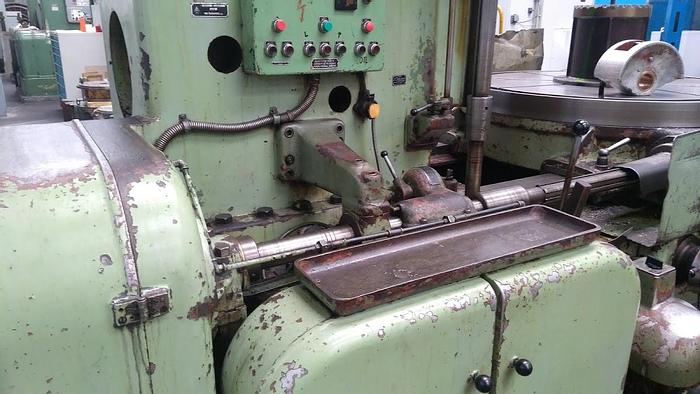

Gear Hobber FO25

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerTos
ModelFO25
ConditionUsed
Stock NumberMA1109
Item conditionGood Condition

Description

Max module : 25,

Max diam. of the gear : 2500 mm,

Max diam. of the gear with outboard support : 1300 mm,

Distance between axis of a spindle and camping arbor : 80-1630 mm,

Max diam. of the gear by tangential method 10 grades : 2400/800 mm,

Max diam. of the gear by tangential method 60 grades : 500/700 mm,

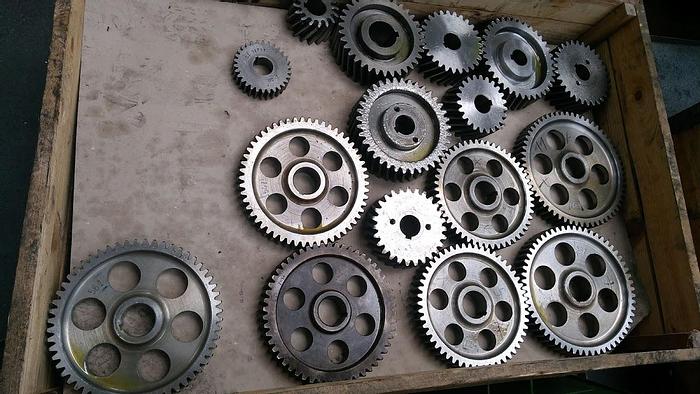

Max number of teeth with standard change gears : 448,

Max face over : 1500 mm,

Diam. of the gear : 800 mm,

Max face under : 1500 mm,

diam. of the gear : 750 mm,

Max hob diam. : 340 mm,

Max hob length : 500 mm,

Revolutions steps 8,

Revolution of hob per min : 12, 5-63,

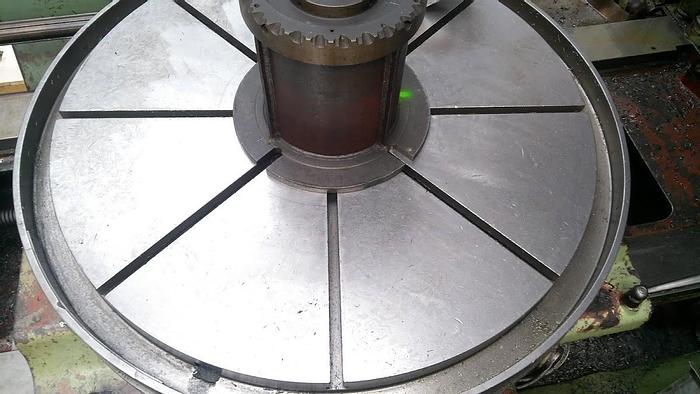

Table surface diam. : 1500 mm,

The main motor power : 14 kW.
