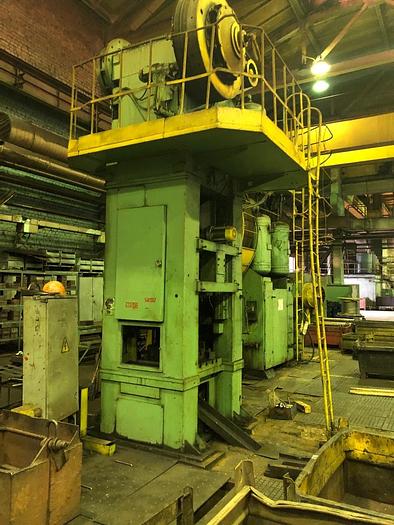

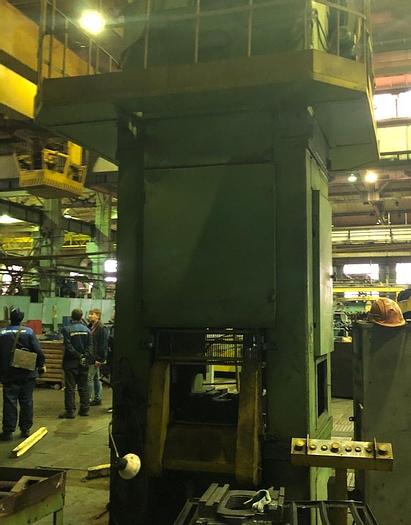

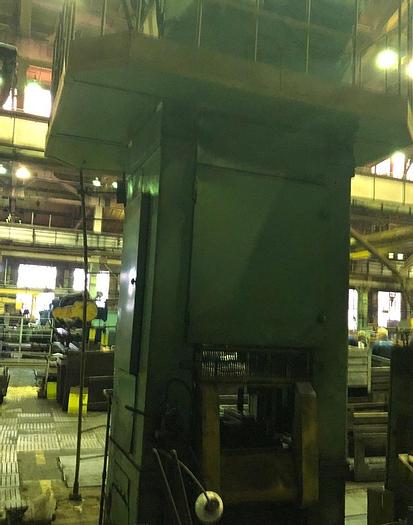

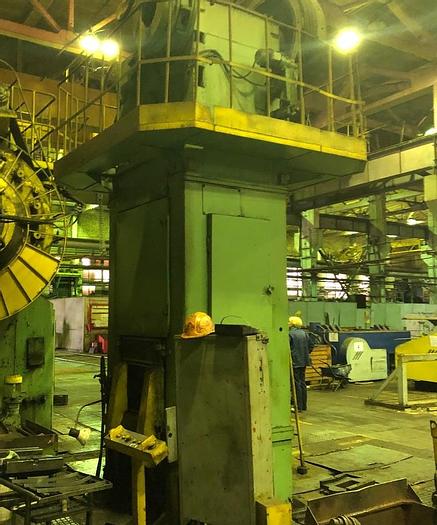

Press Trimming KG9534

Capacity : 250 tons,

Ram stroke : 320 mm,

Stroke per minutes : 32,

Bed size : 800 x 800 mm,

Frequency of slider motions : 1/min 45,

Shut height : 390 mm,

Bolster plate-to-ram adjustment stroke : 140 mm,

Regulation of distance between table and slider : 140 mm,

Bed dimensions : 800 x 800 mm,

Bed opening dimensions : 500 x 500 mm,

Ram dimensions : 670 x 630 mm,

Bolster plate thickness : 140 mm,

Motion : 530 mm,

Main drive motor power : 25,0 kW,

Overall dimensions(length x width x height) : 2400 x 2500 x 4850 mm,

Height above floor level: 5180 mm,

Weight of the machine: 18.6 tons.
