Lathe Vertical Turning CNC VTC-110R

CNC Vertical Lathe with C Axis ( Turn Mill )

Max Swing on Bed : 1250 mm,

Max Workpiece Swing : 1100 mm,

Max Workpiece Height : 850 mm,

Chuck Size : 800 mm ( 32” ),

Spindle speed : 10 ~ 800 Rpm,

Main Motor : 45/55kw,

12 A.T.C

Table Indexing Degree : 2.5 Degree,

Rapid feed : X,Z 12m/min,

Spindle Torque : 512 kgf.m,

With Scale & Chip conveyor,.

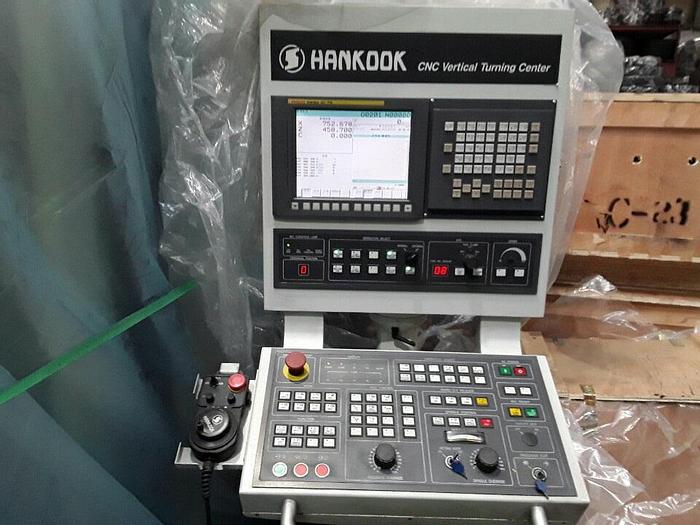

CNC Controller : Fanuc -0i TD
