Lathe Vertical Turning CNC Hankook

System: Fanuc 31i-MB

Max. swing: 12,000 mm

Max. turning diameter: 12000 mm,

Max. turning height: 6000 mm,

Max load: 400 tons,

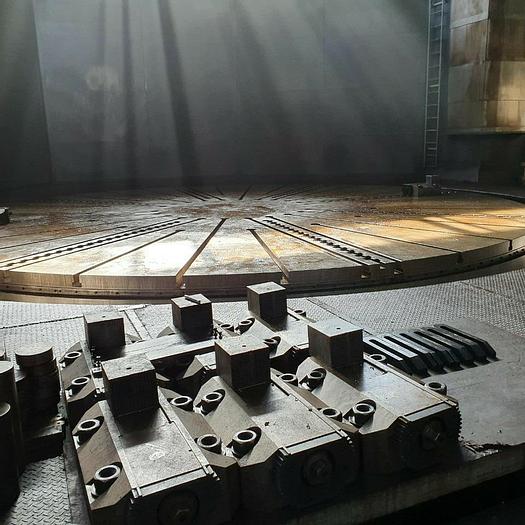

(Table)

Table diameter: 9000 mm

Max. cutting force: 16000 kg

Max. torque :1,200,000 N.m

Table speed 0.6 - 16 rpm(High)/ 0.2~4.2(Low)

Number of table speed range: Auto 2 stages

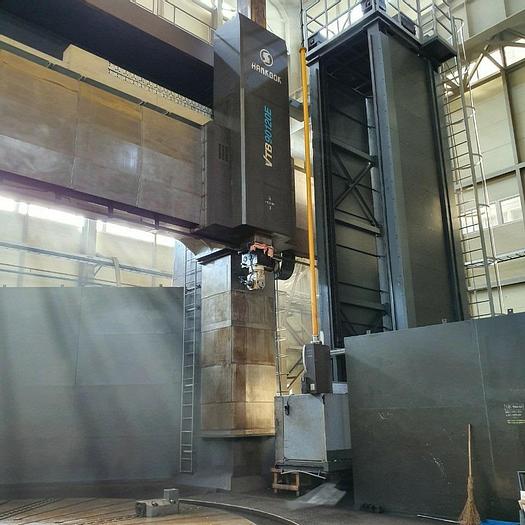

(Ram head)

Number of tool: 1

Tool size: 50 x50

Section dimension of square ram: 500 x 500 mm,

(Travel and feed)

X-axis traverse(ram vertical): 3000 mm,

Z-axis traverse(saddle cross): 6915 mm,

X-axis traverse(cross rail vertical ): 4500 mm,

X-axis: Max. 6000mm/min,

Z-axis: Max. 6000mm/min,

X-axis rapid : 6000mm/min,

Z-axis rapid : 6000mm/min,

W-axis rapid : 1000mm/min,

(Motor)

Table motor: AC 100kW X 2units,

X-axis servo motor: AC 16kW,

Z-axis servo motor: AC 14kW,

W-axis servo motor: AC 14kW x 2unis,

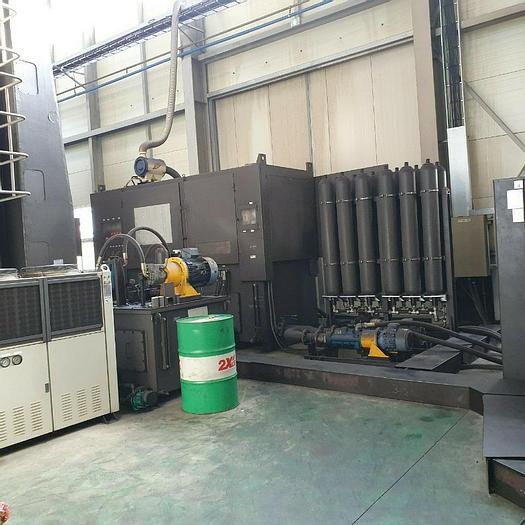

Hydraulic pump motor: 30kW,

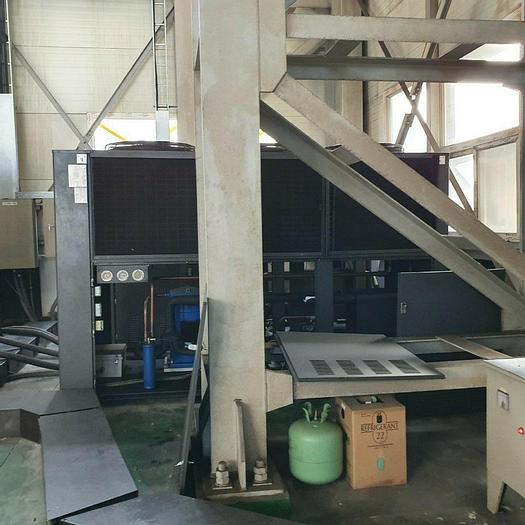

Hydraulic cooling device:1.45kW,

Hydrostatic oil cooling device:30kW,

Guide way lube pump motor:75kW /75kW,

High pressure coolant pump motor:3kW,

High pressure coolant feed pump motor:0.9W,

Chip conveyor motor: 1.5kW,

(Dimensions)

17,000mm(W) x14,000mm(L) x 17,500mm(H),

Machine weight: Approx. 600ton.
