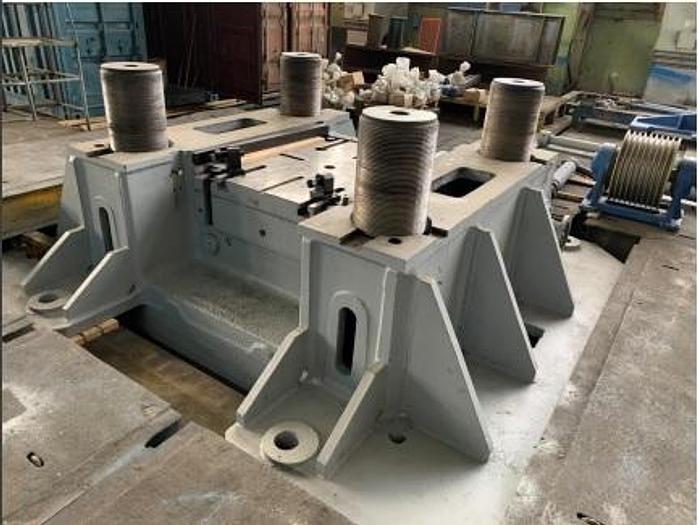

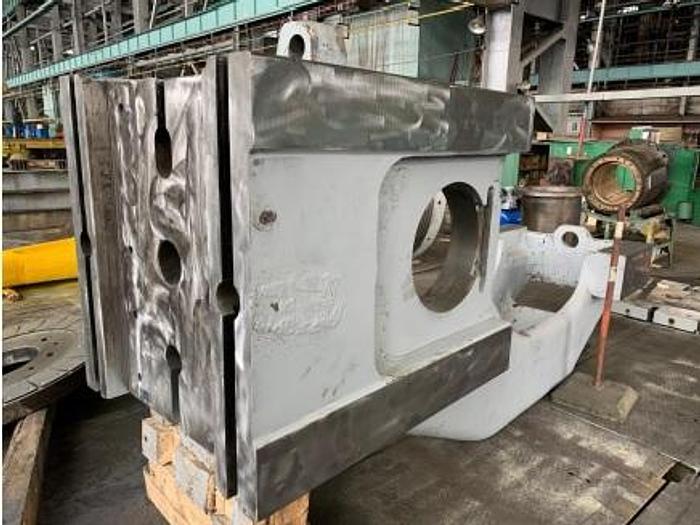

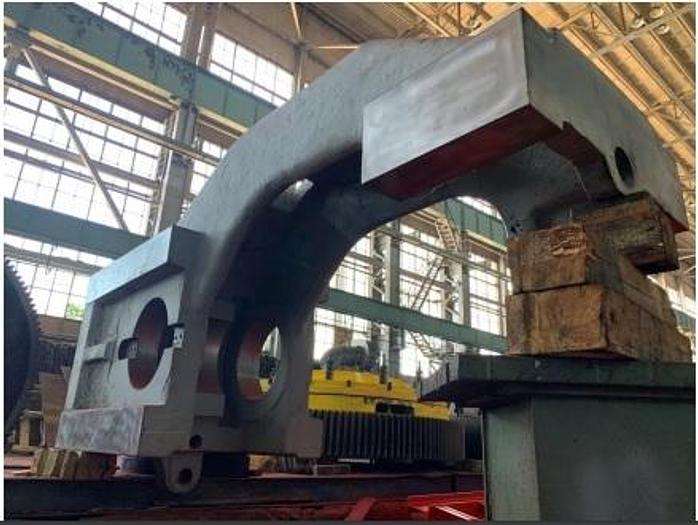

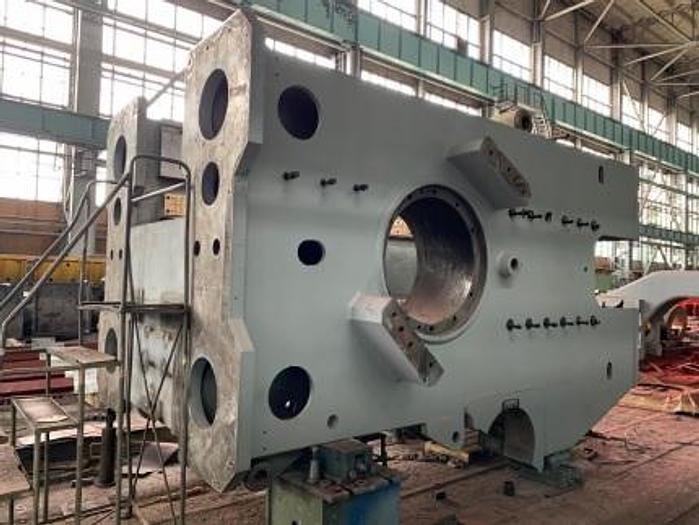

Press Hot Forging K8544

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerTMP Voronezh Russia
ModelK8544
ConditionUsed
Stock NumberMA1206
Item conditionGood Condition
Capacity tons2500

Description

Capacity : 2500 tons,

Shut height : 890 mm,

Adjustable distance between table and slide : 10 mm,

Dimensions of openings in L. H. press side wall :

-Height : 1000 mm,

-Width : 720 mm,

Table working surface :

-L-to-R: 1200 mm,

-F-to-B: 1400 mm,

Slide dimensions :

-L-to-R: 1070 mm,

-F-to-B: 1120 mm,

Slide stroke : 350 mm,

Slide strokes per minute (continuous) : 70,

Number of pitmans : 2,

Number of drive stages : 2,

Top ejector mechanism :

-Stroke: 50 mm,

-Capacity: 63 kN,

Bottom ejector mechanism :

-Stroke: 50 mm,

-Capacity: 100 kN,

Main drive motor power : 90 kW,

Overall dimensions :

-L-to-R: 5585 mm,

-F-to-B: 3750 mm,

-Height above floor level : 6800 mm,

Mass (approximately): 183-5 tons.
