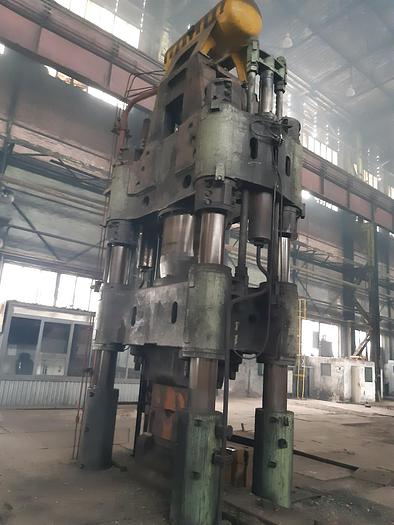

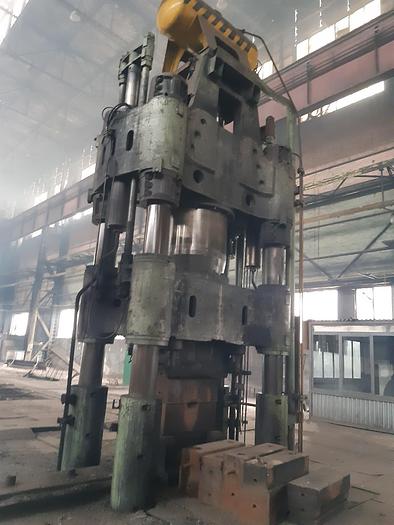

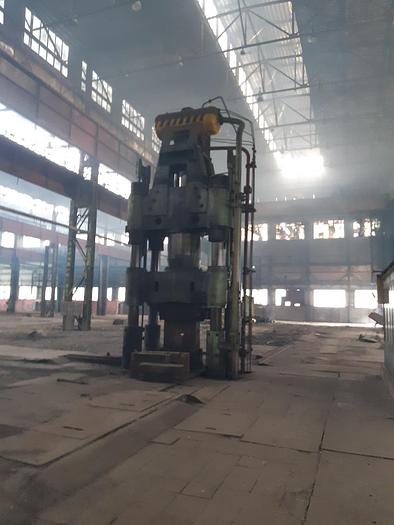

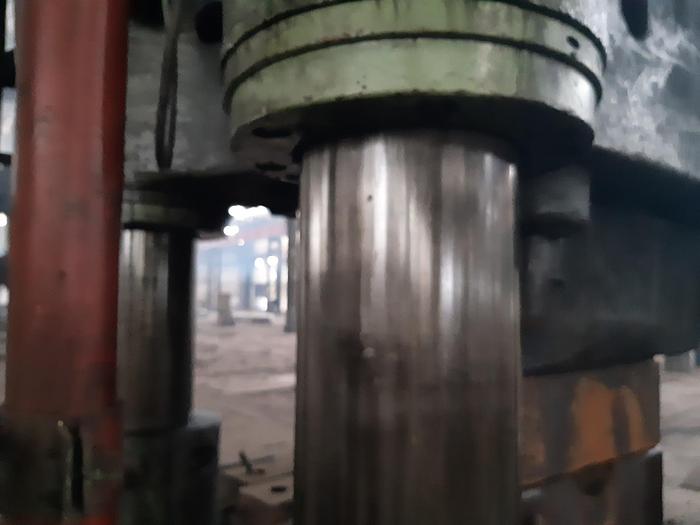

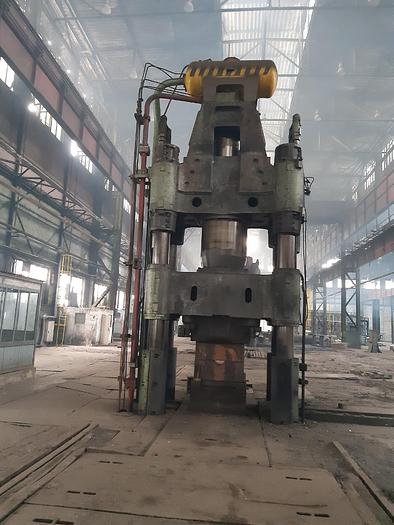

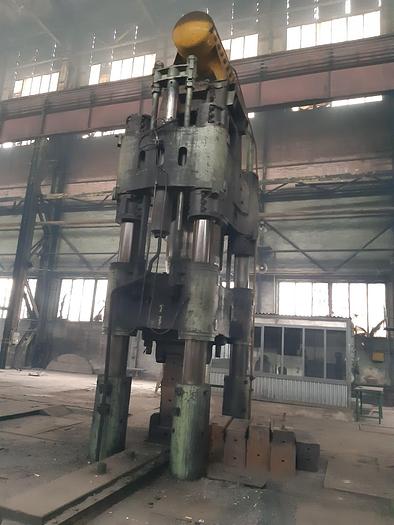

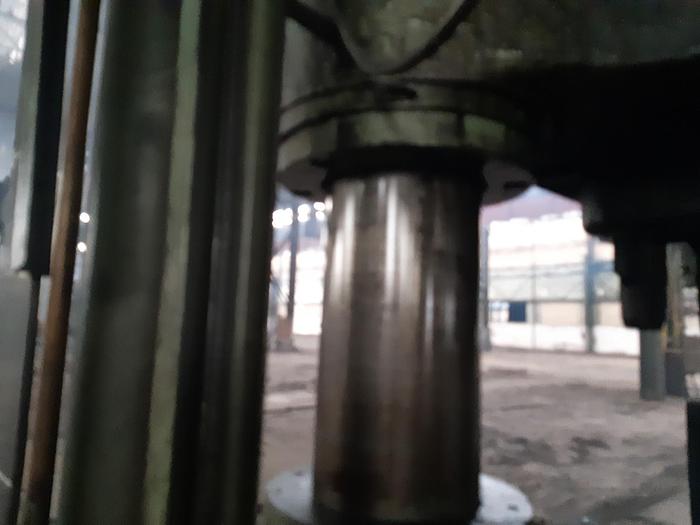

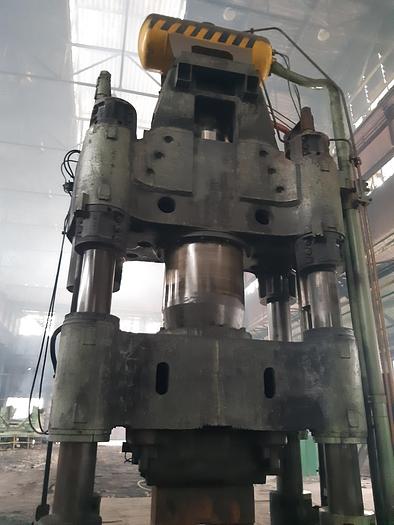

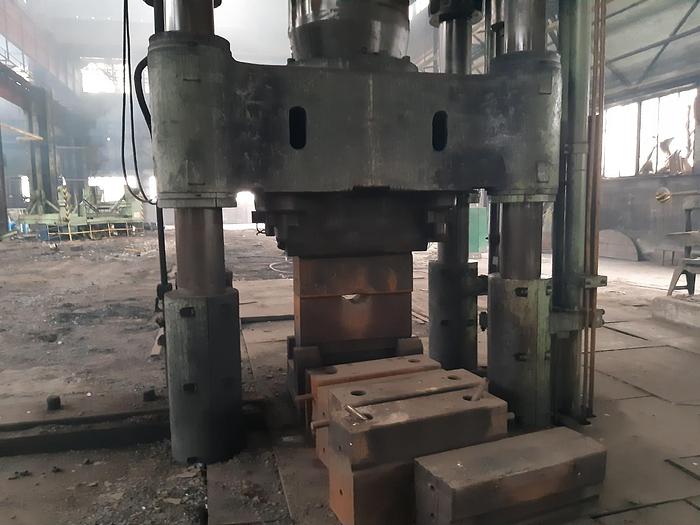

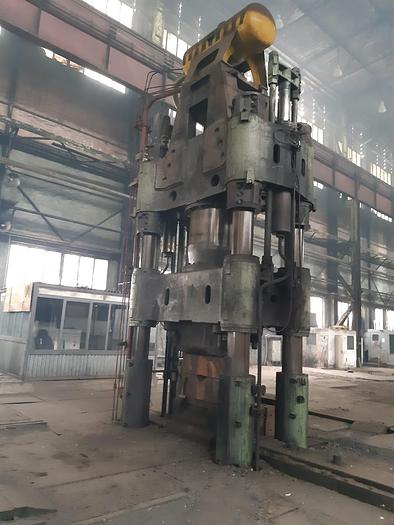

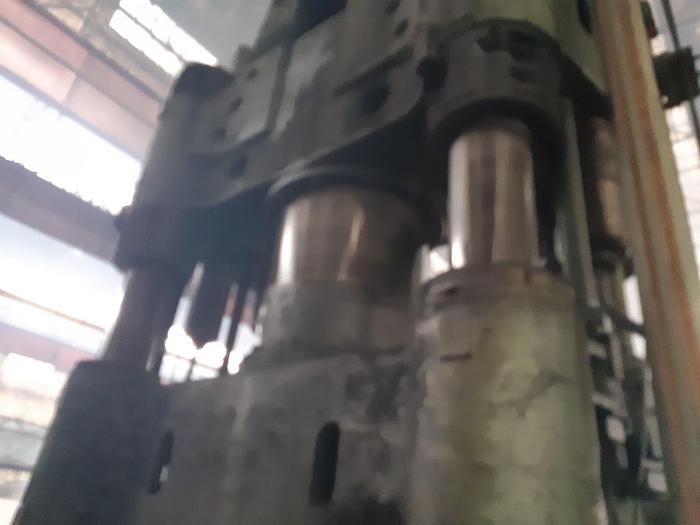

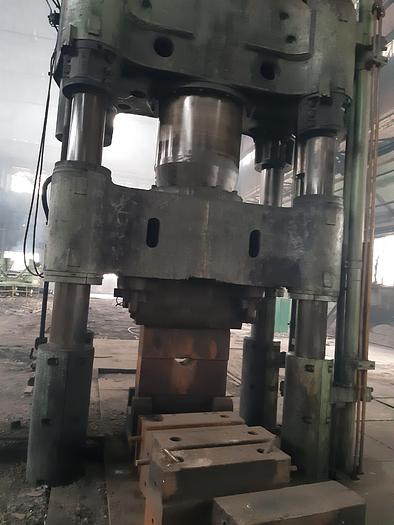

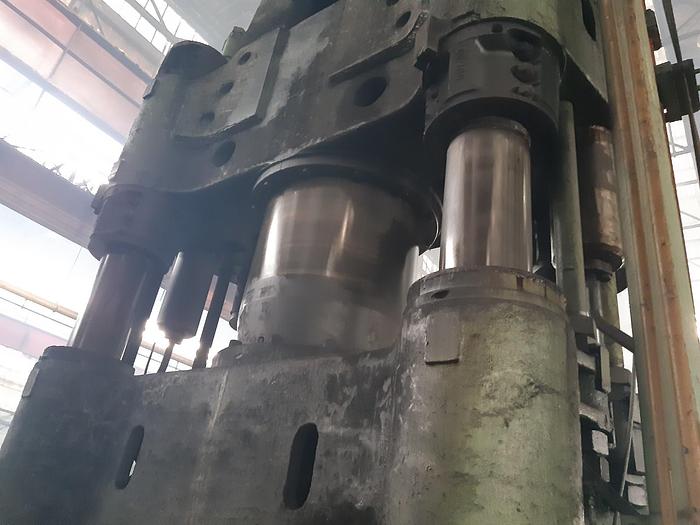

Press Forging Open Die Hydraulic CKV1000

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerZdas
ModelCKV1000
Year2005
ConditionRefurbished
Stock NumberMA1207
Item conditionGood Condition
Capacity tons1000

Description

Nominal pressure : 10000 MP,

Forging capacity : 1000 tons

Maximum weight of ingot smith forged/upset : 10.3 /6.2 ton,

Output of press : weight of forgings produced per hour : 900 kg,

Number of stroke / length of stroke :

Standard : 18/100 min-1/mm,

Planishing : 40—50/35—40 min-1/mm,,

Smoothing : 80—100/10 min-1/mm,

Maximum ram stroke Z : 1/1250 mm,

Return force : 1600 Mp,

Width between stops on columns B x B1 : 2000 x 750 mm,

Column spacing C x D : 2500 x 1250 mm,

Dimensions of clamping surface : 1600 x 1250 mm,

Width between clamping surface H : 2500 mm

Width of top crosshead : 1250 mm,

Travel of longitudinal one-sided table : 2100 mm,

Travel of longitudinal double-sided table (in both directions) : 2100 mm,

Travel of traverse table : 2100 mm,

Working pressure of fluid : 250 kp/cm2,

Dimension of press :

Max. height above the floor : 8600 mm,

Maximum length of foundation : 16,100 mm,

Maximum width of foundation : 11,200 mm,

Weight of press :  200 tons

Total output of electromotors for accumulator station  : 780 kW.


The press is used for the production of forgings in a free manner from ingots up to a weight of 6 tons and for the stamping of ingots up to a weight of 1.7 tons and forging rings on a mandrel.

Overhaul in 2005. Press is supplied without hydraulic system, pump motors etc.
