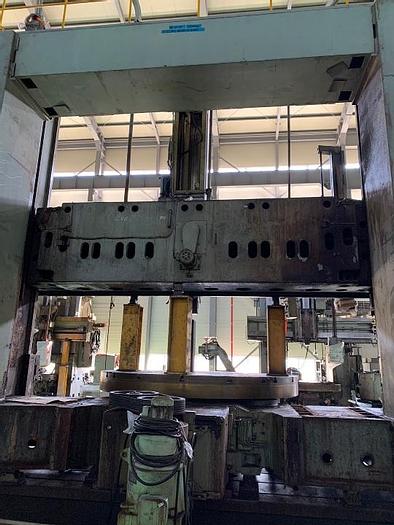

Lathe Vertical Turning CNC TMD-30/45

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerOM
ModelTMD-30/45
Year1982
ConditionUsed
Stock NumberMA1220
Item conditionGood Condition
Capacity tons4500

Description

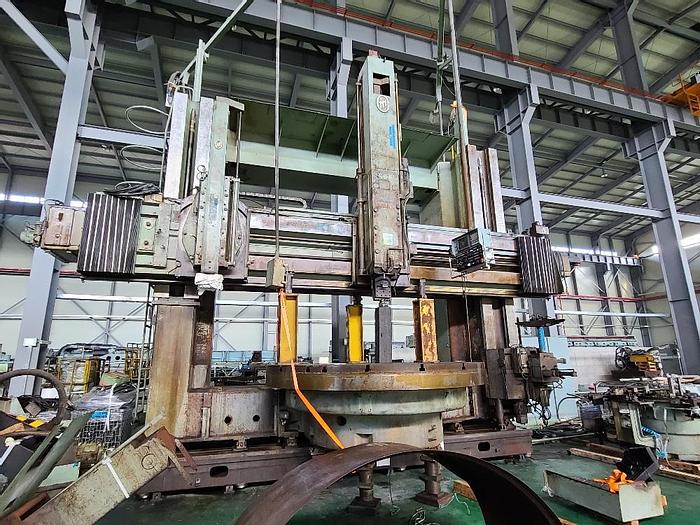

OM Double Column CNC Vertical Lathe Model TMD-30/45 RH55D-NC

Table Diameter : 3000 mm,

Max Diameter of Workpiece : 4500 mm,

Max height of Workpiece : 2500 mm,

Max weight of Workpiece : 30 Ton,

Table Speed : 0.45 ~ 30 RPM,

Cross Rail from bottom line to the surface of table : Max 2800 / Min1,200 mm,

Tool Post travel , Up and Down ( Right side ) : 1500 mm,

Tool Post Travel , From Left to Right ( Right side ) : 2615 mm,

Tool Post travel , Up and Down ( Left side ) : 1100 mm,

Tool Post Travel , From Left to Right ( Left side ) : 2275 mm,

Main Motor : DC55KW,

Machine Dimension ( W x L x H ) : 13000 x 7000 x 7905 mm,

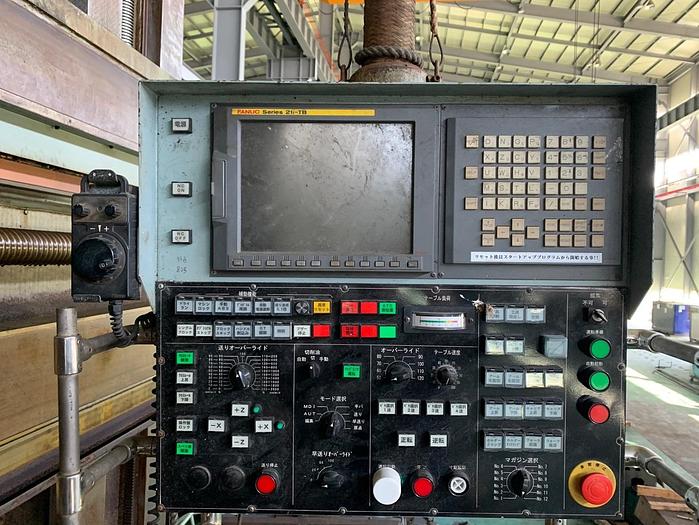

CNC Controller : Fanuc 21TB.
